Feed-through terminal-phase, 150mm², 1000V/309A, screw connection

KXB150LH

  • Distri­bu­tion systems

Feed-through terminal-phase, 150mm², 1000V/309A, screw connection KXB150LH

EAN
3250613941864
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

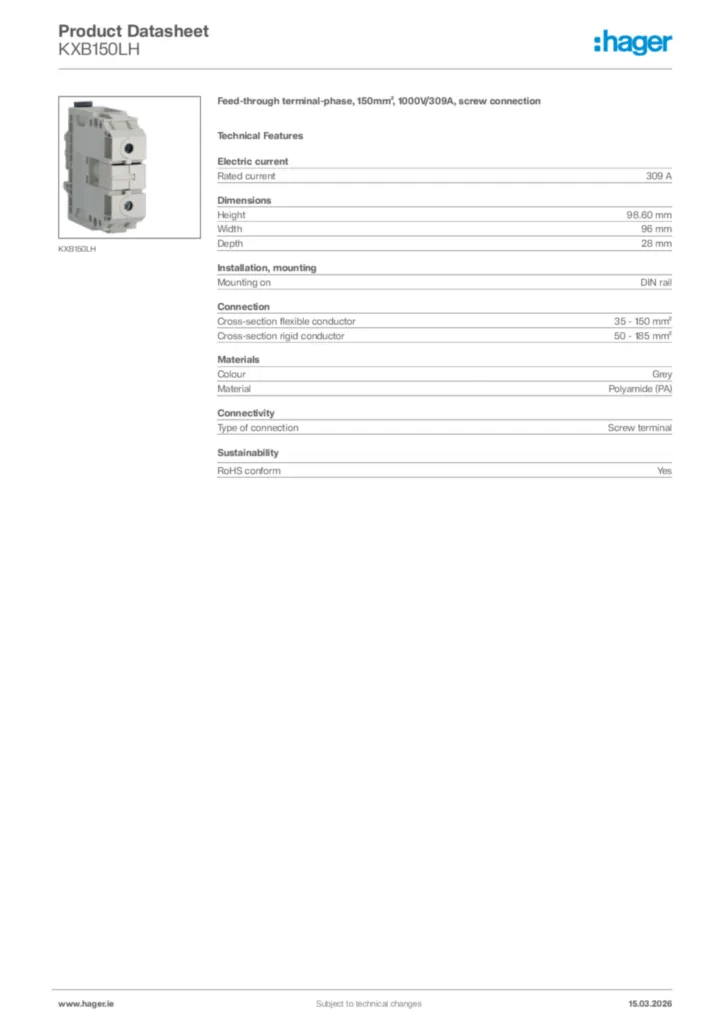

Download the data sheet

Complete your system

Optional accessories

  • Component terminal block 1 products available
  • Labelling material 1 products available

Complete your system

  • Component terminal block
  • Labelling material
  • KWB02

    End bracket until 150qmm²
    0.00 €  / *
    Add to a list
    Add to a list
  • KWL002

    Marking strip 1-100 to 25 strips
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Elec­tric current
  • Rated current
    309 A
Dimen­sions
  • Height
    98.60 mm
  • Width
    96 mm
  • Depth
    28 mm
Install­a­tion, mounting
  • Mounting on
    DIN rail
Connec­tion
  • Cross-sec­tion flex­ible conductor
    35 - 150 mm²
  • Cross-sec­tion rigid conductor
    50 - 185 mm²
Mater­ials
  • Colour
    Grey
  • Material
    Poly­amide (PA)
Connectivity
  • Type of connec­tion
    Screw terminal

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration KXB150LH (english)
PDF
103,10 kB
RoHS declaration KXB150LH (english)
PDF
103,59 kB
