Feed-through terminal-phase, 35mm², 400V/125A, screw connection KXA35L
EAN
3250613941956
Packaging
20 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Labelling material 1 products available -
Endplate and partition plate 1 products available -
Component terminal block 2 products available
Compatible products
-
Referenced by 1 products available
Technical properties
Electric current
-
Rated current125 A
Dimensions
-
Height51.50 mm
-
Width58 mm
-
Depth16 mm
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor35 mm² max.
-
Cross-section rigid conductor50 mm² max.
Materials
-
ColourGrey
-
MaterialPolyamide (PA)
Connectivity
-
Type of connectionScrew terminal
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

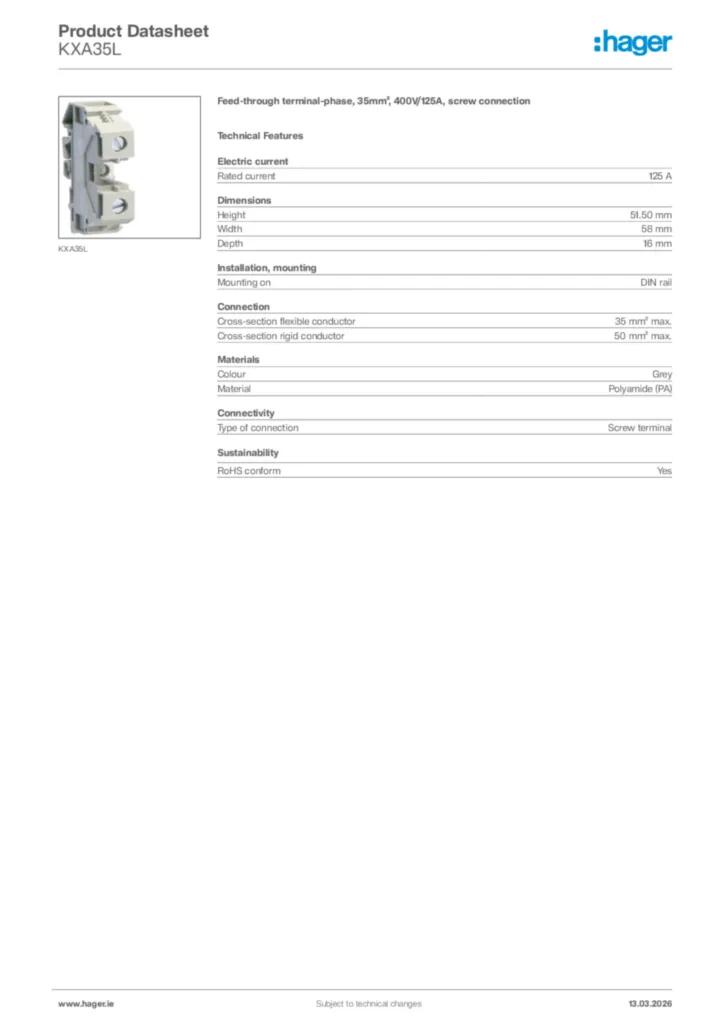

Product datasheet
Hager Product data sheet KXA35L
Feed-through terminal-phase, 35mm², 400V/125A, screw connection
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF194,57 kB
Declaration
Declaration of conformity International 2022-11-16
PDF265,19 kB
