Feed-through terminal-phase , 6mm², 1000V/41A, screw connection KXA06LH
EAN
3250613941833
Packaging
100 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Labelling material 1 products available -
Component terminal block 1 products available -
Cross-connector for terminal block 2 products available
Technical properties
Electric current
-
Rated current41 A
Dimensions
-
Height53.50 mm
-
Width48 mm
-
Depth8 mm
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor0.5 - 6 mm²
-
Cross-section rigid conductor0.5 - 6 mm²
Materials
-
ColourGrey
-
MaterialPolyamide (PA)
Connectivity
-
Type of connectionScrew terminal
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

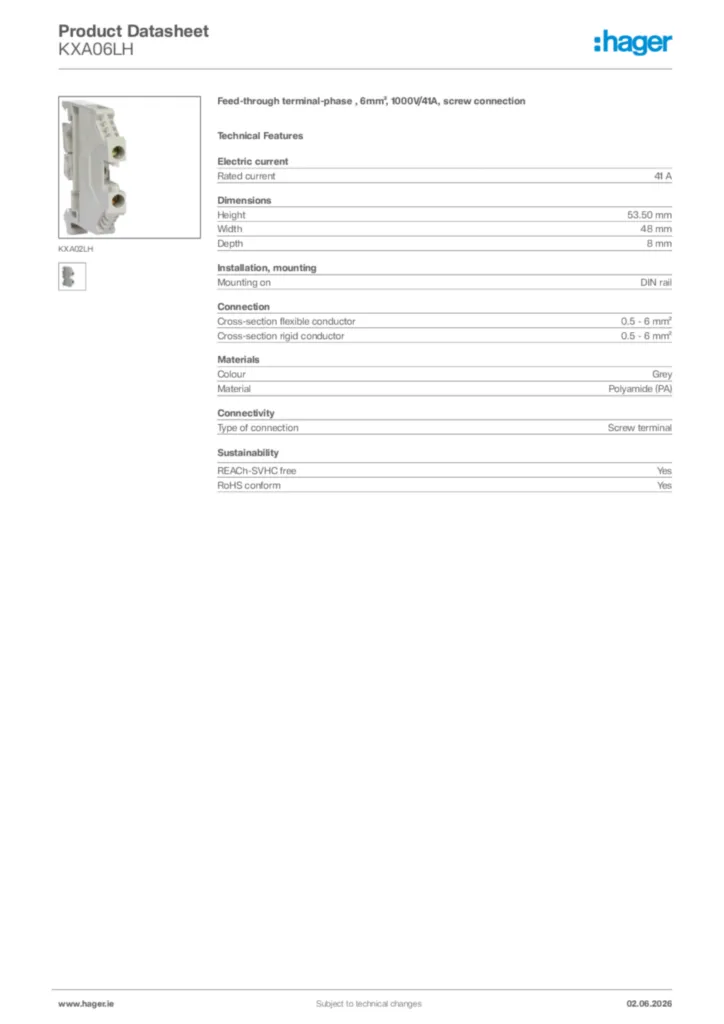

Hager Product data sheet KXA06LH
Feed-through terminal-phase , 6mm², 1000V/41A, screw connection
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF194,57 kB
Declaration
Declaration of conformity International 2022-11-16
PDF265,19 kB
