Brass busbar terminal 100A, 4pole, 2x 2,5-25² / 5x 1,5-16² per pole KJ100A
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Rail terminal bar 3 products available
Compatible products
-
Referenced by 18 products available
Referenced by
-
UD32A1Kit, universN, 450x500mm, for DIN rail terminal horizontal
-
KJ15NBSupplementary Neutral Bar 125A - 15 connection points
-
KJ07NB
Supplementary Neutral bar 100A - 7 connection points
-
UD41G2Kit, universN, 600x250mm, for modular devices 1x30module and DIN rail terminal
-
UD31A2Kit, universN, 450x250mm, for DIN rail terminal vertical
-
UD22A2Kit, universN, 300x500mm, for DIN rail terminal vertical
-
UD42A1Kit, universN, 600x500mm, for DIN rail terminal horizontal
-
UD41A1Kit, universN, 600x250mm, for DIN rail terminal horizontal
-
UD33A1Kit, universN, 450x750mm, for DIN rail terminal horizontal
-
UD41A2Kit, universN, 600x250mm, for DIN rail terminal vertical
-
UD31A1Kit, universN, 450x250mm, for DIN rail terminal horizontal
-
UD23A1Kit, universN, 300x750mm, for DIN rail terminal horizontal
-
UD22A1Kit, universN, 300x500mm, for DIN rail terminal, horizontal
-
UD21A1Kit, universN, 300x250mm, for DIN rail terminal horizontal
-
UD13A1Kit, universN, 150x750mm, for DIN rail terminal horizontal
-
UD12A1Kit, universN, 150x500mm, for DIN rail terminal horizontal
-
UD11A1Kit, universN, 150x250mm, for DIN rail terminal horizontal
-
UD21A2Kit, universN, 300x250mm, for DIN rail terminal vertical
Technical properties
Electric current
-
Rated current100 A
Architecture
-
Number of poles4
Dimensions
-
Height97 mm
-
Width71 mm
-
Depth44 mm
Capacity
-
Number of modules4
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

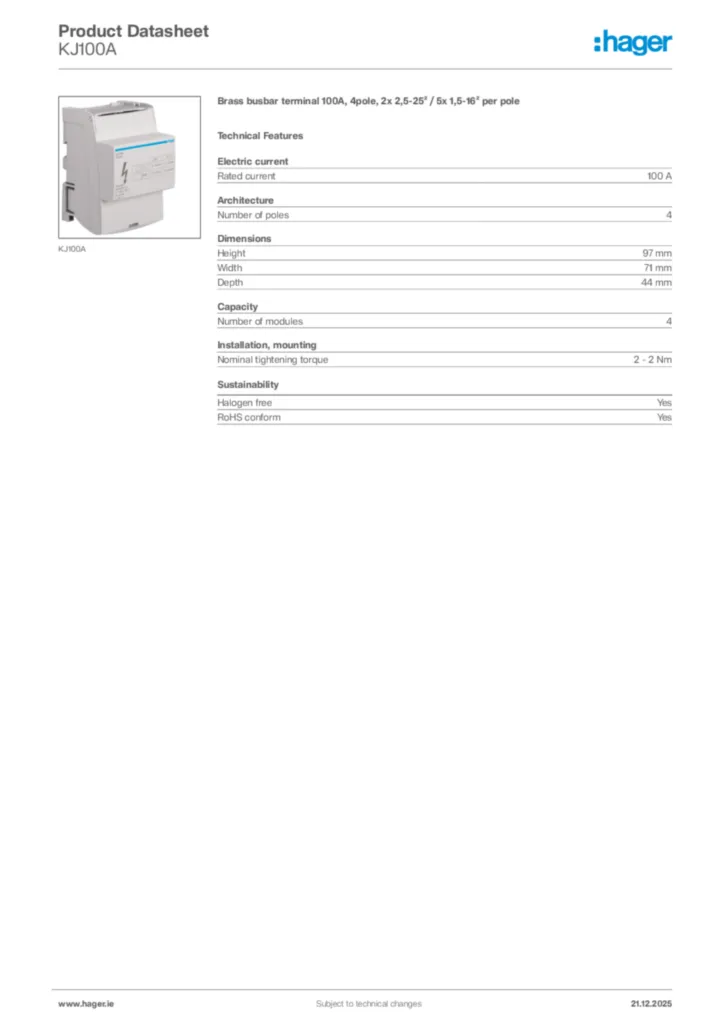

Hager Product data sheet KJ100A
Brass busbar terminal 100A, 4pole, 2x 2,5-25² / 5x 1,5-16² per pole
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF193,62 kB
