K96C - Busbar terminal 2,5mm²-35mm², for 12x5mm busbars, for copper conductors
K96C
Busbar terminal 2,5mm²-35mm², for 12x5mm busbars, for copper conductors

Busbar terminal 2,5mm²-35mm², for 12x5mm busbars, for copper conductors

K96C

  • Distri­bu­tion systems

Busbar terminal 2,5mm²-35mm², for 12x5mm busbars, for copper conductors K96C

EAN
4010330710704
Packaging
20 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • More products

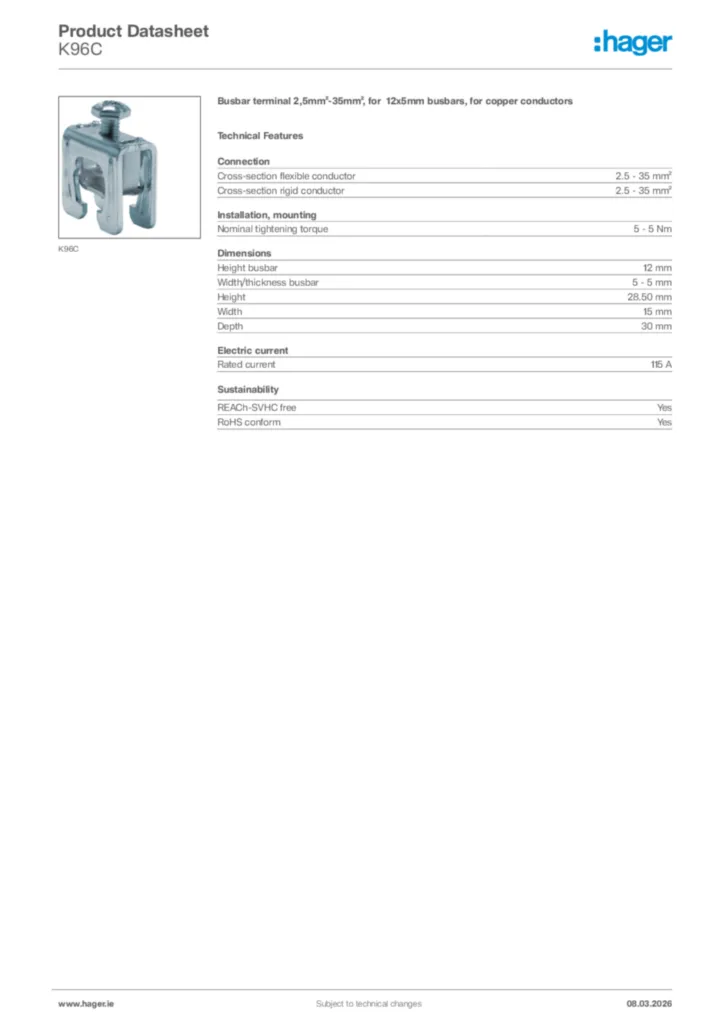

Download the data sheet

Technical properties

Connec­tion
  • Cross-sec­tion flex­ible conductor
    2.5 - 35 mm²
  • Cross-sec­tion rigid conductor
    2.5 - 35 mm²
Install­a­tion, mounting
  • Nominal tight­ening torque
    5 - 5 Nm
Dimen­sions
  • Height busbar
    12 mm
  • Width/thick­ness busbar
    5 - 5 mm
  • Height
    28.50 mm
  • Width
    15 mm
  • Depth
    30 mm
Elec­tric current
  • Rated current
    115 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration K96C (english)
PDF
103,10 kB
RoHS declaration K96C (english)
PDF
103,59 kB
