Moulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 630A 50kA FTC HMJ630DE

Name: HMJ630DE
Brand: Hager
SKU: HMJ630DE10

EAN

3250613201630

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

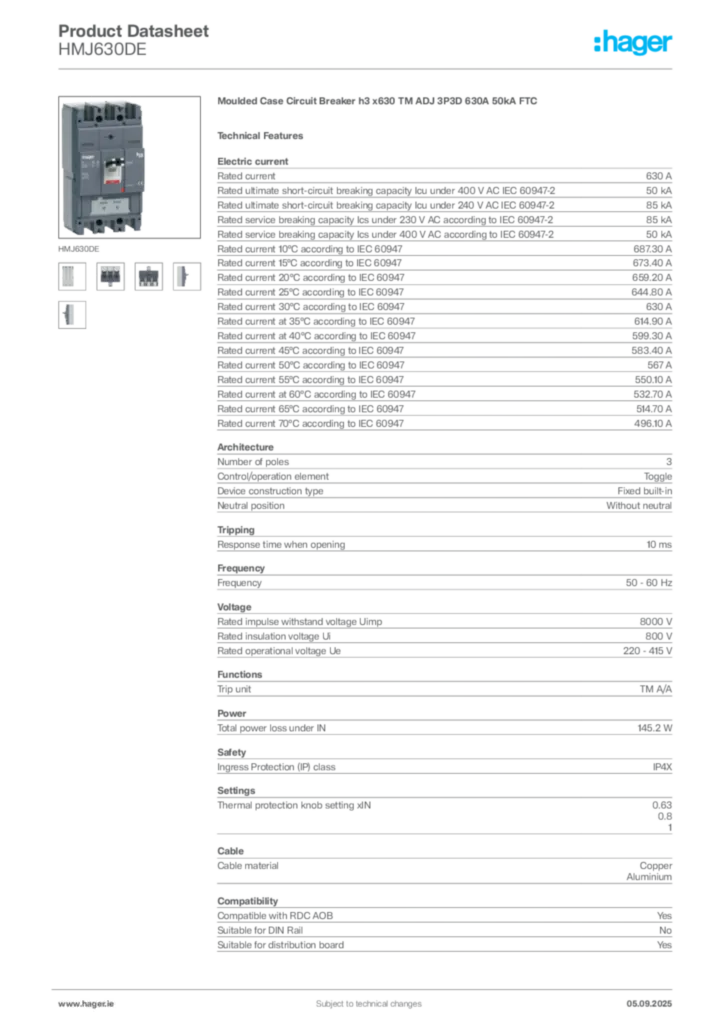

Download the data sheet

Complete your system

Under voltage coil 8 products available
Auxiliaries interlocking cable 2 products available
Shunt release 5 products available
Locking interlocking functions 3 products available
Auxiliaries contact block 4 products available
Connection Functions 6 products available

Technical properties

Rated current

630 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

50 kA
Rated current 10°C according to IEC 60947

687.30 A
Rated current 15°C according to IEC 60947

673.40 A
Rated current 20°C according to IEC 60947

659.20 A
Rated current 25°C according to IEC 60947

644.80 A
Rated current 30°C according to IEC 60947

630 A
Rated current at 35°C according to IEC 60947

614.90 A
Rated current at 40°C according to IEC 60947

599.30 A
Rated current 45°C according to IEC 60947

583.40 A
Rated current 50°C according to IEC 60947

567 A
Rated current 55°C according to IEC 60947

550.10 A
Rated current at 60°C according to IEC 60947

532.70 A
Rated current 65°C according to IEC 60947

514.70 A
Rated current 70°C according to IEC 60947

496.10 A

Number of poles

3
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Without neutral

Response time when opening

10 ms

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 415 V

Trip unit

TM A/A

Total power loss under IN

145.2 W

Ingress Protection (IP) class

IP4X

Thermal protection knob setting xIN

0.63, 0.8, 1

Cable material

Copper, Aluminium

Compatible with RDC AOB

Yes
Suitable for DIN Rail

No
Suitable for distribution board

Yes

Height

260 mm
Width

140 mm
Depth

150 mm
Downstream busbar: width, height, diameter screw (max.)

10 mm, 12 mm, 32 mm
Top stream busbar: width, height, diameter screw (max.)

10 mm, 12 mm, 32 mm

Mounting-/Connection Position

Front
Nominal tightening torque

18 - 18 Nm
Nominal tightening torque down terminal

18 - 18 Nm
Nominal tightening torque top terminal

18 - 18 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

REACh-SVHC free Yes
