Motorized transfer switch 4P 250A HIB425M
EAN
3250613191375
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available -
Accessories/spare parts for low-voltage switch technology 3 products available
Technical properties
Voltage
-
Rated operational voltage Ue380 - 415 V
Electric current
-
Rated current250 A
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC1164,000 W
Architecture
-
Number of poles4
-
Device construction typeFixed built-in
Compatibility
-
Suitable for DIN RailYes
-
Suitable for distribution boardYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-

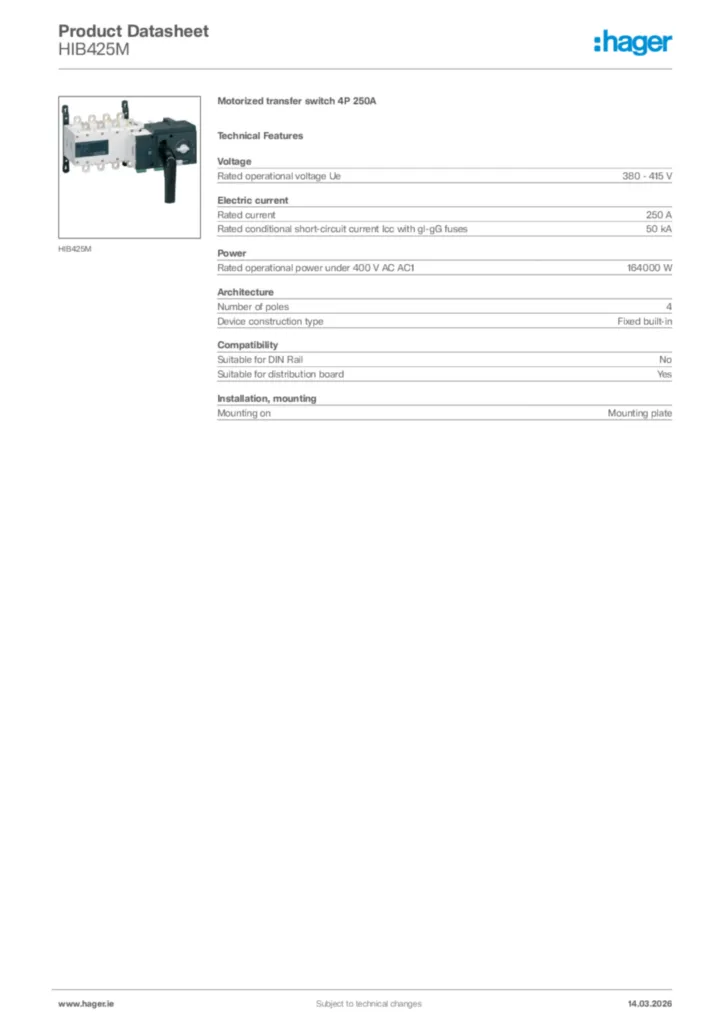

Product image
-
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-13
PDF573,94 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-12-04
PDF639,40 kB
More documentation
