    • Switching and protective devices
    • Circuit breaker and switches
    • Moulded case circuit breakers
    • HHS161NC
    catalog.pageproduct.product.info.ean
    3250613212858
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span
    Data Act Notice
    • Moulded case circuit breakers

    Moulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 160A 25kA CTC HHS161NC

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Moulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 160A 25kA CTC

    HHS161NC

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

    • Auxil­i­aries contact block 3 product.page.accessories.products-available
    • Auxil­i­aries data cable adaptor 8 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Auxil­i­aries contact block
    • Auxil­i­aries data cable adaptor
    • HXS122H

      AX/AL Energy - low level 125VAC 30VDC
      €0.00  / *
    • HXS121H

      AX/AL Auxiliary contact Energy 250VAC 125VDC
      €0.00  / *
    • HXS120H

      AX/AL ON/OFF & counting ON/OFF at Energy MCCB
      €0.00  / *
    • HTC370H

      CIP - Adaptor for h3+ length 10 m
      €0.00  / *
    • HTC360H

      CIP - Adaptor for h3+ length 5 m
      €0.00  / *
    • HTC350H

      CIP - Adaptor for h3+ length 3 m
      €0.00  / *
    • HTC340H

      CIP - Adaptor for h3+ length 1, 5 m
      €0.00  / *
    • HTC330H

      CIP - Adaptor for h3+ length 0, 5 m
      €0.00  / *
    • HTC150H

      ZSI - Adaptor for h3+ length 1, 20 m
      €0.00  / *
    • HTC140H

      CIP - 24 V Adaptor length 1, 20 m
      €0.00  / *
    • HTC130H

      OAC/PTA adaptor for h3+ length 1, 20 m
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Elec­tric current
    • Rated current IN
      160 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      25 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      35 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
      25 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
      6 kA
    • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
      35 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      35 kA
    • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
      35 kA
    • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
      25 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      25 kA
    • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
      25 kA
    • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
      6 kA
    • Rated current at 10°C according to IEC 60947
      160 A
    • Rated current at 15°C according to IEC 60947
      160 A
    • Rated current at 20°C according to IEC 60947
      160 A
    • Rated current at 25°C according to IEC 60947
      160 A
    • Rated current at 30°C according to IEC 60947
      160 A
    • Rated current at 35°C according to IEC 60947
      160 A
    • Rated current at 40°C according to IEC 60947
      160 A
    • Rated current at 45°C according to IEC 60947
      160 A
    • Rated current at 50°C according to IEC 60947
      160 A
    • Rated current at 55°C according to IEC 60947
      160 A
    • Rated current at 60°C according to IEC 60947
      160 A
    • Rated current at 65°C according to IEC 60947
      160 A
    • Rated current at 70°C according to IEC 60947
      150 A
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Left
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated oper­a­tional voltage Ue
      220 - 690 V
    Func­tions
    • Trip unit
      ENERGY
    Power
    • Power dissip­a­tion at IN
      27 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10,000
    • Number of mech­an­ical oper­a­tions
      40,000
    Install­a­tion, mounting
    • Nominal tight­ening torque
      6 - 6 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      6 - 70 mm²
    • Cross-sec­tion rigid conductor
      6 - 95 mm²
    Cover, door
    • Inter­lock­able
      catalog.pageproduct.attribute_boolean.yes
    Cable
    • Cable material
      Copper
    Compat­ib­ility
    • Compat­ible with RDC AOB
      catalog.pageproduct.attribute_boolean.no
    • Suit­able for DIN Rail
      catalog.pageproduct.attribute_boolean.no
    • Suit­able for distri­bu­tion board
      catalog.pageproduct.attribute_boolean.yes
    Data act compli­ance
    • Is gener­ating data
      catalog.pageproduct.attribute_boolean.yes
    • Data types
      Alarms, Basic inform­a­tion, Device energy manage­ment, Elec­trical meas­ure­ment, Detailed elec­trical meas­ure­ment, General diagnostics, Network diagnostics, Oper­a­tional state, Soft­ware diagnostics
    • Data formats
      MODBUS (RTU)
    • Estim­ated daily data volume
      < 1 KB
    • Real time data gener­a­tion
      catalog.pageproduct.attribute_boolean.yes
    • Data stored on device
      catalog.pageproduct.attribute_boolean.yes
    Dimen­sions
    • Height
      130 mm
    • Width
      120 mm
    • Depth
      97 mm
    Connectivity
    • Type of connec­tion
      Screw terminal
    Settings
    • Adjust­ment range short-term delayed short-­cir­cuit release
      94.5 - 1,600.0 A
    Elec­trical protec­tion
    • Long-­time over­load protec­tion (ltd): delay (tr)
      0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
    • Short-­time protec­tion (std): current (Isd)
      1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
    • Short-­time protec­tion (std): delay (tsd)
      50 ms, 100 ms, 200 ms, 300 ms, 400 ms
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration HHS161NC
    PDF
    RoHS report HHS161NC
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

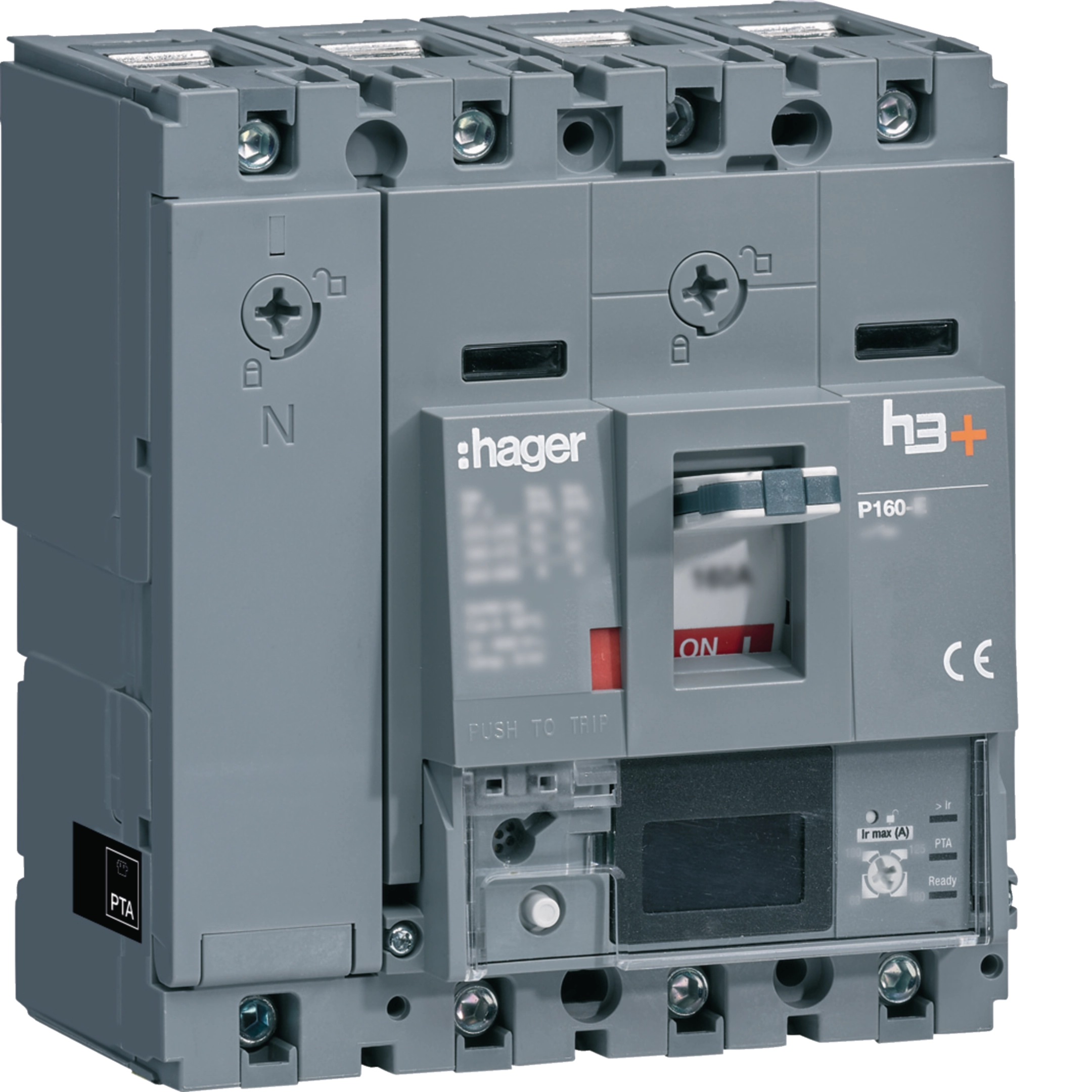

      catalog.pageproduct.title_product_image.div HHS161NC
