            HHS100NC - Moulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 25kA CTC
            HHS100NC - Moulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 25kA CTC

            Moulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 25kA CTC

            HHS100NC

            HHS100NC - Moulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 25kA CTC
            HHS100NC - Moulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 25kA CTC
            • Switching and protective devices

            Moulded Case Circuit Breaker h3+ P160 Energy 3P3D 100A 25kA CTC HHS100NC

            EAN
            3250613212711
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products

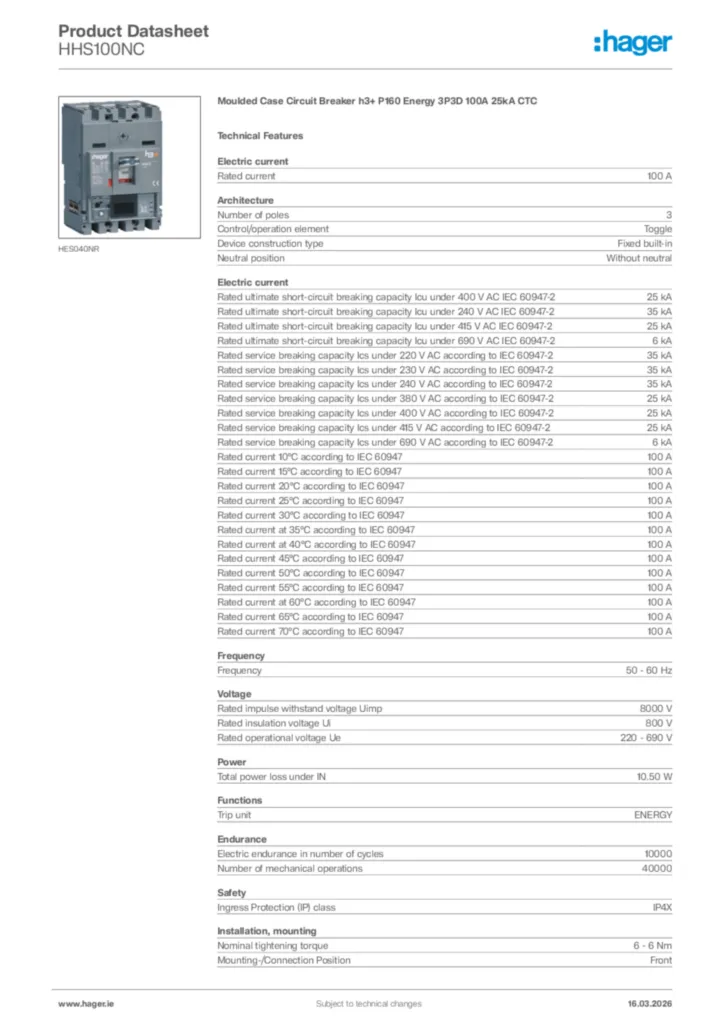

            Download the data sheet

            Complete your system

            Optional accessories

            • Auxil­i­aries data cable adaptor 9 products available
            • Auxil­i­aries contact block 3 products available

            Complete your system

            • Auxil­i­aries data cable adaptor
            • Auxil­i­aries contact block
            • HTC130H

              OAC/PTA adaptor for h3+ length 1,20 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC140H

              CIP - 24 V Adaptor length 1,20 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC150H

              ZSI - Adaptor for h3+ length 1,20 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC160H

              NSP cable adaptor length 1,20 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC330H

              CIP - Adaptor for h3+ length 0,5 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC340H

              CIP - Adaptor for h3+ length 1,5 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC350H

              CIP - Adaptor for h3+ length 3 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC360H

              CIP - Adaptor for h3+ length 5 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HTC370H

              CIP - Adaptor for h3+ length 10 m

              0.00 €  / *
              Add to a list
              Add to a list
            • HXS120H

              AX/AL Energy Counter

              0.00 €  / *
              Add to a list
              Add to a list
            • HXS121H

              AX/AL Auxiliary contact Energy 250VAC 125VDC

              0.00 €  / *
              Add to a list
              Add to a list
            • HXS122H

              AX/AL Energy - low level 125VAC 30VDC

              0.00 €  / *
              Add to a list
              Add to a list

            Technical properties

            Elec­tric current
            • Rated current
              100 A
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
              25 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
              35 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
              25 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
              6 kA
            • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
              35 kA
            • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
              35 kA
            • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
              35 kA
            • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
              25 kA
            • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
              25 kA
            • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
              25 kA
            • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
              6 kA
            • Rated current 10°C according to IEC 60947
              100 A
            • Rated current 15°C according to IEC 60947
              100 A
            • Rated current 20°C according to IEC 60947
              100 A
            • Rated current 25°C according to IEC 60947
              100 A
            • Rated current 30°C according to IEC 60947
              100 A
            • Rated current at 35°C according to IEC 60947
              100 A
            • Rated current at 40°C according to IEC 60947
              100 A
            • Rated current 45°C according to IEC 60947
              100 A
            • Rated current 50°C according to IEC 60947
              100 A
            • Rated current 55°C according to IEC 60947
              100 A
            • Rated current at 60°C according to IEC 60947
              100 A
            • Rated current 65°C according to IEC 60947
              100 A
            • Rated current 70°C according to IEC 60947
              100 A
            Archi­tec­ture
            • Number of poles
              3
            • Control/­op­er­a­tion element
              Toggle
            • Device construc­tion type
              Fixed built-in
            • Neutral posi­tion
              Without neutral
            Frequency
            • Frequency
              50 - 60 Hz
            Voltage
            • Rated impulse with­stand voltage Uimp
              8,000 V
            • Rated insu­la­tion voltage Ui
              800 V
            • Rated oper­a­tional voltage Ue
              220 - 690 V
            Func­tions
            • Trip unit
              ENERGY
            Power
            • Total power loss under IN
              10.50 W
            Endur­ance
            • Elec­tric endur­ance in number of cycles
              10,000
            • Number of mech­an­ical oper­a­tions
              40,000
            Install­a­tion, mounting
            • Nominal tight­ening torque
              6 - 6 Nm
            • Mount­ing-/­Con­nec­tion Posi­tion
              Front
            Safety
            • Ingress Protec­tion (IP) class
              IP4X
            Connec­tion
            • Cross-sec­tion flex­ible conductor
              6 - 70 mm²
            • Cross-sec­tion rigid conductor
              6 - 95 mm²
            Cover, door
            • Inter­lock­able
              Yes
            Cable
            • Cable material
              Copper
            Compat­ib­ility
            • Compat­ible with RDC AOB
              No
            • Suit­able for DIN Rail
              No
            • Suit­able for distri­bu­tion board
              Yes
            Dimen­sions
            • Height
              130 mm
            • Width
              90 mm
            • Depth
              97 mm
            Connectivity
            • Type of connec­tion
              Screw terminal
            Settings
            • Adjust­ment range short-term delayed short-­cir­cuit release
              60 - 1,000 A
            Elec­trical protec­tion
            • Long-­time over­load protec­tion (ltd): delay (tr)
              0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
            • Short-­time protec­tion (std): current (Isd)
              1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
            • Short-­time protec­tion (std): delay (tsd)
              50 ms, 100 ms, 200 ms, 300 ms, 400 ms
            • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
              3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15

            Environmental value

            We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

            Certifications and documents

            REACH declaration HHS100NC (english)
            PDF
            103,34 kB
            RoHS-declaration 2023-10-20 (english)
            PDF
            33,38 kB

            Downloads

            • Product image

              Image HHS100NC  | Hager

              Product Image HHS100NC

            • STEP files

              Image CAD file for MCCB 160A 3P  | Hager

              CAD file for MCCB 160A 3P

              STEP files International 2023-11-24

              STP
              886,39 kB
            • Declaration of conformity

              Image Declaration  | Hager

              Declaration

              Declaration of conformity International 2022-02-01

              PDF
              300,00 kB
            More documentation

            Discover more of this product range

              5
            • 1
              HDA014Z - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  16A 18kA CTC
              HDA014Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 18kA CTC
            • 2
              HDA016L - Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D  16A 18kA CTC
              HDA016L
              Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D 16A 18kA CTC
            • 3
              HDA017L - Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D  16A 18kA CTC
              HDA017L
              Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 16A 18kA CTC
            • 4
              HDA018Z - Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D  20A 18kA CTC
              HDA018Z
              Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 18kA CTC
            • 5
              HDA020L - Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D  20A 18kA CTC
              HDA020L
              Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D 20A 18kA CTC

            Products

            • Commercial Distribution
            • Modular Devices and Connection
            • Lighting Connection and Control
            • Residential Distribution
            • Wiring Accessories
            • References

            Solutions

            • Single house
            • Multi-residential
            • Office
            • Hotel
            • Other

            Support

            • FAQs
            • Contact us
            • Catalogues
            • Download center
            • Training
            • How-to videos

            Who we are

            We deliver safe and simple electrical solutions, from energy distribution to lighting control and wiring accessories systems for commercial and residential buildings. We want to make life on our planet safer, cleaner and more enjoyable. While being easy to work with, we remain by your side throughout the entire project, cooperating, collaborating and co-creating with you.



            More about us

            Fol­low us

              • Privacy
              • Cookies
              • Report a vulnerability
              • Hagergroup

            Hager Ltd, Unit M2 Furry Park Industrial Estate, Santry, Dublin D09 NY19, Ireland
