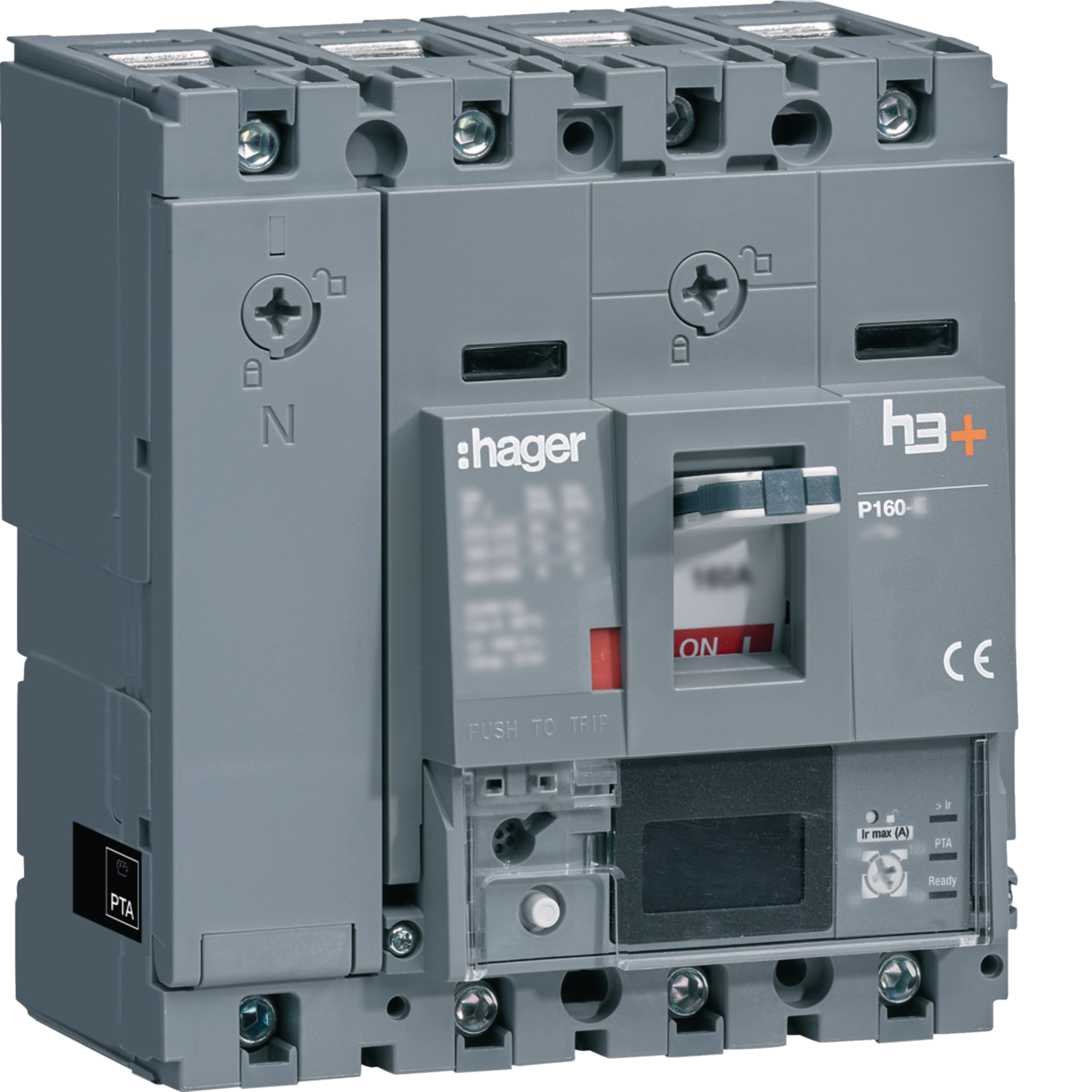

Moulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 40A 25kA CTC HHS041NC

Name: HHS041NC
Brand: Hager
SKU: HHS041NC20

EAN

3250613212612

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

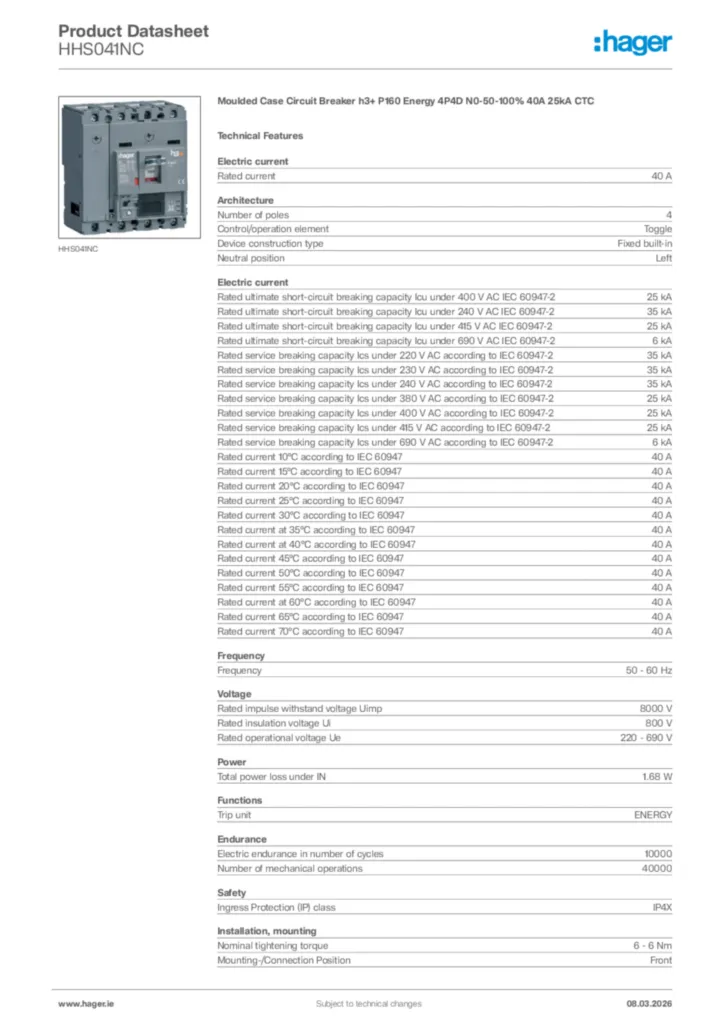

Download the data sheet

Complete your system

Auxiliaries contact block 3 products available
Auxiliaries data cable adaptor 8 products available

Technical properties

Rated current

40 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

6 kA
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2

35 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

35 kA
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2

35 kA
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-2

25 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

25 kA
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-2

25 kA
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-2

6 kA
Rated current 10°C according to IEC 60947

40 A
Rated current 15°C according to IEC 60947

40 A
Rated current 20°C according to IEC 60947

40 A
Rated current 25°C according to IEC 60947

40 A
Rated current 30°C according to IEC 60947

40 A
Rated current at 35°C according to IEC 60947

40 A
Rated current at 40°C according to IEC 60947

40 A
Rated current 45°C according to IEC 60947

40 A
Rated current 50°C according to IEC 60947

40 A
Rated current 55°C according to IEC 60947

40 A
Rated current at 60°C according to IEC 60947

40 A
Rated current 65°C according to IEC 60947

40 A
Rated current 70°C according to IEC 60947

40 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Left

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 690 V

Trip unit

ENERGY

Total power loss under IN

1.68 W

Electric endurance in number of cycles

10,000
Number of mechanical operations

40,000

Nominal tightening torque

6 - 6 Nm
Mounting-/Connection Position

Front

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

6 - 70 mm²
Cross-section rigid conductor

6 - 95 mm²

Interlockable

Yes

Cable material

Copper

Compatible with RDC AOB

No
Suitable for DIN Rail

No
Suitable for distribution board

Yes

Height

130 mm
Width

120 mm
Depth

97 mm

Type of connection

Screw terminal

Adjustment range short-term delayed short-circuit release

24 - 400 A

Long-time overload protection (ltd): delay (tr)

0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
Short-time protection (std): current (Isd)

1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
Short-time protection (std): delay (tsd)

50 ms, 100 ms, 200 ms, 300 ms, 400 ms
Instantaneous protection (li): dial setting coefficient

3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
