Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 125A 25kA CTC HHA123Z
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Terminal cover 1 product.page.accessories.products-available -
Auxiliaries cable adaptor 1 product.page.accessories.products-available
product.page.accessories.title-modal
catalog.pageproduct.tab_additional_title.link
Electric current
-
Rated current IN125 A
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-225 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-220 kA
-
Rated current at 10°C according to IEC 60947152.80 A
-
Rated current at 15°C according to IEC 60947149.60 A
-
Rated current at 20°C according to IEC 60947146.30 A
-
Rated current at 25°C according to IEC 60947143 A
-
Rated current at 30°C according to IEC 60947139.60 A
-
Rated current at 35°C according to IEC 60947136.10 A
-
Rated current at 40°C according to IEC 60947132.50 A
-
Rated current at 45°C according to IEC 60947128.80 A
-
Rated current at 50°C according to IEC 60947125 A
-
Rated current at 55°C according to IEC 60947121 A
-
Rated current at 60°C according to IEC 60947117 A
-
Rated current at 65°C according to IEC 60947112.70 A
-
Rated current at 70°C according to IEC 60947108.40 A
Architecture
-
Number of poles1
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui690 V
-
Rated operational voltage Ue220 - 240 V
Functions
-
Trip unitTM F/F
Power
-
Power dissipation at IN11.70 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations20,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Installation, mounting
-
Mounting-/Connection PositionFront
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN1, 1
Dimensions
-
Height130 mm
-
Width25 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN Railcatalog.pageproduct.attribute_boolean.yes
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

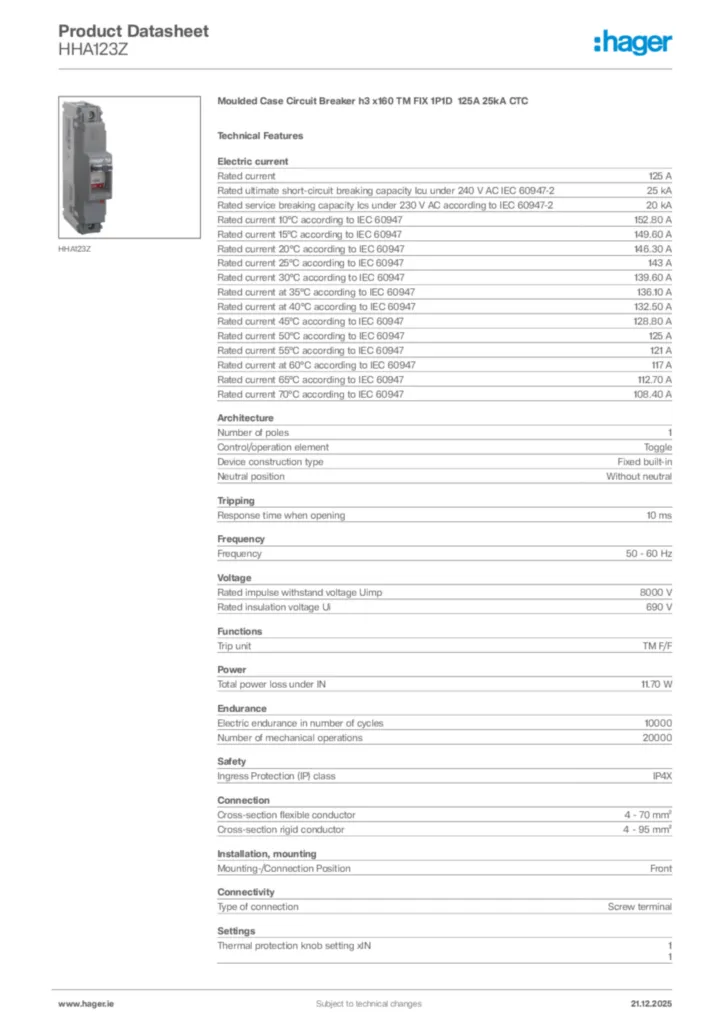

Hager Product data sheet HHA123Z
