Electronic earth leakage add-on block 4P 160A Idn adjustable, time delay HBA161H
EAN
3250613121099
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 4 products available
Referenced by
Technical properties
Electric current
-
Rated current160 A
-
Rated residual operating current Idn30 mA, 100 mA, 300 mA, 1000 mA, 3000 mA, 6000 mA
Architecture
-
Number of poles4
Safety
-
Residual current typeA HI
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6,000 V
Connection
-
Cross-section of input and output with screws, for massive conductors2.5 - 95.0 mm²
-
Cross-section of input and output with screws, for flexible conductors2.5 - 70.0 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

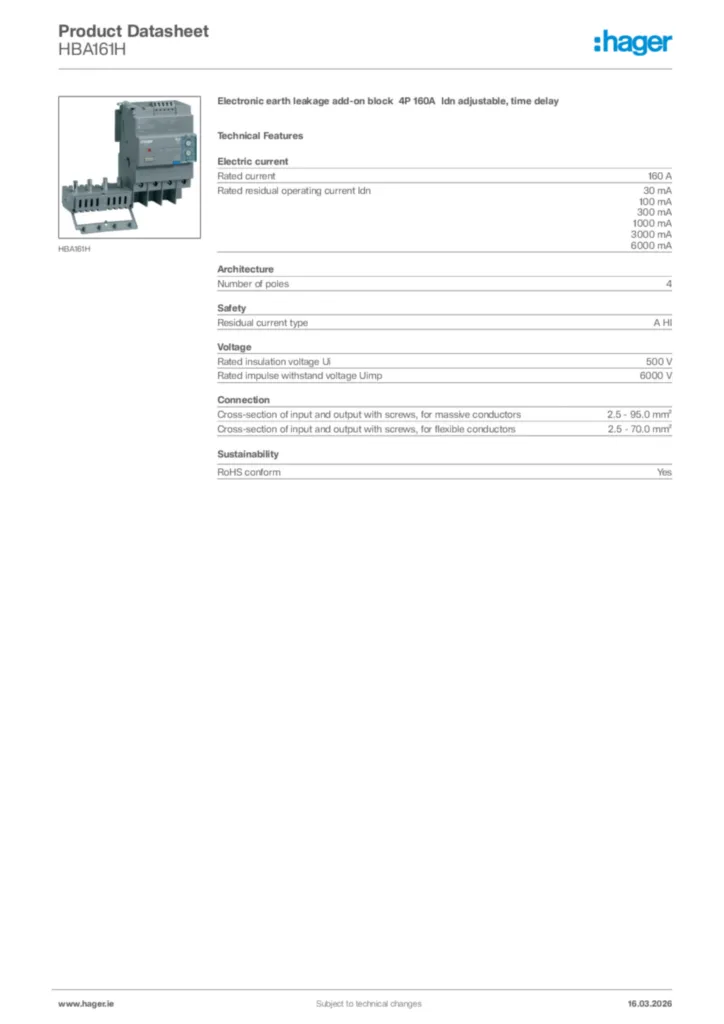

Hager Product data sheet HBA161H
Electronic earth leakage add-on block 4P 160A Idn adjustable, time delay
PDF -
Installation manual
Installation manual fr-FR, en-GB, de-DE, it-IT, es-ES, nl-NL, pt-PT, nn-NO, el-GR, pl-PL, ru-RU 2024-01-05
PDF5,77 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-08
PDF1,16 MB
