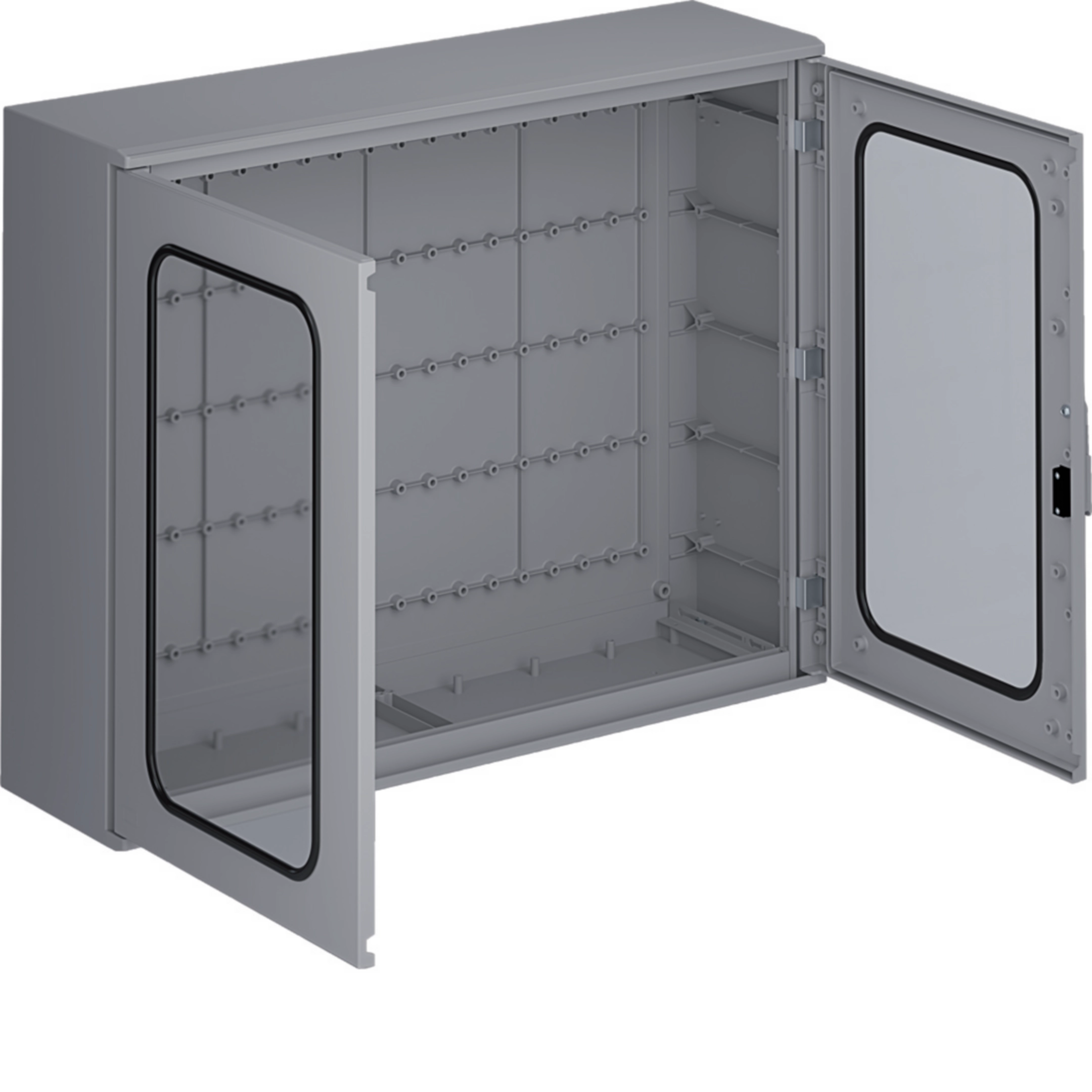

Polyester wall mounting enclosure, Orion.Plus, 850x1100x300 mm FL511B

EAN
3250610676110
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Polyester wall mounting enclosure, Orion.Plus, 850x1100x300 mm

FL511B

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (33)
    • Mounting plate for distri­bu­tion board 6 products available
    • Key for enclos­ures/cab­inets 1 products available
    • Heater for enclosure 4 products available
    • DIN rail 2 products available
    • Distrib­utor assembly for serial built-in device 2 products available
    • Door/­op­er­ating panel 3 products available

    Complete your system

    • Mounting plate for distri­bu­tion board
    • Key for enclos­ures/cab­inets
    • Heater for enclosure
    • DIN rail
    • Distrib­utor assembly for serial built-in device
    • Door/­op­er­ating panel
    • Blanking plate for enclosure
    • Mounting accessories
    • Insert for lock system
    • Vent­il­ator for enclosure
    • Screw mounting set
    • FL531E

      Steel mounting plate, Orion.Plus, 780x993 mm
      0.00 €  / *
    • FL571E

      Insulated mounting plate, Orion.Plus, 735x995 mm
      0.00 €  / *
    • FL610E

      Adjustable steel mounting plate, Orion.Plus, 145x354 mm
      0.00 €  / *
    • FL620E

      Adjustable steel mounting plate, Orion.Plus, 195x354 mm
      0.00 €  / *
    • FL630E

      Adjustable steel mounting plate, Orion.Plus, 295x354 mm
      0.00 €  / *
    • FL640E

      Adjustable steel mounting plate, Orion.Plus, 395x354 mm
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL466A

      Functional uprights, Orion.Plus, H800 mm
      0.00 €  / *
    • FL500E

      Clamp DIN rail, Orion.Plus, 24 M W500 mm
      0.00 €  / *
    • FL763E

      Kit system MCB, Orion.Plus, 150x500 mm
      0.00 €  / *
    • FL992B

      MCB complete kit, Orion.Plus, 5x23M, 600x900 mm, System C
      0.00 €  / *
    • FL591E

      Steel inner door, Orion.Plus, H750 W500 mm
      0.00 €  / *
    • FL391B

      Polyester plain door, Orion.Plus, H750 W1000 mm
      0.00 €  / *
    • FL411B

      Polyester glazed door, Orion.Plus H750 W1000 mm
      0.00 €  / *
    • FL710E

      Insulated front panel, Orion.Plus, 150x500 mm
      0.00 €  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL74Z

      Triangular insert lock, Orion.Plus, 8mm
      0.00 €  / *
    • FL75Z

      Leave lock insert, Orion.Plus, 3 mm
      0.00 €  / *
    • FL76Z

      Insert lock for rotary handle, Orion.Plus, 8x8 mm
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *
    • FZ801

      Nuts set, Orion.Plus, 100 pieces
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      850 mm
    • Width
      1,100 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK08
    Equip­ment
    • Number of flange plate open­ings
      0
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Plastic
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      630 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL511B
    PDF
    Hager RoHS report FL511B
    PDF

    Downloads

    • Product image

      Image FL511B | Hager

      Product Image FL511B

    • Product datasheet

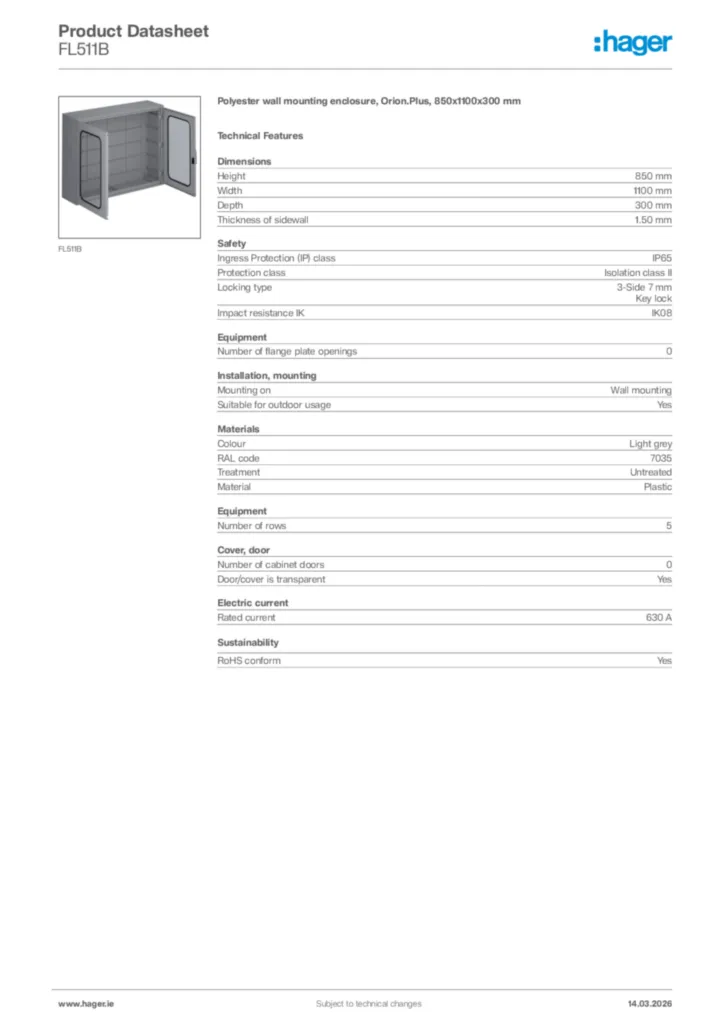

      Image Hager Product data sheet FL511B | Hager

      Hager Product data sheet FL511B

      Polyester wall mounting enclosure, Orion.Plus, 850x1100x300 mm

      PDF
