Polyester wall mounting enclosure, Orion.Plus, 850x850x300 mm

FL506B

  • Distri­bu­tion systems

Polyester wall mounting enclosure, Orion.Plus, 850x850x300 mm FL506B

EAN
3250610676066
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • More products

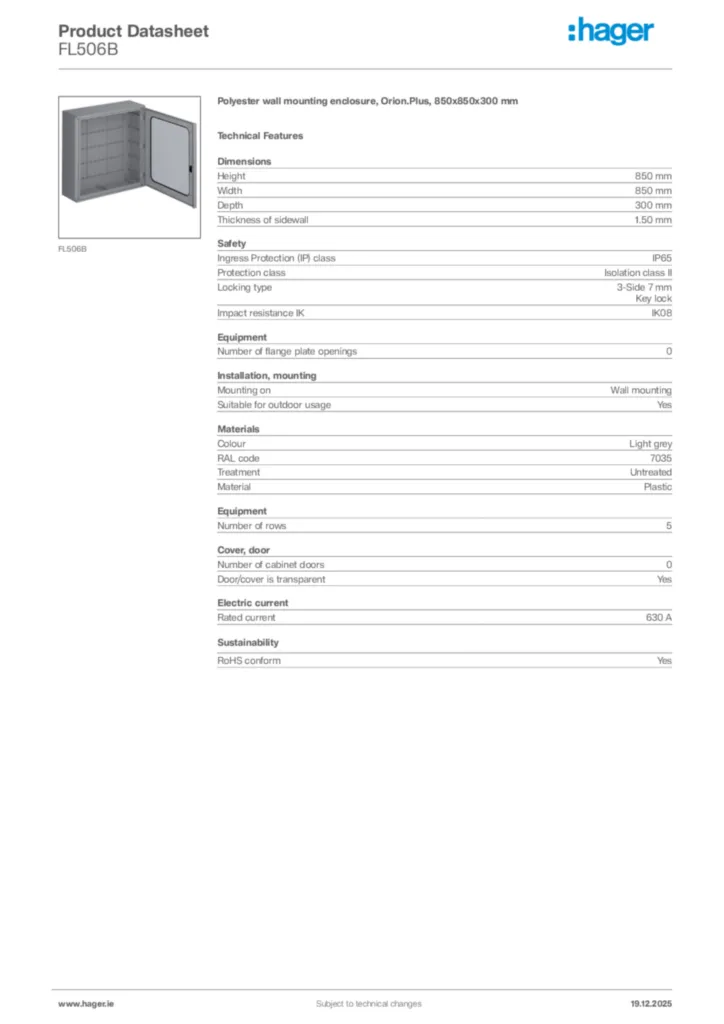

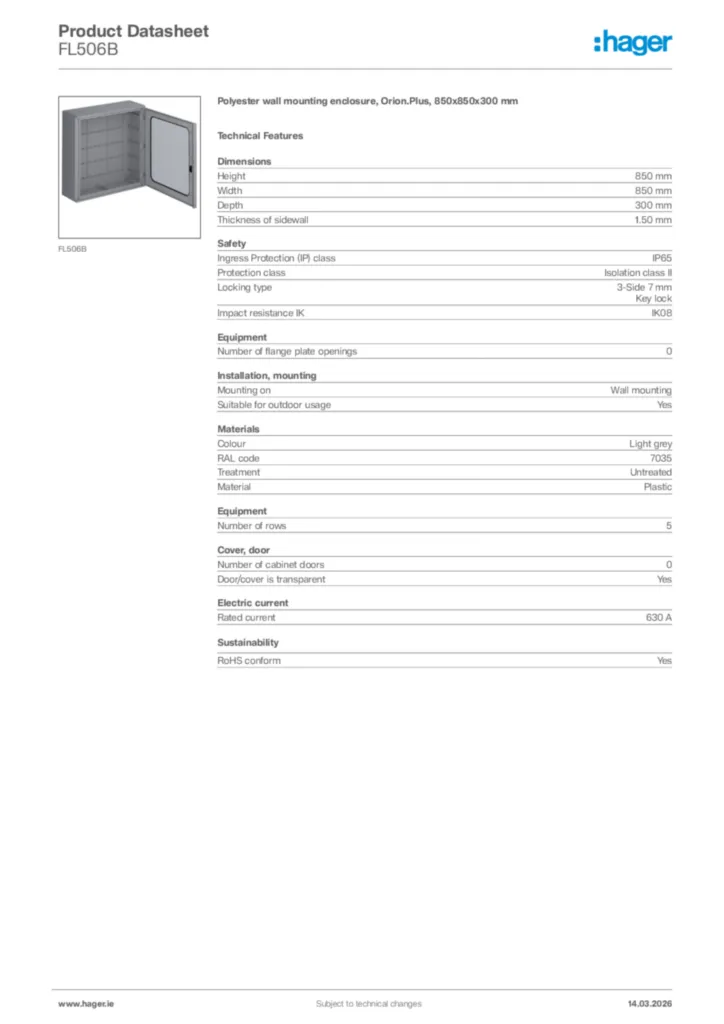

Download the data sheet

Complete your system

Optional accessories

  • Distrib­utor assembly for serial built-in device 5 products available
  • Door/­op­er­ating panel 4 products available
  • Vent­il­ator for enclosure 4 products available
  • Heater for enclosure 4 products available
  • Blanking plate for enclosure 3 products available
  • See more 21 other products available

Complete your system

  • Distrib­utor assembly for serial built-in device
  • Door/­op­er­ating panel
  • Vent­il­ator for enclosure
  • Heater for enclosure
  • Blanking plate for enclosure
  • Screw mounting set
  • Mounting accessories
  • Mounting plate for distri­bu­tion board
  • DIN rail
  • Key for enclos­ures/cab­inets
  • Insert for lock system
  • FL365A

    Kit system MCB, Orion.Plus, 150x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL369A

    Kit system MCB, Orion.Plus, 200x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL374A

    MCCB x250 kit system, Orion.Plus, 300x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL381AH

    MCCB x250 kit system, Orion.Plus, 200x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL993B

    MCB complete kit, Orion.Plus, 5x37M, 850x900 mm, System C
    0.00 €  / *
    Add to a list
    Add to a list
  • FL386B

    Polyester plain door, Orion.Plus, H750 W750 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL406B

    Polyester glazed door, Orion.Plus, H750 W750 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL581E

    Steel inner door, Orion.Plus, H750 W250 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL601E

    Steel inner door, Orion.Plus, H750 W750 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL210Z

    Fan, quadro.system, 20W 57 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL212Z

    Fan, quadro.system, 20W 115 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL214Z

    Fan, quadro.system, 32W 240 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL216Z

    Fan, quadro.system, 67W 520m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL254Z

    Heaters, quadro.system, 45 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL255Z

    Heaters, quadro.system, 80 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL256Z

    Heaters, quadro.system, 150 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL259Z

    Thermostat, quadro.system, 10 A 230 V AC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL715E

    Insulated front panel, Orion.Plus, 150x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL725E

    Insulated front panel, Orion.Plus, 200x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL735E

    Insulated front panel, Orion.Plus, 300x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ801

    Nuts set, Orion.Plus, 100 pieces
    0.00 €  / *
    Add to a list
    Add to a list
  • FL450A

    Fixing bracket for mounting plate, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL672E

    Sliding guides, Orion.Plus, L350 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL863Z

    Wall ins. fixing brackets, Orion.Plus polyester
    0.00 €  / *
    Add to a list
    Add to a list
  • FL317A

    Adjustable steel mounting plate, Orion.Plus, 604x145 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL327A

    Adjustable steel mounting plate, Orion.Plus, 604x195 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL337A

    Adjustable steel mounting plate, Orion.Plus, 604x295 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL347A

    Adjustable steel mounting plate, Orion.Plus, 604x395 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL501E

    Internal mounting plate, Orion.Plus, 780x243 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL521E

    Steel mounting plate, Orion.Plus, 780x743 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL541E

    Insulated mounting plate, Orion.Plus, 735x245 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL561E

    Insulated mounting plate, Orion.Plus, 735x745 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL705E

    Insulated front panel, Orion.Plus, 50x800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL466A

    Functional uprights, Orion.Plus, H800 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL99Z

    Triangular key, Orion.Plus, RAL7046
    0.00 €  / *
    Add to a list
    Add to a list
  • FL74Z

    Triangular insert lock, Orion.Plus, 8mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL75Z

    Leave lock insert, Orion.Plus, 3 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL76Z

    Insert lock for rotary handle, Orion.Plus, 8x8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL81Z

    Pair square key inserts, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL94Z

    Pair triangle insert, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL98Z

    Pair inserts for key and sealing handle, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Dimen­sions
  • Height
    850 mm
  • Width
    850 mm
  • Depth
    300 mm
  • Thick­ness of side­wall
    1.50 mm
Safety
  • Ingress Protec­tion (IP) class
    IP65
  • Protec­tion class
    Isol­a­tion class II
  • Locking type
    3-Side 7 mm, Key lock
  • Impact resist­ance IK
    IK08
Equip­ment
  • Number of flange plate open­ings
    0
  • Number of rows
    5
Install­a­tion, mounting
  • Mounting on
    Wall mounting
  • Suit­able for outdoor usage
    Yes
Mater­ials
  • Colour
    Light grey
  • RAL code
    7035
  • Treat­ment
    Untreated
  • Material
    Plastic
Cover, door
  • Number of cabinet doors
    0
  • Door/­cover is trans­parent
    Yes
Elec­tric current
  • Rated current
    630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration FL506B (english)
PDF
103,10 kB
RoHS declaration FL506B (english)
PDF
103,84 kB
