FL362B - Polyester double enclosure, Orion.Plus, plain door 1450x1100x300 mm

Distribution systems

Polyester double enclosure, Orion.Plus, plain door 1450x1100x300 mm FL362B

Name: FL362B
Brand: Hager
SKU: FL362B

EAN

3250610672648

Packaging

1 Piece

Add to a list

Accessories
Technical properties
Environmental value
More products

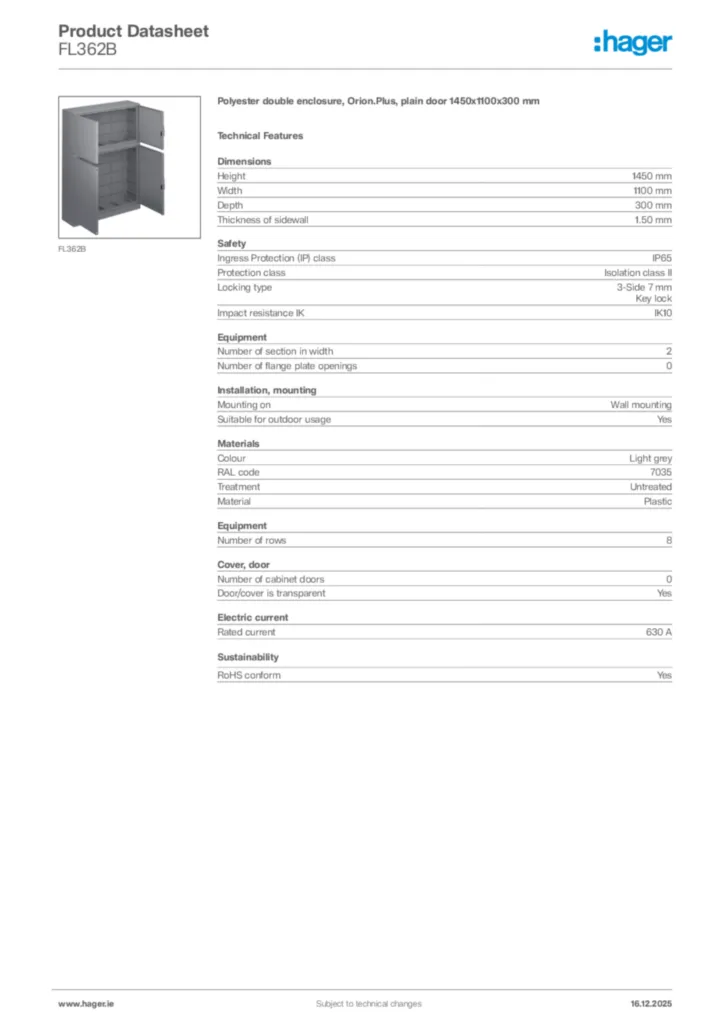

Download the data sheet

Complete your system

Optional accessories

Distributor assembly for serial built-in device 3 products available
Door/operating panel 6 products available
Ventilator for enclosure 4 products available
Heater for enclosure 4 products available
Blanking plate for enclosure 2 products available
See more 25 other products available

Technical properties

Height

1,450 mm
Width

1,100 mm
Depth

300 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP65
Protection class

Isolation class II
Locking type

3-Side 7 mm, Key lock
Impact resistance IK

IK10

Number of section in width

2
Number of flange plate openings

0
Number of rows

8

Mounting on

Wall mounting
Suitable for outdoor usage

Yes

Colour

Light grey
RAL code

7035
Treatment

Untreated
Material

Plastic

Number of cabinet doors

0
Door/cover is transparent

Yes

Rated current

630 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration FL362B (english)

PDF

103,10 kB

RoHS declaration FL362B (english)

PDF

103,84 kB
