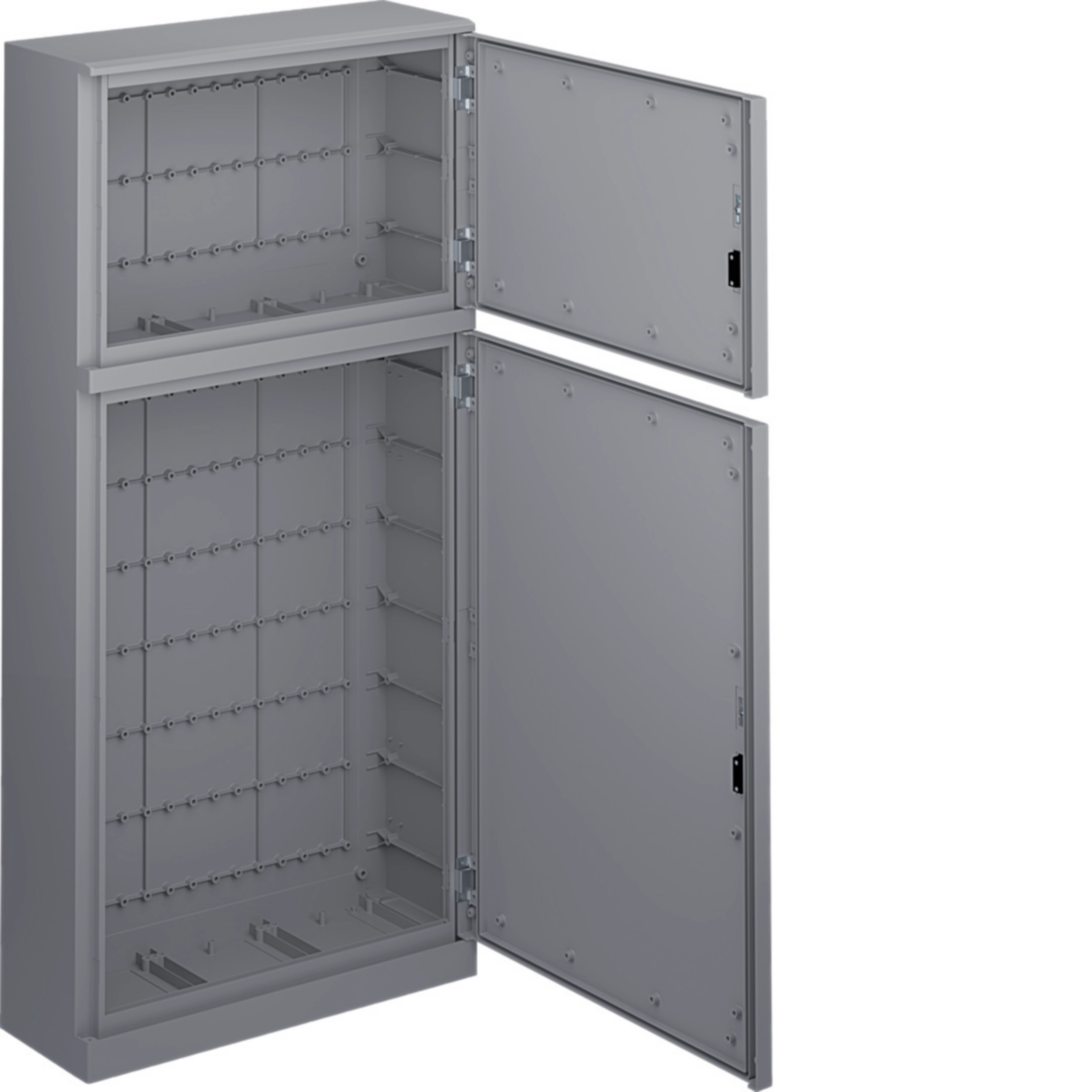

Polyester double enclosure, Orion.Plus, plain door 1750x850x300 mm FL354B
EAN
3250610672600
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly for serial built-in device 6 products available -
Door/operating panel 8 products available -
Ventilator for enclosure 4 products available -
Heater for enclosure 4 products available -
Blanking plate for enclosure 3 products available -
See more 29 other products available
Complete your system
-
FL365A
Kit system MCB, Orion.Plus, 150x800 mm
-
FL369AKit system MCB, Orion.Plus, 200x800 mm
-
FL374AMCCB x250 kit system, Orion.Plus, 300x800 mm
-
FL381AHMCCB x250 kit system, Orion.Plus, 200x800 mm
-
FL991BMCB complete kit, Orion.Plus, 3x37M, 850x600 mm, System C
-
FL995BMCB complete kit, Orion.Plus, 7x37M, 850x1200 mm, System C
-
FL385B
Polyester plain door, Orion.Plus, H450 W750 mm
-
FL387BPolyester plain door, Orion.Plus, H1050 W750 mm
-
FL405B
Polyester glazed door, Orion.Plus polyester, H450 W750 mm
-
FL407B
Polyester glazed door, Orion.Plus, H1050 W750 mm
-
FL580ESteel inner door, Orion.Plus, H450 W250 mm
-
FL582E
Steel inner door, Orion.Plus, H1050 W250 mm
-
FL601ESteel inner door, Orion.Plus, H750 W750 mm
-
FL602ESteel inner door, Orion.Plus, H1050 W750 mm
-
FL317AAdjustable steel mounting plate, Orion.Plus, 604x145 mm
-
FL327AAdjustable steel mounting plate, Orion.Plus, 604x195 mm
-
FL337AAdjustable steel mounting plate, Orion.Plus, 604x295 mm
-
FL347AAdjustable steel mounting plate, Orion.Plus, 604x395 mm
-
FL407ASteel mounting plate, Orion.Plus, 480x243 mm
-
FL424AInsulated mounting plate, Orion.Plus, 435x245 mm
-
FL502ESteel mounting plate, Orion.Plus, 1080x243 mm
-
FL520ESteel mounting plate, Orion.Plus, 480x743 mm
-
FL522ESteel mounting plate, Orion.Plus, 1080x743 mm
-
FL542EInsulated mounting plate, Orion.Plus, 1045x245 mm
-
FL560EInsulated mounting plate, Orion.Plus, 435x745 mm
-
FL561EInsulated mounting plate, Orion.Plus, 735x745 mm
-
FL562EInsulated mounting plate, Orion.Plus, 1035x745 mm
-
FL600EInsulated mounting plate, Orion.Plus, 750x450 mm
-
FL705EInsulated front panel, Orion.Plus, 50x800 mm

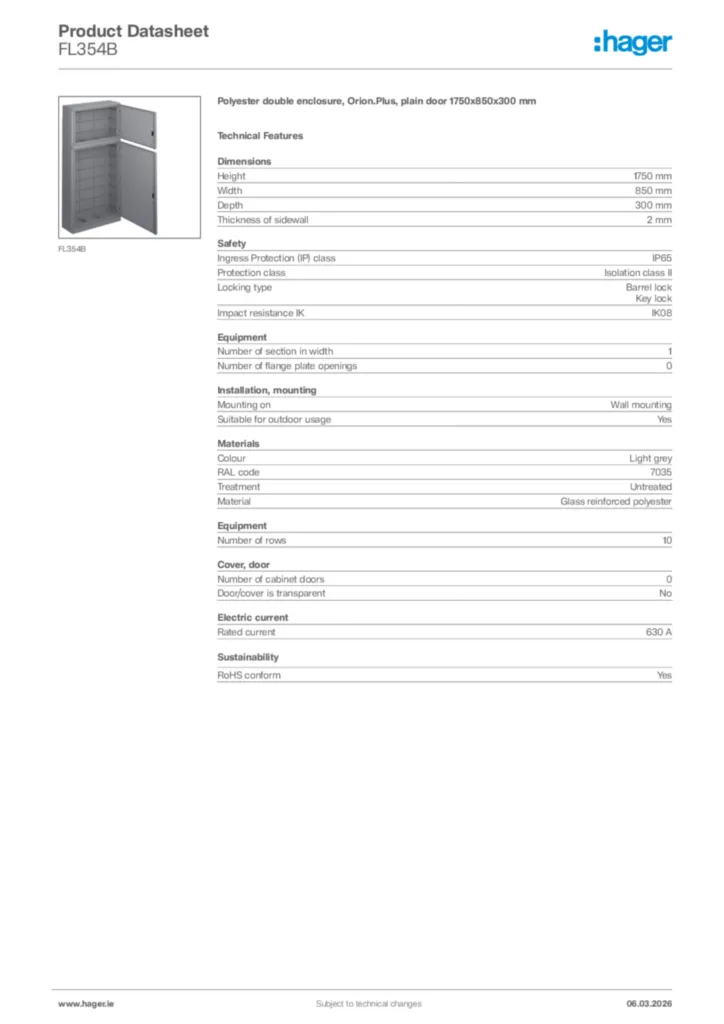

Technical properties
Dimensions
-
Height1,750 mm
-
Width850 mm
-
Depth300 mm
-
Thickness of sidewall2 mm
Safety
-
Ingress Protection (IP) classIP65
-
Protection classIsolation class II
-
Locking typeBarrel lock, Key lock
-
Impact resistance IKIK08
Equipment
-
Number of section in width1
-
Number of flange plate openings0
-
Number of rows10
Installation, mounting
-
Mounting onWall mounting
-
Suitable for outdoor usageYes
Materials
-
ColourLight grey
-
RAL code7035
-
TreatmentUntreated
-
MaterialGlass reinforced polyester
Cover, door
-
Number of cabinet doors0
-
Door/cover is transparentNo
Electric current
-
Rated current630 A
Environmental value
