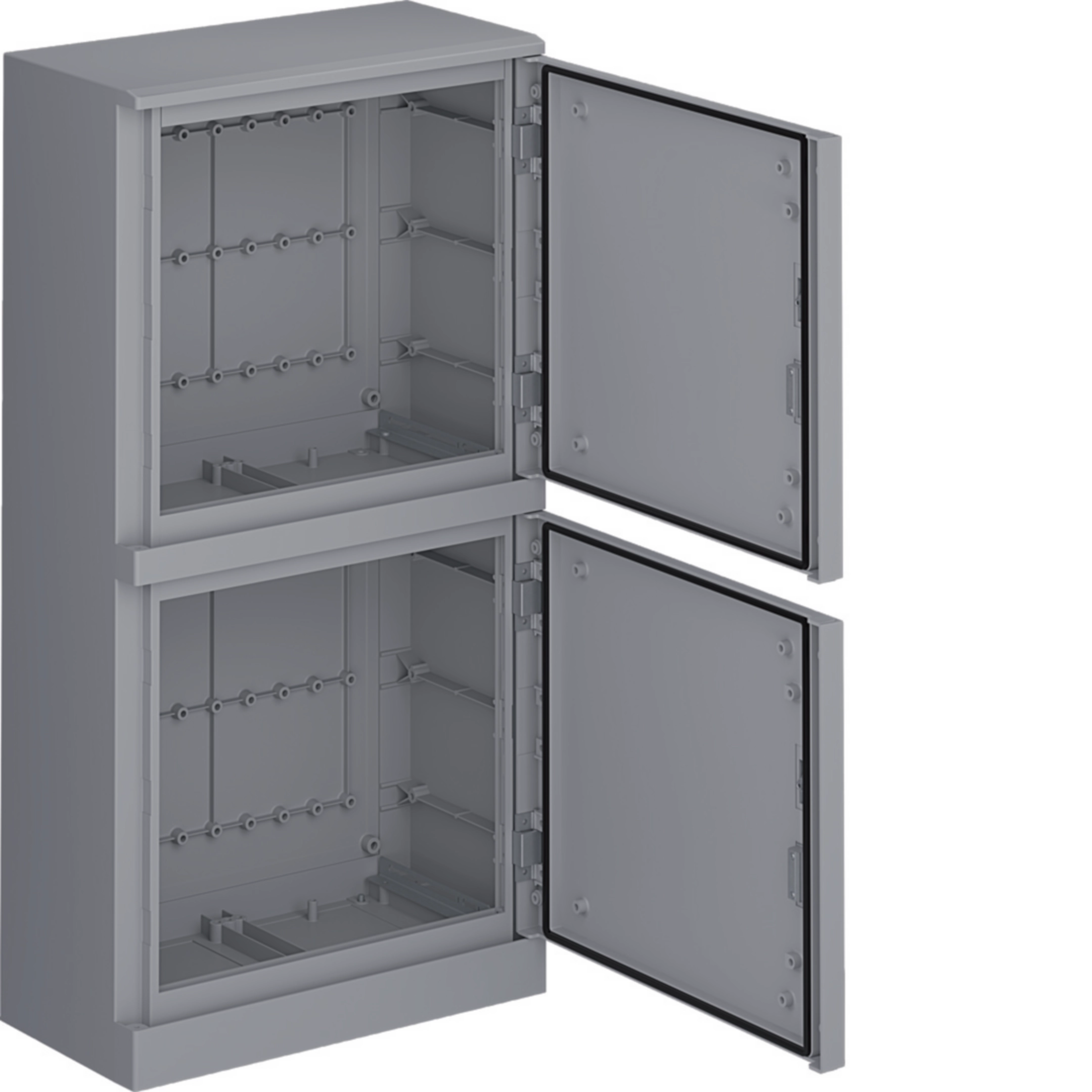

Polyester double enclosure, Orion.Plus, plain door 1150x600x300 mm FL340B

EAN
3250610672532
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Polyester double enclosure, Orion.Plus, plain door 1150x600x300 mm

FL340B

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (46)
    • Mounting plate for distri­bu­tion board 11 products available
    • Distrib­utor assembly for serial built-in device 6 products available
    • Blanking plate for enclosure 2 products available
    • Key for enclos­ures/cab­inets 1 products available
    • Heater for enclosure 4 products available
    • DIN rail 2 products available

    Complete your system

    • Mounting plate for distri­bu­tion board
    • Distrib­utor assembly for serial built-in device
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Heater for enclosure
    • DIN rail
    • Door/­op­er­ating panel
    • Vent­il­ator for enclosure
    • Mounting accessories
    • Screw mounting set
    • Insert for lock system
    • Cover strip
    • Docu­ment holder
    • FL316A

      Adjustable steel mounting plate, Orion.Plus, 404x145 mm
      0.00 €  / *
    • FL326A

      Adjustable steel mounting plate, Orion.Plus, 404x195 mm
      0.00 €  / *
    • FL336A

      Adjustable steel mounting plate, Orion.Plus, 404x295 mm
      0.00 €  / *
    • FL346A

      Adjustable steel mounting plate, Orion.Plus, 404x395 mm
      0.00 €  / *
    • FL550E

      Insulated mounting plate, Orion.Plus, 435x495 mm
      0.00 €  / *
    • FL552E

      Insulated mounting plate, Orion.Plus, 1035x495 mm
      0.00 €  / *
    • FL510E

      Steel mounting plate, Orion.Plus, 480x493 mm
      0.00 €  / *
    • FL610E

      Adjustable steel mounting plate, Orion.Plus, 145x354 mm
      0.00 €  / *
    • FL620E

      Adjustable steel mounting plate, Orion.Plus, 195x354 mm
      0.00 €  / *
    • FL630E

      Adjustable steel mounting plate, Orion.Plus, 295x354 mm
      0.00 €  / *
    • FL640E

      Adjustable steel mounting plate, Orion.Plus, 395x354 mm
      0.00 €  / *
    • FL373A

      Kit MCCB x160, Orion.Plus, 300x600 mm
      0.00 €  / *
    • FL380AH

      Kit MCCB x250, Orion.Plus, 200x600 mm
      0.00 €  / *
    • FL364A

      Kit system MCB, Orion.Plus, 150x600 mm
      0.00 €  / *
    • FL368A

      Kit system MCB, Orion.Plus, 200x600 mm
      0.00 €  / *
    • FL763E

      Kit system MCB, Orion.Plus, 150x500 mm
      0.00 €  / *
    • FL990B

      MCB complete kit, Orion.Plus, 3x23M, 600x600 mm, System C
      0.00 €  / *
    • FL704E

      Insulated front panel, Orion.Plus, 50x600 mm
      0.00 €  / *
    • FL710E

      Insulated front panel, Orion.Plus, 150x500 mm
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL495A

      Clamp bracket, Orion.Plus, W600 mm
      0.00 €  / *
    • FL500E

      Clamp DIN rail, Orion.Plus, 24 M W500 mm
      0.00 €  / *
    • FL590E

      Steel inner door, Orion.Plus, H450 W500 mm
      0.00 €  / *
    • FL592E

      Steel inner door, Orion.Plus, H1050 W500 mm
      0.00 €  / *
    • FL380B

      Polyester plain door, Orion.Plus, H500 W450 mm
      0.00 €  / *
    • FL400B

      Polyester glazed door, Orion.Plus, H450 W500 mm
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FZ801

      Nuts set, Orion.Plus, 100 pieces
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL74Z

      Triangular insert lock, Orion.Plus, 8mm
      0.00 €  / *
    • FL75Z

      Leave lock insert, Orion.Plus, 3 mm
      0.00 €  / *
    • FL76Z

      Insert lock for rotary handle, Orion.Plus, 8x8 mm
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FZ818

      Document holder, plastic, DIN A4, adhesive
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      1,150 mm
    • Width
      600 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      0
    • Number of rows
      6
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Plastic
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      630 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL340B
    PDF
    Hager RoHS report FL340B
    PDF

    Downloads

    • Product image

      Image FL340B | Hager

      Product Image FL340B

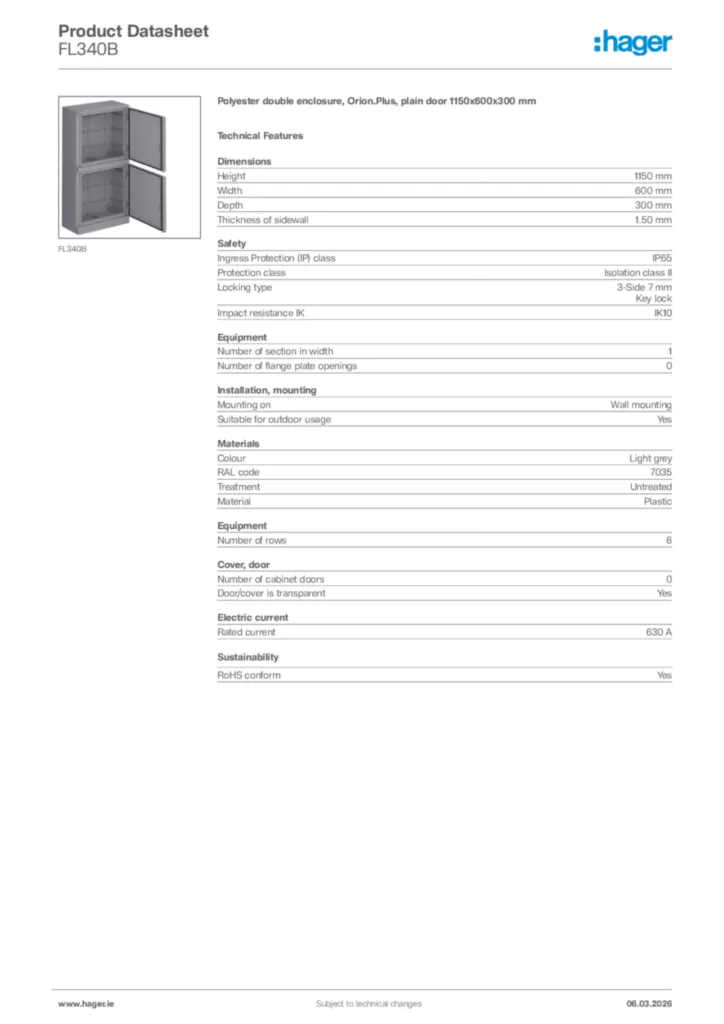

    • Product datasheet

      Image Hager Product data sheet FL340B | Hager

      Hager Product data sheet FL340B

      Polyester double enclosure, Orion.Plus, plain door 1150x600x300 mm

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2019-10-31 | Hager

      Declaration of conformity en-GB 2019-10-31

      PDF
      707,52 kB
