Polyester enclosure, Orion.Plus, glazed door 650x400x200 mm FL266B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 1 products available -
Mounting accessories 1 products available -
Accessories/spare parts for low-voltage switch technology 1 products available -
Insert for lock system 1 products available -
DIN rail 1 products available -
Distributor assembly for serial built-in device 2 products available
Complete your system
Technical properties
Dimensions
-
Height650 mm
-
Width400 mm
-
Depth200 mm
-
Thickness of sidewall3 mm
Safety
-
Ingress Protection (IP) classIP66
-
Protection classIsolation class II
-
Locking type3-Side 7 mm, Key lock
-
Impact resistance IKIK08
Equipment
-
Number of flange plate openings0
-
Number of rows4
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageYes
Materials
-
ColourLight grey
-
RAL code7035
-
TreatmentUntreated
-
MaterialGlass reinforced polyester
Cover, door
-
Number of cabinet doors1
-
Number of locks2
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Electric current
-
Rated current125 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

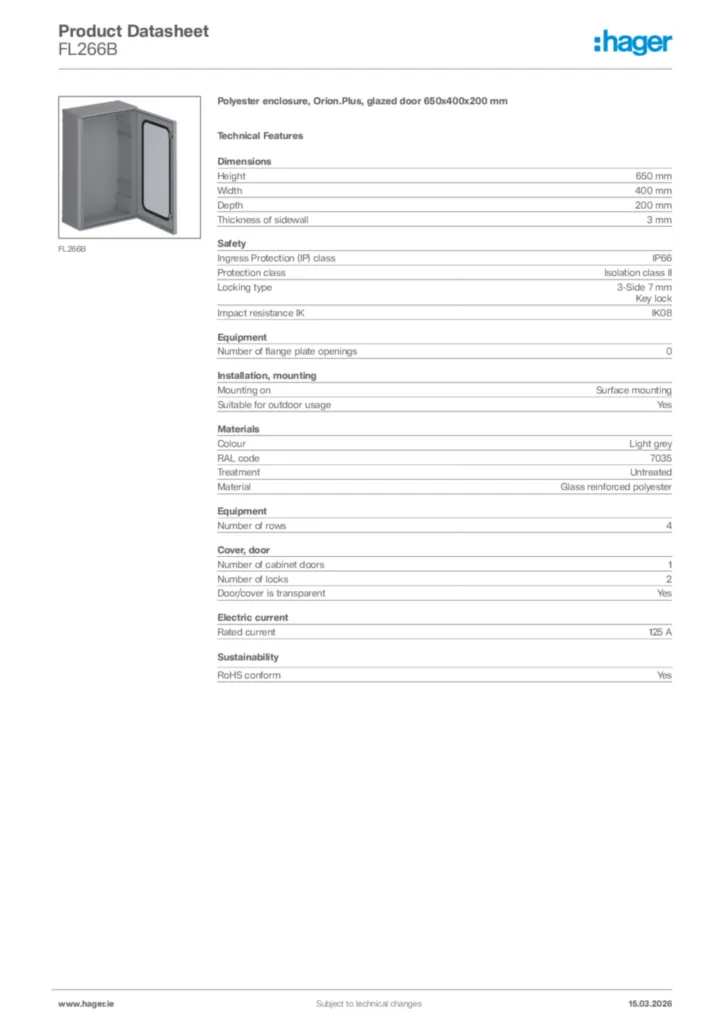

Hager Product data sheet FL266B
Polyester enclosure, Orion.Plus, glazed door 650x400x200 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-07-06
PDF195,93 kB
Declaration
Declaration of conformity International 2022-02-24
PDF818,77 kB
