Steel enclosure, Orion.Plus, glazed door 950x800x300 mm FL178A

EAN
3250610670774
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Steel enclosure, Orion.Plus, glazed door 950x800x300 mm

FL178A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (47)
    • Distrib­utor assembly for serial built-in device 5 products available
    • Heater for enclosure 6 products available
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
    • Lock system 5 products available
    • Door/­op­er­ating panel 1 products available
    • Mounting plate for distri­bu­tion board 7 products available

    Complete your system

    • Distrib­utor assembly for serial built-in device
    • Heater for enclosure
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
    • Lock system
    • Door/­op­er­ating panel
    • Mounting plate for distri­bu­tion board
    • DIN rail
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Insert for lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Cover strip
    • Vent­il­ator for enclosure
    • Base/­base element
    • FL998A

      MCB complete kit, Orion.Plus, 6x37M, H950 W800 mm, System C
      0.00 €  / *
    • FL374A

      MCCB x250 kit system, Orion.Plus, 300x800 mm
      0.00 €  / *
    • FL381AH

      MCCB x250 kit system, Orion.Plus, 200x800 mm
      0.00 €  / *
    • FL365A

      Kit system MCB, Orion.Plus, 150x800 mm
      0.00 €  / *
    • FL369A

      Kit system MCB, Orion.Plus, 200x800 mm
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL252Z

      Heaters, quadro.system, 15 W 230 V AC/DC
      0.00 €  / *
    • FL253Z

      Heaters, quadro.system, 30 W 230 V AC/DC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL258Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL82Z

      Pair square key inserts, Orion.Plus, 6 mm
      0.00 €  / *
    • FL557A

      Steel counterdoor, Orion.Plus sheet metal, H950 W800 mm
      0.00 €  / *
    • FL417A

      Internal, metal mounting plate, orion.plus, 930x693x2mm
      0.00 €  / *
    • FL431A

      Internal, isolated mounting plate, orion.plus, 885x745 mm
      0.00 €  / *
    • FL317A

      Adjustable steel mounting plate, Orion.Plus, 604x145 mm
      0.00 €  / *
    • FL327A

      Adjustable steel mounting plate, Orion.Plus, 604x195 mm
      0.00 €  / *
    • FL337A

      Adjustable steel mounting plate, Orion.Plus, 604x295 mm
      0.00 €  / *
    • FL347A

      Adjustable steel mounting plate, Orion.Plus, 604x395 mm
      0.00 €  / *
    • FL705E

      Insulated front panel, Orion.Plus, 50x800 mm
      0.00 €  / *
    • FL467A

      Functional uprights, Orion.Plus, H950 mm
      0.00 €  / *
    • FL715E

      Insulated front panel, Orion.Plus, 150x800 mm
      0.00 €  / *
    • FL725E

      Insulated front panel, Orion.Plus, 200x800 mm
      0.00 €  / *
    • FL735E

      Insulated front panel, Orion.Plus, 300x800 mm
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL77Z

      Insert lock for rotary handle, Orion.Plus, 6x6 mm
      0.00 €  / *
    • FL670A

      Vertical connecting kit S/ORION+
      0.00 €  / *
    • FL503A

      Clamp DIN rail, Orion.Plus, W800 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *
    • FL962A

      Plinth, Orion.Plus, H150 800x300 mm
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      950 mm
    • Width
      800 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      1.20 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of flange plate open­ings
      2
    • Number of rows
      6
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      2
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL178A
    PDF
    Hager RoHS report FL178A
    PDF

    Downloads

    • Product image

      Image FL178A | Hager

      Product Image FL178A

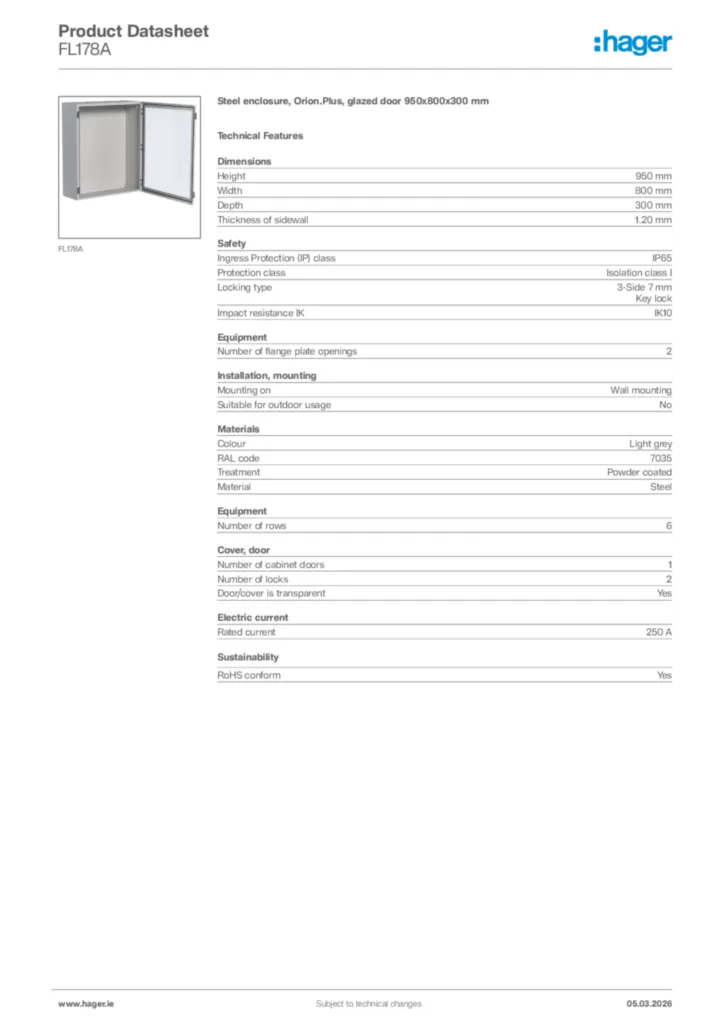

    • Product datasheet

      Image Hager Product data sheet FL178A | Hager

      Hager Product data sheet FL178A

      Steel enclosure, Orion.Plus, glazed door 950x800x300 mm

      PDF

    • BIM Revit objects

      Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 300 mm - English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 300 mm - English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,28 MB
      Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 300 mm - English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 300 mm - English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,36 MB
