Steel enclosure, Orion.Plus, glazed door 950x600x300 mm

FL176A

  • Distri­bu­tion systems

Steel enclosure, Orion.Plus, glazed door 950x600x300 mm FL176A

EAN
3250610674277
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

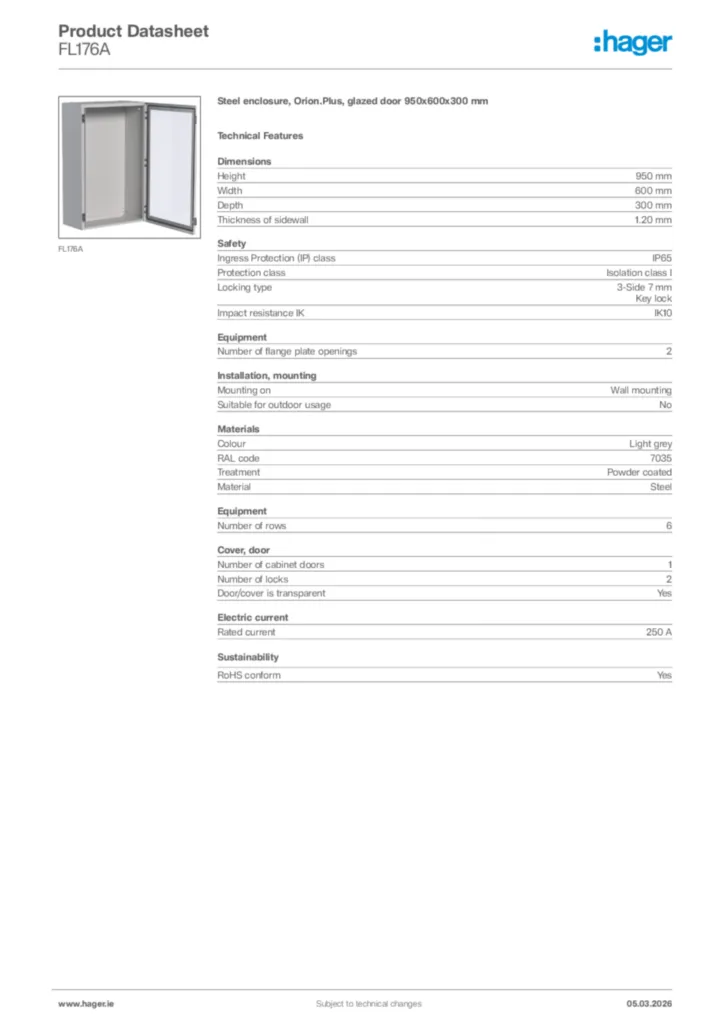

Download the data sheet

Complete your system

Optional accessories

  • Distrib­utor assembly for serial built-in device 6 products available
  • Door/­op­er­ating panel 1 products available
  • Vent­il­ator for enclosure 4 products available
  • Heater for enclosure 6 products available
  • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
  • See more 32 other products available

Complete your system

  • Distrib­utor assembly for serial built-in device
  • Door/­op­er­ating panel
  • Vent­il­ator for enclosure
  • Heater for enclosure
  • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
  • Blanking plate for enclosure
  • Lock system
  • Base/­base element
  • Accessor­ies/s­pare parts for earthing and light­ning
  • Mounting accessories
  • Cover strip
  • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
  • Mounting plate for distri­bu­tion board
  • DIN rail
  • Key for enclos­ures/cab­inets
  • Insert for lock system
  • FL364A

    Kit system MCB, Orion.Plus, 150x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL368A

    Kit system MCB, Orion.Plus, 200x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL373A

    Kit MCCB x160, Orion.Plus, 300x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL380AH

    Kit MCCB x250, Orion.Plus, 200x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL763E

    Kit system MCB, Orion.Plus, 150x500 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL997A

    MCB complete kit, Orion.Plus, 6x26M, H900 W600 mm, System C
    0.00 €  / *
    Add to a list
    Add to a list
  • FL556A

    Steel counterdoor, Orion.Plus sheet metal, H950 W600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL210Z

    Fan, quadro.system, 20W 57 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL212Z

    Fan, quadro.system, 20W 115 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL214Z

    Fan, quadro.system, 32W 240 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL216Z

    Fan, quadro.system, 67W 520m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL252Z

    Heaters, quadro.system, 15 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL253Z

    Heaters, quadro.system, 30 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL254Z

    Heaters, quadro.system, 45 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL255Z

    Heaters, quadro.system, 80 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL256Z

    Heaters, quadro.system, 150 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL259Z

    Thermostat, quadro.system, 10 A 230 V AC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL258Z

    Thermostat, quadro.system, 10 A 230 V AC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL704E

    Insulated front panel, Orion.Plus, 50x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL714E

    Insulated front panel, Orion.Plus, 150x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL724E

    Insulated front panel, Orion.Plus, 200x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL734E

    Insulated front panel, Orion.Plus, 300x600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL80Z

    Pair square key inserts, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL82Z

    Pair square key inserts, Orion.Plus, 6 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL93Z

    Pair triangle insert, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL95Z

    Pair leave inserts, Orion.Plus, 3 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL96Z

    Triangular lock plus handle, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL960A

    Plinth, Orion.Plus, H150 600x300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL962A

    Plinth, Orion.Plus, H150 800x300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL874A

    Ground wire kit, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL450A

    Fixing bracket for mounting plate, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL670A

    Vertical connecting kit S/ORION+
    0.00 €  / *
    Add to a list
    Add to a list
  • FL863Z

    Wall ins. fixing brackets, Orion.Plus polyester
    0.00 €  / *
    Add to a list
    Add to a list
  • FL871Z

    Blanking strips 4 Mod, Quadro.Plus, 6 pieces
    0.00 €  / *
    Add to a list
    Add to a list
  • FL85Z

    Wall steel fixing brackets, Orion.Plus steel
    0.00 €  / *
    Add to a list
    Add to a list
  • FL316A

    Adjustable steel mounting plate, Orion.Plus, 404x145 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL326A

    Adjustable steel mounting plate, Orion.Plus, 404x195 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL336A

    Adjustable steel mounting plate, Orion.Plus, 404x295 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL346A

    Adjustable steel mounting plate, Orion.Plus, 404x395 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL416A

    Internal,metal mounting plate,orion.plus,930x393x2mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL430A

    Internal,isolated mounting plate,orion.plus,885x545x6mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL467A

    Functional uprights, Orion.Plus, H950 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL495A

    Clamp bracket, Orion.Plus, W600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL502A

    Clamp DIN rail, Orion.Plus, 28 M W600 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL99Z

    Triangular key, Orion.Plus, RAL7046
    0.00 €  / *
    Add to a list
    Add to a list
  • FL77Z

    Insert lock for rotary handle, Orion.Plus, 6x6 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL81Z

    Pair square key inserts, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL94Z

    Pair triangle insert, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL97Z

    Pair leave inserts, Orion.Plus, 3 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL98Z

    Pair inserts for key and sealing handle, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Dimen­sions
  • Height
    950 mm
  • Width
    600 mm
  • Depth
    300 mm
  • Thick­ness of side­wall
    1.20 mm
Safety
  • Ingress Protec­tion (IP) class
    IP65
  • Protec­tion class
    Isol­a­tion class I
  • Locking type
    3-Side 7 mm, Key lock
  • Impact resist­ance IK
    IK10
Equip­ment
  • Number of flange plate open­ings
    2
  • Number of rows
    6
Install­a­tion, mounting
  • Mounting on
    Wall mounting
  • Suit­able for outdoor usage
    No
Mater­ials
  • Colour
    Light grey
  • RAL code
    7035
  • Treat­ment
    Powder coated
  • Material
    Steel
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    2
  • Door/­cover is trans­parent
    Yes
Elec­tric current
  • Rated current
    250 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration FL176A (english)
PDF
103,10 kB
RoHS declaration FL176A (english)
PDF
103,84 kB
