Steel enclosure, Orion.Plus, glazed door 800x500x250 mm FL172A

EAN
3250610674253
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Steel enclosure, Orion.Plus, glazed door 800x500x250 mm

FL172A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (53)
    • Mounting plate for distri­bu­tion board 11 products available
    • Door/­op­er­ating panel 2 products available
    • DIN rail 3 products available
    • Lock system 5 products available
    • Distrib­utor assembly for serial built-in device 4 products available
    • Blanking plate for enclosure 4 products available

    Complete your system

    • Mounting plate for distri­bu­tion board
    • Door/­op­er­ating panel
    • DIN rail
    • Lock system
    • Distrib­utor assembly for serial built-in device
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Heater for enclosure
    • Insert for lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Cover strip
    • Vent­il­ator for enclosure
    • Base/­base element
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
    • FL414A

      Steel mounting plate, Orion.Plus, 780x443 mm
      0.00 €  / *
    • FL428A

      Insulated mounting plate, Orion.Plus, 735x445 mm
      0.00 €  / *
    • FL478A

      Steel mounting plate, Orion.Plus, 780x443 mm
      0.00 €  / *
    • FL313A

      Fixed steel mounting plate, Orion.Plus, 387x145 mm
      0.00 €  / *
    • FL315A

      Adjustable steel mounting plate, Orion.Plus, 334x145 mm
      0.00 €  / *
    • FL323A

      Fixed steel mounting plate, Orion.Plus, 387x195 mm
      0.00 €  / *
    • FL325A

      Adjustable steel mounting plate, Orion.Plus, 334x195 mm
      0.00 €  / *
    • FL333A

      Fixed steel mounting plate, Orion.Plus, 387x295 mm
      0.00 €  / *
    • FL335A

      Adjustable steel mounting plate, Orion.Plus, 334x295 mm
      0.00 €  / *
    • FL343A

      Fixed steel mounting plate, Orion.Plus, 387x395 mm
      0.00 €  / *
    • FL345A

      Adjustable steel mounting plate, Orion.Plus, 334x395 mm
      0.00 €  / *
    • FL554A

      Steel counterdoor, Orion.Plus sheet metal, H800 W500 mm
      0.00 €  / *
    • FL555A

      Steel inner door, Orion.Plus steel, 800x600 mm
      0.00 €  / *
    • FL501A

      Clamp DIN rail, Orion.Plus, 24 M W500 mm
      0.00 €  / *
    • FL494A

      Clamp bracket, Orion.Plus, W500 mm
      0.00 €  / *
    • FL465A

      Functional uprights, Orion.Plus, H800 mm
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL82Z

      Pair square key inserts, Orion.Plus, 6 mm
      0.00 €  / *
    • FL995A

      MCB complete kit, Orion.Plus, 5x22M, H750 W500 mm, System C
      0.00 €  / *
    • FL371A

      Kit MCCB x160, Orion.Plus, 300x400 mm
      0.00 €  / *
    • FL372A

      Kit MCCB x160, Orion.Plus, 300x500 mm
      0.00 €  / *
    • FL367A

      Kit system MCB, Orion.Plus, 200x500 mm
      0.00 €  / *
    • FL713E

      Insulated front panel, Orion.Plus, 150x500 mm
      0.00 €  / *
    • FL703E

      Insulated front panel, Orion.Plus, 50x500 mm
      0.00 €  / *
    • FL723E

      Insulated front panel, Orion.Plus, 200x500 mm
      0.00 €  / *
    • FL733E

      Insulated front panel, Orion.Plus, 300x500 mm
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL252Z

      Heaters, quadro.system, 15 W 230 V AC/DC
      0.00 €  / *
    • FL253Z

      Heaters, quadro.system, 30 W 230 V AC/DC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL77Z

      Insert lock for rotary handle, Orion.Plus, 6x6 mm
      0.00 €  / *
    • FL670A

      Vertical connecting kit S/ORION+
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *
    • FL958A

      Plinth, Orion.Plus, H150 500x250 mm
      0.00 €  / *
    • FL258Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      800 mm
    • Width
      500 mm
    • Depth
      250 mm
    • Thick­ness of side­wall
      1.20 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of flange plate open­ings
      2
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL172A
    PDF
    Hager RoHS report FL172A
    PDF

    Downloads

    • Product image

      Image FL172A | Hager

      Product Image FL172A

    • Product datasheet

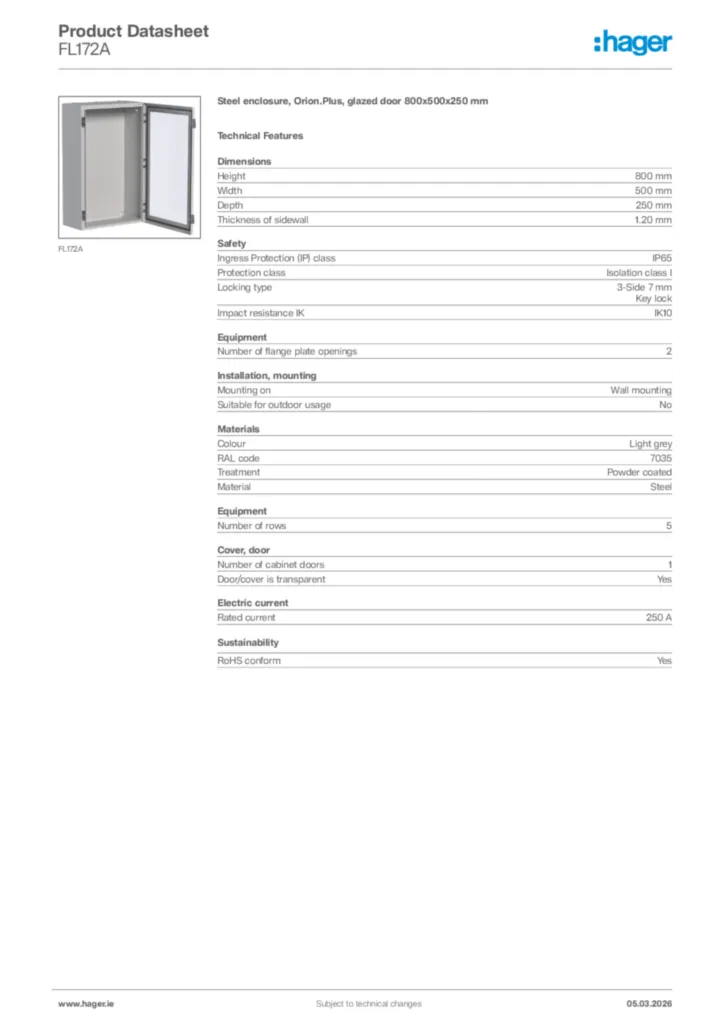

      Image Hager Product data sheet FL172A | Hager

      Hager Product data sheet FL172A

      Steel enclosure, Orion.Plus, glazed door 800x500x250 mm

      PDF
