    EAN
    3250610670736
    Packaging
    1 Piece

    Steel enclosure, Orion.Plus, glazed door 650x500x250 mm FL170A

    Phase out product: please contact your electrical wholesaler for availability

    Follow-up products :

    FL119A, FL120A, FL169A

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Steel enclosure, Orion.Plus, glazed door 650x500x250 mm

    FL170A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Lock system 1 products available
    • Mounting accessories 1 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Insert for lock system 1 products available
    • DIN rail 1 products available
    • Mounting plate for distri­bu­tion board 2 products available

    Complete your system

    • Lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Insert for lock system
    • DIN rail
    • Mounting plate for distri­bu­tion board
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      €0.00  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      €0.00  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      €0.00  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      €0.00  / *
    • FL494A

      Clamp bracket, Orion.Plus, W500 mm
      €0.00  / *
    • FL413A

      Steel mounting plate, Orion.Plus, 630x443 mm
      €0.00  / *
    • FL427A

      Insulated mounting plate, Orion.Plus, 585x445 mm
      €0.00  / *

    Technical properties

    Dimen­sions
    • Height
      650 mm
    • Width
      500 mm
    • Depth
      250 mm
    • Thick­ness of side­wall
      1.20 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of flange plate open­ings
      2
    • Number of rows
      4
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      2
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration FL170A
    PDF
    RoHS report FL170A
    PDF

    Downloads

    • Product image

      Image FL170A | Hager

      Product Image FL170A

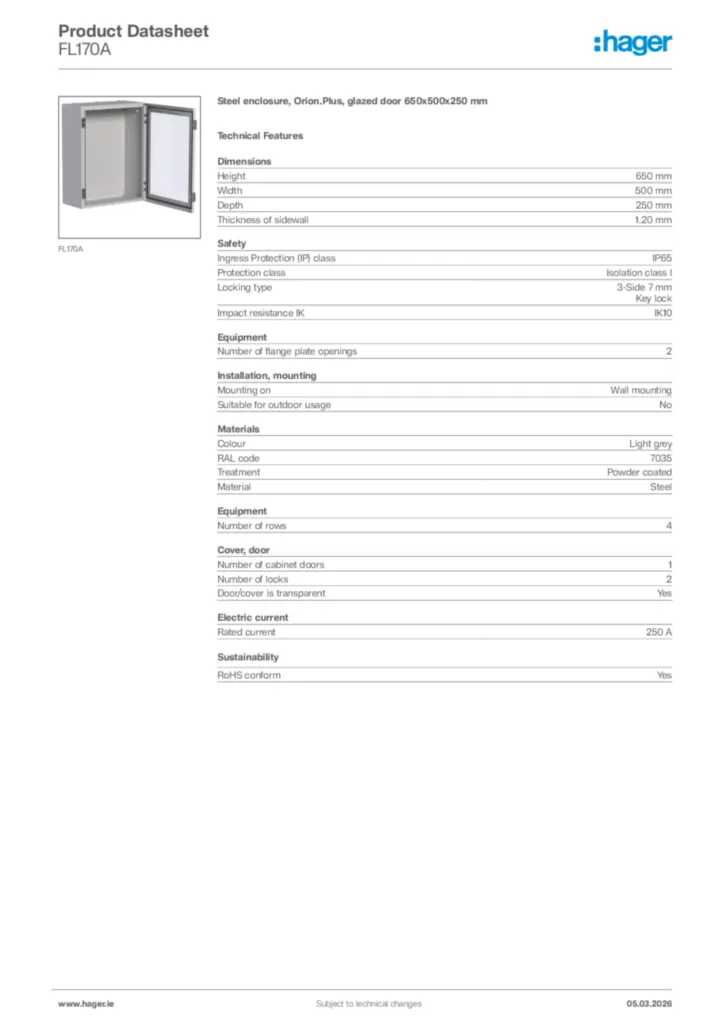

    • Product datasheet

      Image Hager Product data sheet FL170A | Hager

      Hager Product data sheet FL170A

      Steel enclosure, Orion.Plus, glazed door 650x500x250 mm

      PDF

    • BIM Revit objects

      Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,30 MB
      Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,38 MB
