Steel enclosure, Orion.Plus, glazed door 650x400x250 mm FL168A

EAN
3250610674239
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Steel enclosure, Orion.Plus, glazed door 650x400x250 mm

FL168A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (47)
    • Mounting plate for distri­bu­tion board 7 products available
    • Heater for enclosure 6 products available
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
    • Lock system 5 products available
    • Door/­op­er­ating panel 2 products available
    • DIN rail 3 products available

    Complete your system

    • Mounting plate for distri­bu­tion board
    • Heater for enclosure
    • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
    • Lock system
    • Door/­op­er­ating panel
    • DIN rail
    • Distrib­utor assembly for serial built-in device
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Insert for lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Cover strip
    • Vent­il­ator for enclosure
    • FL476A

      Steel mounting plate, Orion.Plus, 630x343 mm
      0.00 €  / *
    • FL412A

      Steel mounting plate, Orion.Plus, 630x343 mm
      0.00 €  / *
    • FL426A

      Insulated mounting plate, Orion.Plus, 585x345 mm
      0.00 €  / *
    • FL312A

      Fixed steel mounting plate, Orion.Plus, 287x145 mm
      0.00 €  / *
    • FL314A

      Adjustable steel mounting plate, Orion.Plus, 234x145 mm
      0.00 €  / *
    • FL322A

      Fixed steel mounting plate, Orion.Plus, 287x195 mm
      0.00 €  / *
    • FL324A

      Adjustable steel mounting plate, Orion.Plus, 604x195 mm
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL252Z

      Heaters, quadro.system, 15 W 230 V AC/DC
      0.00 €  / *
    • FL253Z

      Heaters, quadro.system, 30 W 230 V AC/DC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL258Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL82Z

      Pair square key inserts, Orion.Plus, 6 mm
      0.00 €  / *
    • FL551A

      Steel inner door, Orion.Plus steel, 650x400 mm
      0.00 €  / *
    • FL646A

      Polyester inner door, Orion.Plus polyester, 650x400 mm
      0.00 €  / *
    • FL500A

      Clamp DIN rail, Orion.Plus, 18 M W400 mm
      0.00 €  / *
    • FL493A

      Clamp bracket, Orion.Plus, W400 mm
      0.00 €  / *
    • FL463A

      Functional uprights, Orion.Plus, H650 mm
      0.00 €  / *
    • FL994A

      MCB complete kit, Orion.Plus, 4x24M, 600x500 mm, System C
      0.00 €  / *
    • FL983A

      Chassis kit MCB, orion plus 4x18M 650x400 mm +S
      0.00 €  / *
    • FL371A

      Kit MCCB x160, Orion.Plus, 300x400 mm
      0.00 €  / *
    • FL362A

      Kit system MCB, Orion.Plus, 150x400 mm
      0.00 €  / *
    • FL712E

      Insulated front panel, Orion.Plus, 150x400 mm
      0.00 €  / *
    • FL702E

      Insulated front panel, Orion.Plus, 50x400 mm
      0.00 €  / *
    • FL722E

      Insulated front panel, Orion.Plus, 200x400 mm
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL77Z

      Insert lock for rotary handle, Orion.Plus, 6x6 mm
      0.00 €  / *
    • FL670A

      Vertical connecting kit S/ORION+
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      650 mm
    • Width
      400 mm
    • Depth
      250 mm
    • Thick­ness of side­wall
      1.20 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP65
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      0
    • Number of flange plate open­ings
      2
    • Number of rows
      4
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      250 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FL168A
    PDF
    Hager RoHS report FL168A
    PDF

    Downloads

    • Product image

      Image FL168A | Hager

      Product Image FL168A

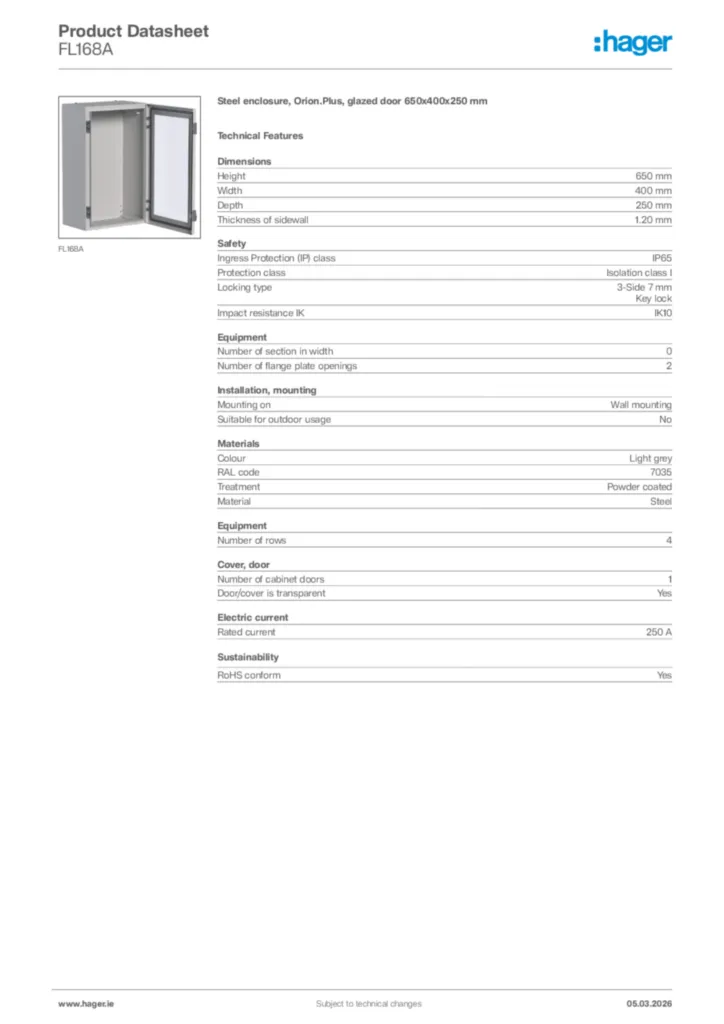

    • Product datasheet

      Image Hager Product data sheet FL168A | Hager

      Hager Product data sheet FL168A

      Steel enclosure, Orion.Plus, glazed door 650x400x250 mm

      PDF

    • BIM Revit objects

      Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,30 MB
      Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 250 mm - English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,38 MB
