Steel enclosure, Orion.Plus, plain door 500x300x200 mm

FL110A

  • Distri­bu­tion systems

Steel enclosure, Orion.Plus, plain door 500x300x200 mm FL110A

EAN
3250610674048
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

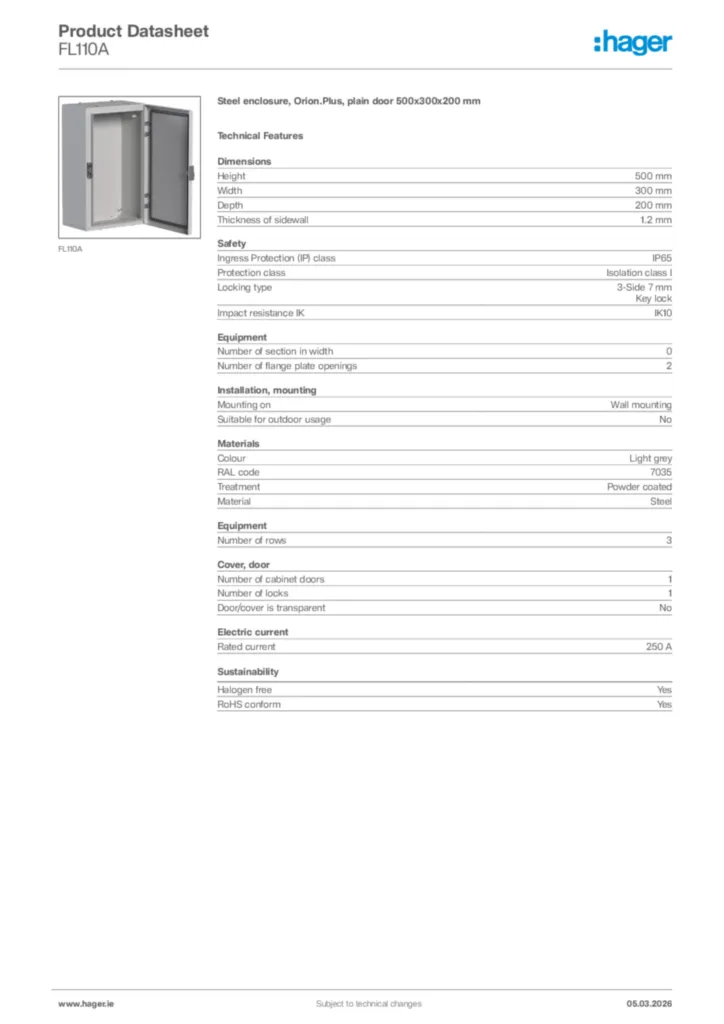

Download the data sheet

Complete your system

Optional accessories

  • Distrib­utor assembly for serial built-in device 3 products available
  • Door/­op­er­ating panel 2 products available
  • Vent­il­ator for enclosure 4 products available
  • Heater for enclosure 6 products available
  • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
  • See more 26 other products available

Complete your system

  • Distrib­utor assembly for serial built-in device
  • Door/­op­er­ating panel
  • Vent­il­ator for enclosure
  • Heater for enclosure
  • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
  • Blanking plate for enclosure
  • Lock system
  • Accessor­ies/s­pare parts for earthing and light­ning
  • Docu­ment holder
  • Mounting accessories
  • Cover strip
  • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
  • Mounting plate for distri­bu­tion board
  • DIN rail
  • Key for enclos­ures/cab­inets
  • Insert for lock system
  • FL361A

    Kit system MCB, Orion.Plus, 150x300 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL981A

    Chassis kit MCB, orion plus 3x12M 500x300 mm +S

    0.00 €  / *
    Add to a list
    Add to a list
  • FL991A

    MCB complete kit, Orion.Plus, 3x12M, 450x300 mm, System C

    0.00 €  / *
    Add to a list
    Add to a list
  • FL547A

    Steel inner door, Orion.Plus steel, 500x300 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL644A

    Polyester inner door, Orion.Plus polyester, 500x300 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL210Z

    Fan, quadro.system, 20W 57 m3/h

    0.00 €  / *
    Add to a list
    Add to a list
  • FL212Z

    Fan, quadro.system, 20W 115 m3/h

    0.00 €  / *
    Add to a list
    Add to a list
  • FL214Z

    Fan, quadro.system, 32W 240 m3/h

    0.00 €  / *
    Add to a list
    Add to a list
  • FL216Z

    Fan, quadro.system, 67W 520m3/h

    0.00 €  / *
    Add to a list
    Add to a list
  • FL252Z

    Heaters, quadro.system, 15 W 230 V AC/DC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL253Z

    Heaters, quadro.system, 30 W 230 V AC/DC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL254Z

    Heaters, quadro.system, 45 W 230 V AC/DC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL255Z

    Heaters, quadro.system, 80 W 230 V AC/DC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL256Z

    Heaters, quadro.system, 150 W 230 V AC/DC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL259Z

    Thermostat, quadro.system, 10 A 230 V AC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL258Z

    Thermostat, quadro.system, 10 A 230 V AC

    0.00 €  / *
    Add to a list
    Add to a list
  • FL711E

    Insulated front panel, Orion.Plus, 150x300 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL722E

    Insulated front panel, Orion.Plus, 200x400 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL80Z

    Pair square key inserts, Orion.Plus, 8 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL82Z

    Pair square key inserts, Orion.Plus, 6 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL93Z

    Pair triangle insert, Orion.Plus, 8 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL95Z

    Pair leave inserts, Orion.Plus, 3 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL96Z

    Triangular lock plus handle, Orion.Plus

    0.00 €  / *
    Add to a list
    Add to a list
  • FL874A

    Ground wire kit, Orion.Plus

    0.00 €  / *
    Add to a list
    Add to a list
  • FZ818

    Document holder, plastic, DIN A4, adhesive

    0.00 €  / *
    Add to a list
    Add to a list
  • FL450A

    Fixing bracket for mounting plate, Orion.Plus

    0.00 €  / *
    Add to a list
    Add to a list
  • FL670A

    Vertical connecting kit S/ORION+

    0.00 €  / *
    Add to a list
    Add to a list
  • FL863Z

    Wall ins. fixing brackets, Orion.Plus polyester

    0.00 €  / *
    Add to a list
    Add to a list
  • FL871Z

    Blanking strips 4 Mod, Quadro.Plus, 6 pieces

    0.00 €  / *
    Add to a list
    Add to a list
  • FL85Z

    Wall steel fixing brackets, Orion.Plus steel

    0.00 €  / *
    Add to a list
    Add to a list
  • FL311A

    Fixed steel mounting plate, Orion.Plus, 187x145 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL407A

    Steel mounting plate, Orion.Plus, 480x243 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL424A

    Insulated mounting plate, Orion.Plus, 435x245 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL474A

    Steel mounting plate, Orion.Plus, 480x243 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL462A

    Functional uprights, Orion.Plus, H500 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL492A

    Clamp bracket, Orion.Plus, W300 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL99Z

    Triangular key, Orion.Plus, RAL7046

    0.00 €  / *
    Add to a list
    Add to a list
  • FL77Z

    Insert lock for rotary handle, Orion.Plus, 6x6 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL81Z

    Pair square key inserts, Orion.Plus, 8 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL94Z

    Pair triangle insert, Orion.Plus, 8 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL97Z

    Pair leave inserts, Orion.Plus, 3 mm

    0.00 €  / *
    Add to a list
    Add to a list
  • FL98Z

    Pair inserts for key and sealing handle, Orion.Plus

    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Dimen­sions
  • Height
    500 mm
  • Width
    300 mm
  • Depth
    200 mm
  • Thick­ness of side­wall
    1.2 mm
Safety
  • Ingress Protec­tion (IP) class
    IP65
  • Protec­tion class
    Isol­a­tion class I
  • Locking type
    3-Side 7 mm, Key lock
  • Impact resist­ance IK
    IK10
Equip­ment
  • Number of section in width
    0
  • Number of flange plate open­ings
    2
  • Number of rows
    3
Install­a­tion, mounting
  • Mounting on
    Wall mounting
  • Suit­able for outdoor usage
    No
Mater­ials
  • Colour
    Light grey
  • RAL code
    7035
  • Treat­ment
    Powder coated
  • Material
    Steel
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    1
  • Door/­cover is trans­parent
    No
Elec­tric current
  • Rated current
    250 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

PEP - Steel enclosure, Orion.Plus, plain door 650x500x200 mm (english)
PDF
3,44 MB
REACH declaration FL110A (english)
PDF
103,10 kB
RoHS declaration FL110A (english)
PDF
103,84 kB

Downloads

  • Product image

    Image FL110A  | Hager

    Product Image FL110A

  • BIM Revit objects

    Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure -  Depth 200 mm - English - Hosted family - REVIT Family 2020 - V2022  | Hager

    Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 200 mm - English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,34 MB
    Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure -  Depth 200 mm - English - Non hosted family - REVIT Family 2020 - V2022  | Hager

    Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 200 mm - English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,41 MB
  • Declaration of conformity

    Image EU Declaration of Conformity_24.3441.06.24  | Hager

    EU Declaration of Conformity_24.3441.06.24

    Declaration of conformity en-GB 2024-06-26

    PDF
    254,37 kB
    Image UKCA Declaration of Conformity_24.3313.06.24  | Hager

    UKCA Declaration of Conformity_24.3313.06.24

    Declaration of conformity en-US 2024-06-26

    PDF
    259,47 kB
