Steel enclosure, Orion.Plus, plain door 400x300x160 mm

FL106A

  • Distri­bu­tion systems

Steel enclosure, Orion.Plus, plain door 400x300x160 mm FL106A

EAN
3250610674024
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

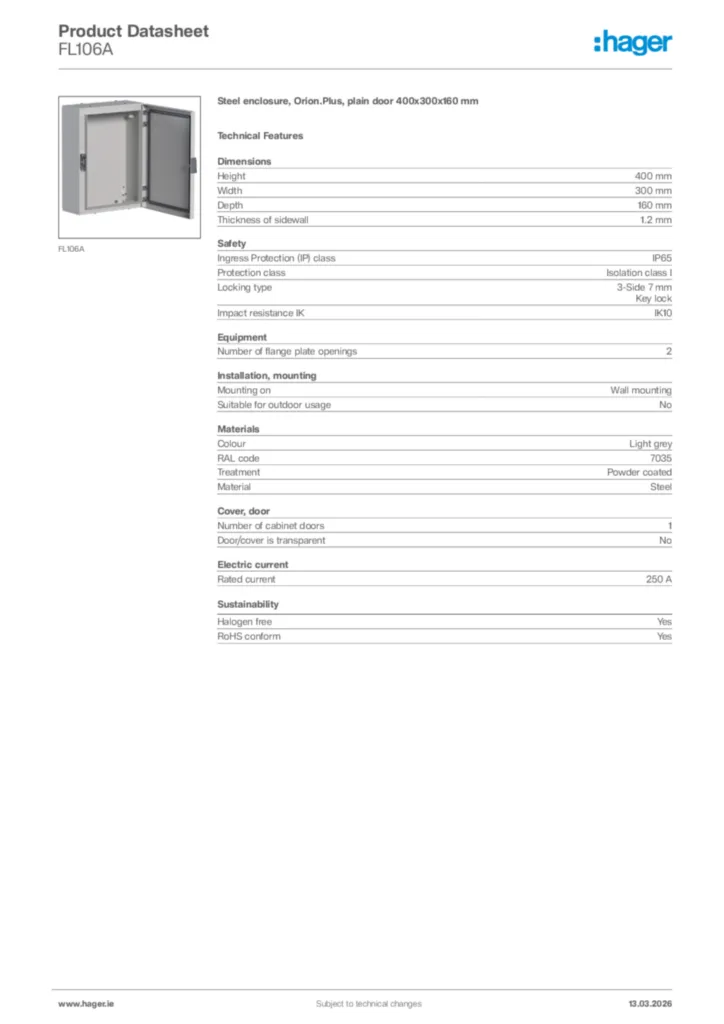

Download the data sheet

Complete your system

Optional accessories

  • Distrib­utor assembly for serial built-in device 1 products available
  • Door/­op­er­ating panel 1 products available
  • Vent­il­ator for enclosure 4 products available
  • Heater for enclosure 6 products available
  • Ther­mo­stat/hy­gro­stat (switchgear cabinet) 1 products available
  • See more 22 other products available

Complete your system

  • Distrib­utor assembly for serial built-in device
  • Door/­op­er­ating panel
  • Vent­il­ator for enclosure
  • Heater for enclosure
  • Ther­mo­stat/hy­gro­stat (switchgear cabinet)
  • Blanking plate for enclosure
  • Lock system
  • Accessor­ies/s­pare parts for earthing and light­ning
  • Mounting accessories
  • Cover strip
  • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
  • Mounting plate for distri­bu­tion board
  • DIN rail
  • Key for enclos­ures/cab­inets
  • Insert for lock system
  • FL361A

    Kit system MCB, Orion.Plus, 150x300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL545A

    Steel counterdoor, Orion.Plus sheet metal, H400 W300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL210Z

    Fan, quadro.system, 20W 57 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL212Z

    Fan, quadro.system, 20W 115 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL214Z

    Fan, quadro.system, 32W 240 m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL216Z

    Fan, quadro.system, 67W 520m3/h
    0.00 €  / *
    Add to a list
    Add to a list
  • FL252Z

    Heaters, quadro.system, 15 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL253Z

    Heaters, quadro.system, 30 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL254Z

    Heaters, quadro.system, 45 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL255Z

    Heaters, quadro.system, 80 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL256Z

    Heaters, quadro.system, 150 W 230 V AC/DC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL259Z

    Thermostat, quadro.system, 10 A 230 V AC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL258Z

    Thermostat, quadro.system, 10 A 230 V AC
    0.00 €  / *
    Add to a list
    Add to a list
  • FL711E

    Insulated front panel, Orion.Plus, 150x300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL80Z

    Pair square key inserts, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL82Z

    Pair square key inserts, Orion.Plus, 6 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL93Z

    Pair triangle insert, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL95Z

    Pair leave inserts, Orion.Plus, 3 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL96Z

    Triangular lock plus handle, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL874A

    Ground wire kit, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL450A

    Fixing bracket for mounting plate, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FL670A

    Vertical connecting kit S/ORION+
    0.00 €  / *
    Add to a list
    Add to a list
  • FL863Z

    Wall ins. fixing brackets, Orion.Plus polyester
    0.00 €  / *
    Add to a list
    Add to a list
  • FL871Z

    Blanking strips 4 Mod, Quadro.Plus, 6 pieces
    0.00 €  / *
    Add to a list
    Add to a list
  • FL85Z

    Wall steel fixing brackets, Orion.Plus steel
    0.00 €  / *
    Add to a list
    Add to a list
  • FL311A

    Fixed steel mounting plate, Orion.Plus, 187x145 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL405A

    Steel mounting plate, Orion.Plus, 380x243 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL424A

    Insulated mounting plate, Orion.Plus, 435x245 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL492A

    Clamp bracket, Orion.Plus, W300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL99Z

    Triangular key, Orion.Plus, RAL7046
    0.00 €  / *
    Add to a list
    Add to a list
  • FL77Z

    Insert lock for rotary handle, Orion.Plus, 6x6 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL81Z

    Pair square key inserts, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL94Z

    Pair triangle insert, Orion.Plus, 8 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL97Z

    Pair leave inserts, Orion.Plus, 3 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL98Z

    Pair inserts for key and sealing handle, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Dimen­sions
  • Height
    400 mm
  • Width
    300 mm
  • Depth
    160 mm
  • Thick­ness of side­wall
    1.2 mm
Safety
  • Ingress Protec­tion (IP) class
    IP65
  • Protec­tion class
    Isol­a­tion class I
  • Locking type
    3-Side 7 mm, Key lock
  • Impact resist­ance IK
    IK10
Equip­ment
  • Number of flange plate open­ings
    2
Install­a­tion, mounting
  • Mounting on
    Wall mounting
  • Suit­able for outdoor usage
    No
Mater­ials
  • Colour
    Light grey
  • RAL code
    7035
  • Treat­ment
    Powder coated
  • Material
    Steel
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Elec­tric current
  • Rated current
    250 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

REACH declaration FL106A (english)
PDF
103,10 kB
RoHS declaration FL106A (english)
PDF
103,84 kB

Downloads

  • Product image

    Image FL106A | Hager

    Product Image FL106A

  • BIM Revit objects

    Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 160 mm - English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 160 mm - English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,28 MB
    Image Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 160 mm - English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Orion Plus.Enclosure - IP65 - Class I - Steel enclosure - Depth 160 mm - English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,36 MB
