Compact twilight switch enhanced 16A EE702
EAN
3250612257027
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Technical properties
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp2,300 W
Settings
-
Switch off delay time40 s
-
Switch on delay time10 s
Use conditions
-
Storage/transport temperature-30 - +60 °C
Connection
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 4 mm²
Texts
-
Installation modeWith pipe clamp for mast fixing, Installation possible on flush-mounted box, For wall and mast assembly
-
Type of connectionWith screw terminals
Electric current
-
Switching current10 A
Dimensions
-
Height95 mm
-
Width80 mm
-
Depth42.50 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

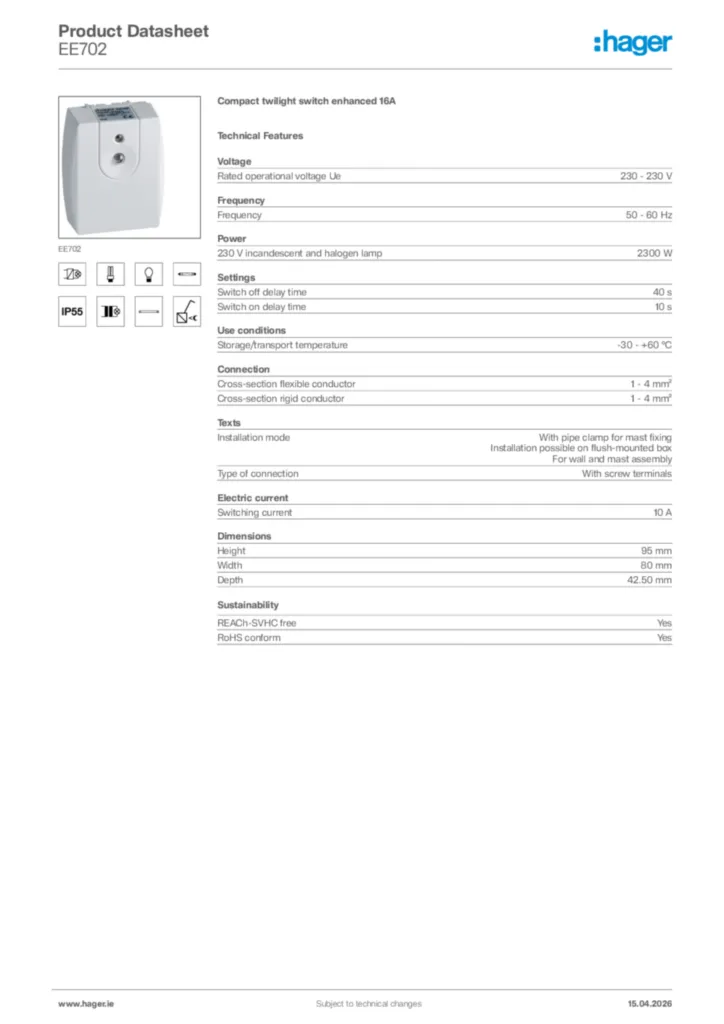

Hager Product data sheet EE702
