Compact twilight switch basic 8A EE701
Phase out product: please contact your electrical wholesaler for availability
catalog.product_page.follow_up.title
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
catalog.pageproduct.tab_additional_title.link
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp1,000 W
-
Power incandescent lamp0 - 1,000 W
Settings
-
Switch off delay time120 s
-
Switch on delay time40 s
Use conditions
-
Storage/transport temperature-30 - +60 °C
-
Operating temperature-25 - +45 °C
Connection
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 4 mm²
-
Conductor cross-section1 - 4 mm²
-
Type of contacts1NO
Texts
-
Installation modeWith pipe clamp for mast fixing, Installation possible on flush-mounted box, For wall and mast assembly
-
Type of connectionWith screw terminals
Electric current
-
Switching current8 A
Dimensions
-
Height95 mm
-
Width80 mm
-
Depth42.50 mm
Lighting
-
Brightness measuring range10 - 30 lx
-
Max. load fluorescent lamp400 VA
-
Photocell sensitivity10 - 30 lx
Power supply
-
Supply voltage230 V +10%/-15%
Controls and indicators
-
Applicable with movement sensorcatalog.pageproduct.attribute_boolean.yes
Detection
-
Type of sensorLight sensor integrated
Cable
-
Cable length0.10 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

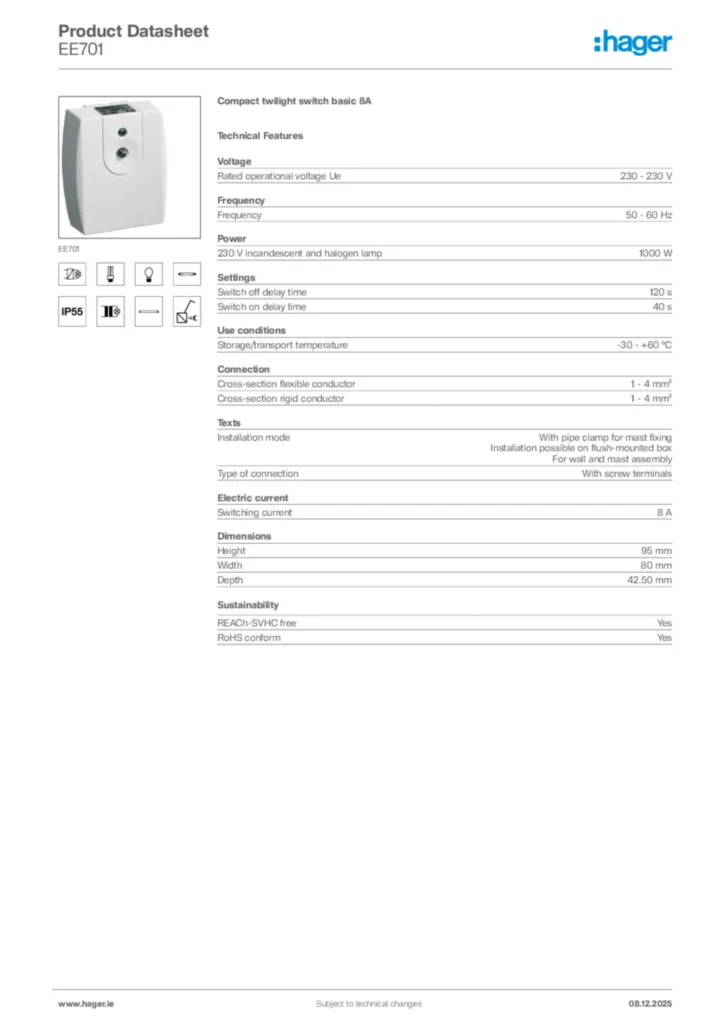

Hager Product data sheet EE701
