1 Phase kWhmeter direct 3x80A 4M S0

ECP180T

1 Phase kWhmeter direct 3x80A 4M S0 ECP180T

EAN
3250612230402
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.


  • Technical properties
  • Environmental value
  • Documentations

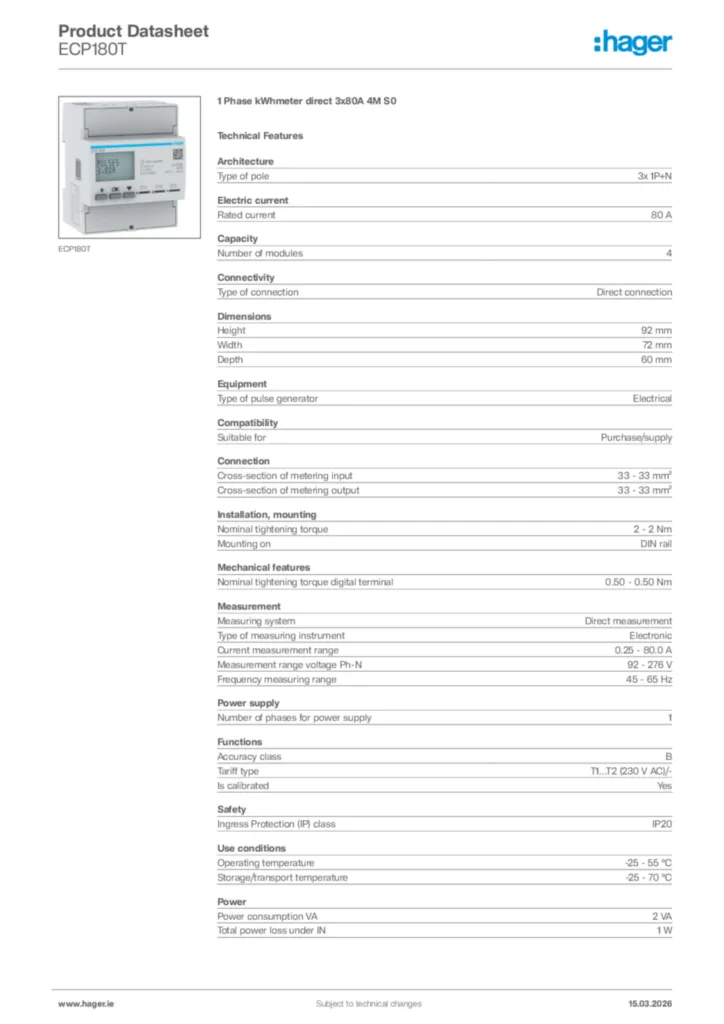

Download the data sheet

Technical properties

Archi­tec­ture
  • Type of pole
    3x 1P+N
Elec­tric current
  • Rated current
    80 A
  • Maximum meas­uring circuit current
    80 A
Capa­city
  • Number of modules
    4
Connectivity
  • Type of connec­tion
    Direct connec­tion
Dimen­sions
  • Height
    92 mm
  • Width
    72 mm
  • Depth
    60 mm
Equip­ment
  • Type of pulse gener­ator
    Elec­trical
Compat­ib­ility
  • Suit­able for
    Purchase/supply
Connec­tion
  • Cross-sec­tion of metering input
    33 - 33 mm²
  • Cross-sec­tion of metering output
    33 - 33 mm²
Install­a­tion, mounting
  • Nominal tight­ening torque
    2 - 2 Nm
  • Mounting on
    DIN rail
Mech­an­ical features
  • Nominal tight­ening torque digital terminal
    0.50 - 0.50 Nm
Meas­ure­ment
  • Meas­uring system
    Direct meas­ure­ment
  • Type of meas­uring instru­ment
    Elec­tronic
  • Current meas­ure­ment range
    0.25 - 80.0 A
  • Meas­ure­ment range voltage Ph-N
    92 - 276 V
  • Frequency meas­uring range
    45 - 65 Hz
Power supply
  • Number of phases for power supply
    1
Func­tions
  • Accuracy class
    B
  • Tariff type
    T1...T2 (230 V AC)/-
  • Is calib­rated
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -25 - 55 °C
  • Stor­age/trans­port temper­ature
    -25 - 70 °C
Power
  • Power consump­tion VA
    2 VA
  • Total power loss under IN
    1 W
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

Certifications and documents

REACH declaration ECP180T (english)
PDF
103,10 kB
RoHS declaration ECP180T (english)
PDF
103,59 kB

Downloads

  • Product image

    Image ECP180T | Hager

    Product Image ECP180T

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2020-01-01

    PDF
    110,84 kB
