Earth leakage add-on-block 4P 125A Adjustable type AC

BTC480E

  • Modular devices

Earth leakage add-on-block 4P 125A Adjustable type AC BTC480E

EAN
3250611500056
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

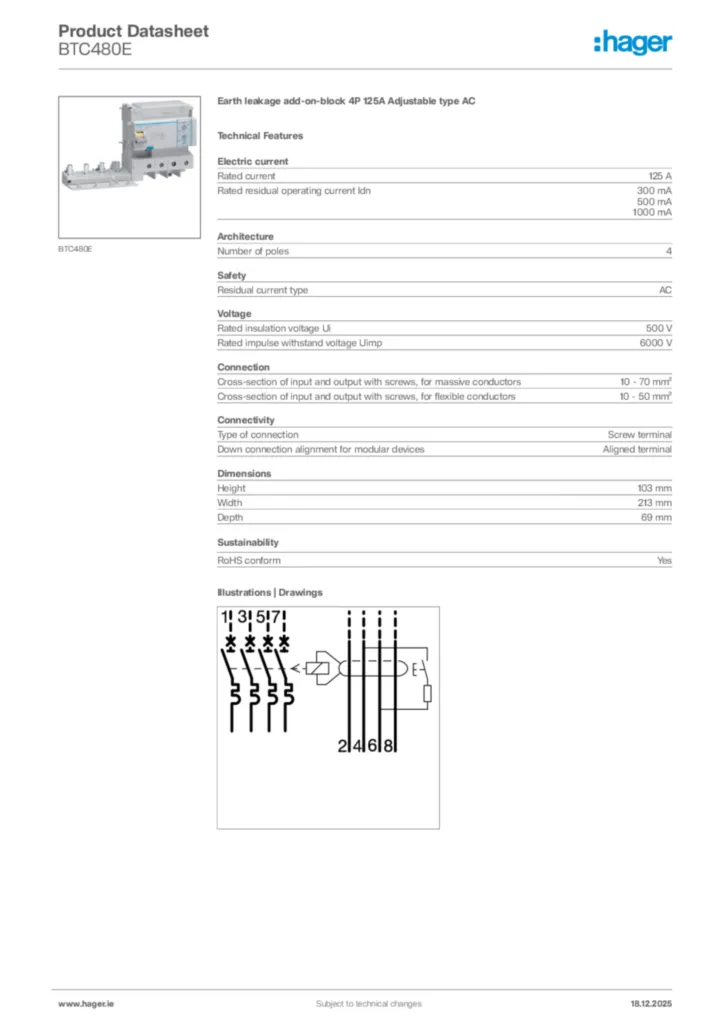

Download the data sheet

Technical properties

Elec­tric current
  • Rated current
    125 A
  • Rated residual oper­ating current Idn
    300 mA, 500 mA, 1000 mA
Archi­tec­ture
  • Number of poles
    4
Safety
  • Residual current type
    AC
Voltage
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    6,000 V
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    10 - 70 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    10 - 50 mm²
Connectivity
  • Type of connec­tion
    Screw terminal
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    103 mm
  • Width
    213 mm
  • Depth
    69 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

Certifications and documents

PEP - Earth leakage add-on block 4P 63A 30mA A Class (english)
PDF
666,81 kB
REACH declaration BTC480E (english)
PDF
103,34 kB
RoHS-declaration 2023-10-20 (english)
PDF
33,40 kB

Downloads

  • Product image

    Image BTC480E | Hager

    Product Image BTC480E

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-11-10

    PDF
    920,46 kB
