Touch Panel 7", Android WDI070

Name: WDI070
Brand: Hager
SKU: WDI070

EAN

3250617032605

Packaging

1 Piece

This product is unfortunately no longer available. However, this page remains available for information purposes. Please contact our Customer Service team on 1300 850 253 in order to find an alternative product.

Technical properties
Documentations
Accessories

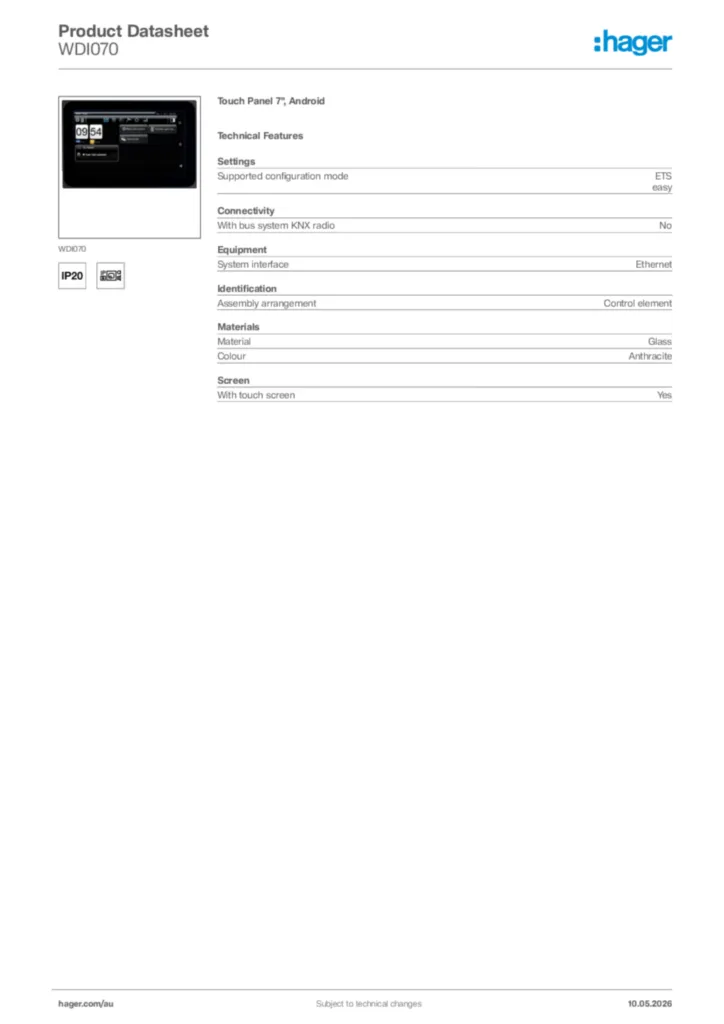

Download the data sheet

Technical properties

Touch function

Yes
Function

multi-touch function for the connection of multiple actions, e.g. to activate a function with simultaneous setting of a function value

Category / ports

RJ45 Port for LAN connection

Operation

depending on the software visualisation one and two surface operation, stepless configuration based on sliding and page scrolling by swiping are supported
Indication / display

suitable for horizontal domovea visualisation ; signal and operating panel with touch-sensitive, capacitive TFT colour display in 16:9 format, with Multi touch operation ; for visualisation of domovea software and display of preconfigured functions, measured values and data

Connection

RJ45 cable in scope of delivery
Ethernet data rate

10/100 Mbit/s
Connectors / jacks

with USB/Mini USB type A adapter cable ; with RJ45 connector kit from connector and patch cable
Interface

Connection to KNX system via domovea server

Auxiliary voltage

18…48 V DC
Power over Ethernet (PoE)

18…48 V DC

Assembling height

12 mm

Power consumption

< 10 W

Resolution graphical display

800 x 480 px
TFT screen size

7 ″
Display

no

RAM

512 MB

Material family

Glass

Installation mode

for flush-mounted and hollow-wall mounting ; for vertical and horizontal mounting

Conductor cross-section (flexible), with wire end sleeve

0.75 mm²
Conductor cross-section (rigid)

1.5 mm²
Connection

Mini-USB 2.0 jack e.g. for external storage media or updates on the upper display edge is accessible without dismantling ; 2 USB 2.0 connections on the rear

Supported configuration modes

system, easy

Component

Microphone and loudspeaker with echo suppression

Interface type

Ethernet
Text field

No
Light intensity

300 cd/m²
Processor

1 GHz
Lighting

Display illumination can be switched on automatically using brightness sensor
low noise

silent, long-lasting convection cooling without fan
Cylinder

card slot with 8 GB SDHC card

General standards

EN 55022 ; EN 55024 ; EN 60950-1

Software

Operating system: OS Android 4.1 ; Applications (Apps) available in preinstalled Android launcher - without acces to external apps ; Integration of door communication functions in the domovea client or Elcom VideoFON client

Operating temperature

5…45 °C
Storage/transport temperature

-20…60 °C
Relative humidity (without condensation)

10…90 %

Composition

Control element
Main design line

KNX
