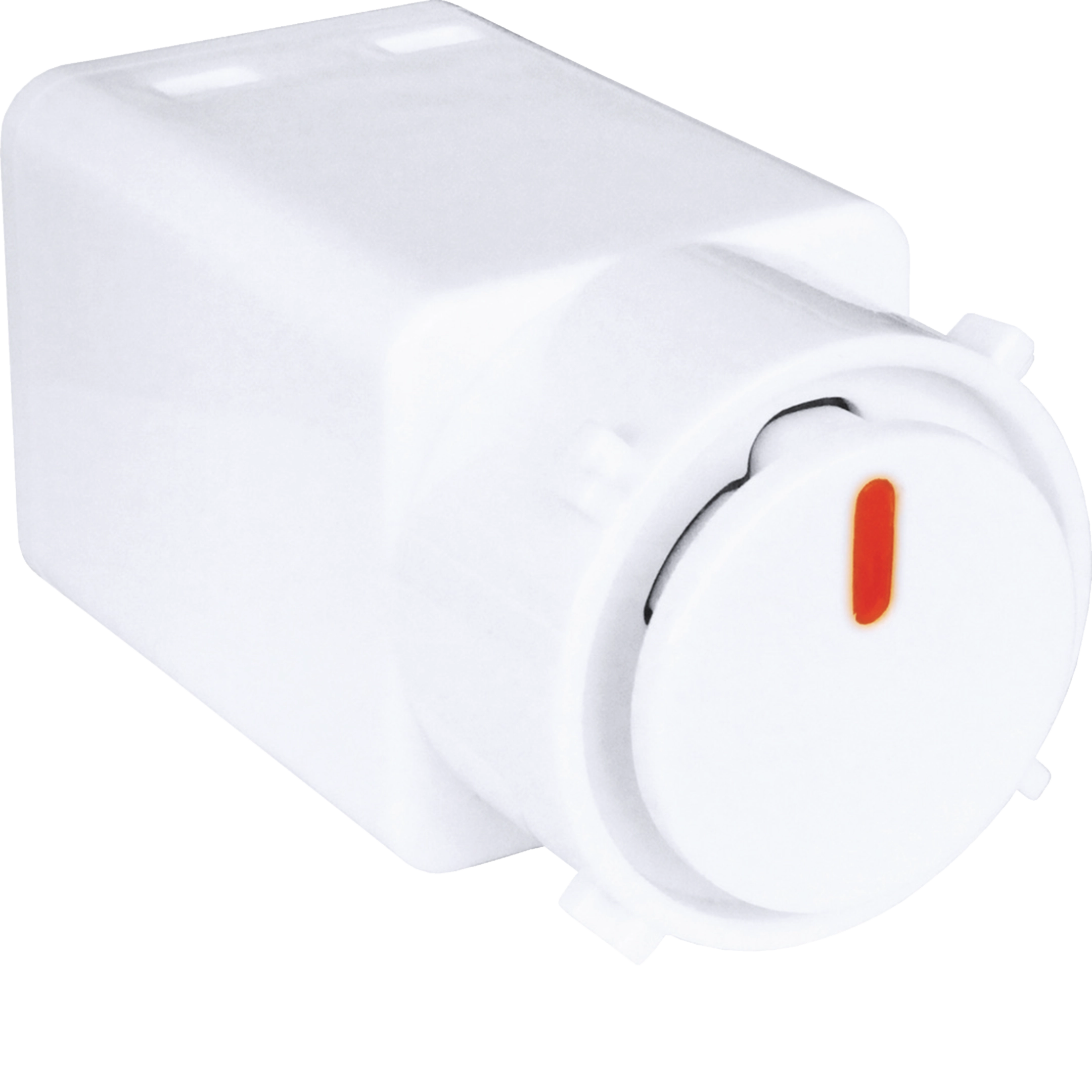

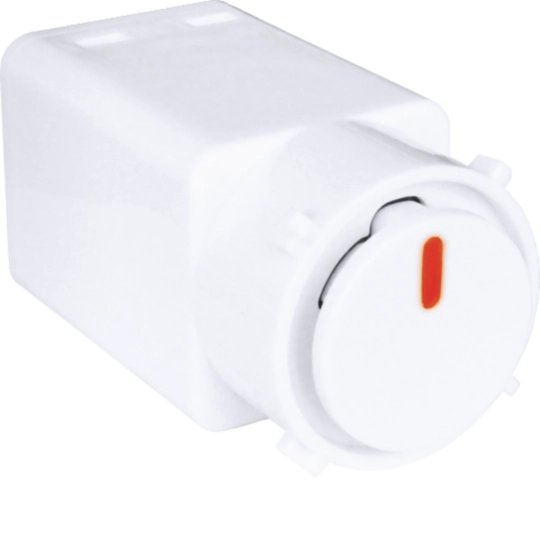

Mechanism, dimmer, universal push button WBMD400UPB
EAN
3250617000758
Packaging
5
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. However, this page remains available for information purposes. Please contact our Customer Service team on 1300 850 253 for more information.
Technical properties
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourWhite
-
MaterialPolycarbonate (PC)
Dimensions
-
Height24 mm
-
Width24 mm
-
Depth51 mm
Architecture
-
Control/operation elementSingle push button
Power
-
Power consumption standby0,10 W
Lighting
-
Dimmable 230 V LED lamp3 - 70 W
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
Dimming principleAutomatic setting of load-dependent switching principle (autodetect process), Phase cut-on or cut-off according to load type, self-learning
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Installation modeRotoLoc®
-
Type of connectionWith screw terminals
-
Extension unit inputWith extension unit input for slave push-button WBMESL
-
Operation and controlNo Bluetooth interface
Downloads
-
Product image
-
Product datasheet
Hager Product data sheet WBMD400UPB
Mechanism, dimmer, universal push button
PDF -
Installation manual
Manual for WBMD400xx Universal-Dimmer (EN, 2016-09)
Installation manual en-GB 2016-05-30
PDF1,17 MB
