Obsolete

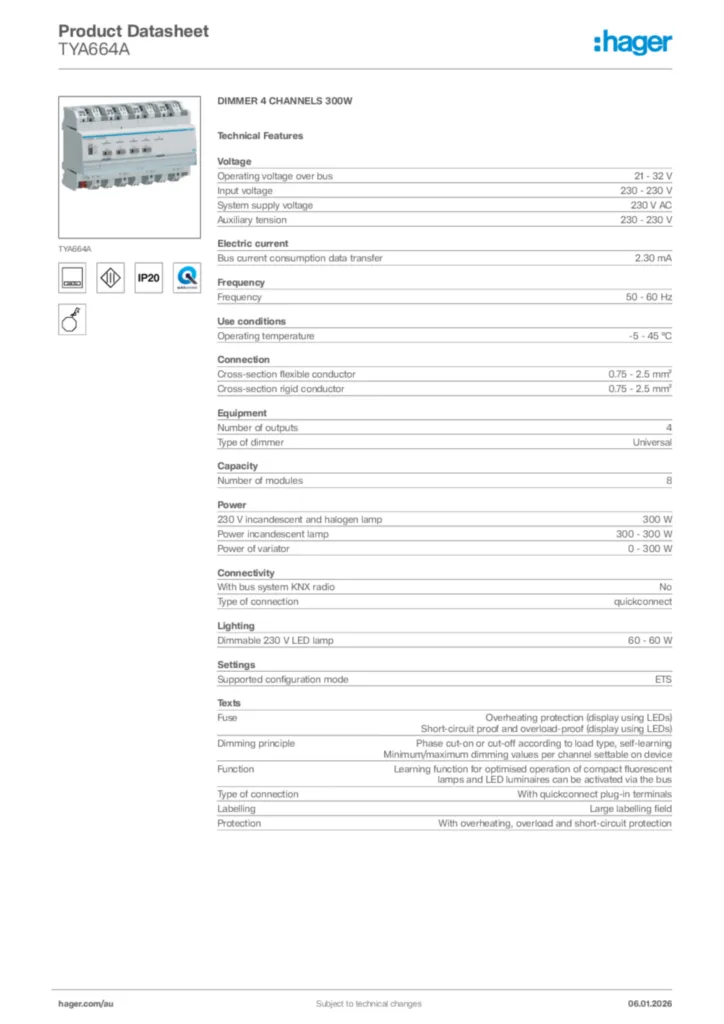

DIMMER 4 CHANNELS 300W TYA664A
EAN
3250616059474
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable
Technical properties
Voltage
-
Operating voltage over bus21 - 32 V
-
Input voltage230 - 230 V
-
System supply voltage230 V AC
-
Auxiliary tension230 - 230 V
Electric current
-
Bus current consumption data transfer2,30 mA
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Equipment
-
Number of outputs4
-
Type of dimmerUniversal
Lighting
-
Dimmable 230 V LED lamp60 - 60 W
Capacity
-
Number of modules8
Power
-
230 V incandescent and halogen lamp300 W
-
Power incandescent lamp300 - 300 W
-
Power of variator0 - 300 W
Connectivity
-
With bus system KNX radioNo
-
Type of connectionquickconnect
Settings
-
Supported configuration modeETS
Texts
-
FuseOverheating protection (display using LEDs), Short-circuit proof and overload-proof (display using LEDs)
-
Dimming principlePhase cut-on or cut-off according to load type, self-learning, Minimum/maximum dimming values per channel settable on device
-
FunctionLearning function for optimised operation of compact fluorescent lamps and LED luminaires can be activated via the bus
-
Type of connectionWith quickconnect plug-in terminals
-
LabellingLarge labelling field
-
ProtectionWith overheating, overload and short-circuit protection
Downloads
-
Product image
-
Installation manual
Manual for TYA664A-TXA664A LV Rotary dimmer (EN, 2015-06)
Installation manual en-GB 2015-04-01
PDF1,19 MB -
KNX product database
ETS Database for TYA664A
KNX product database en-GB, fr-FR, de-DE 2020-01-01
KNXPROD437,72 kB -
Application Guide
Description d'application ETS TYA661AB TYA663A EN
Application Guide en-GB 2013-10-28
PDF5,06 MB
