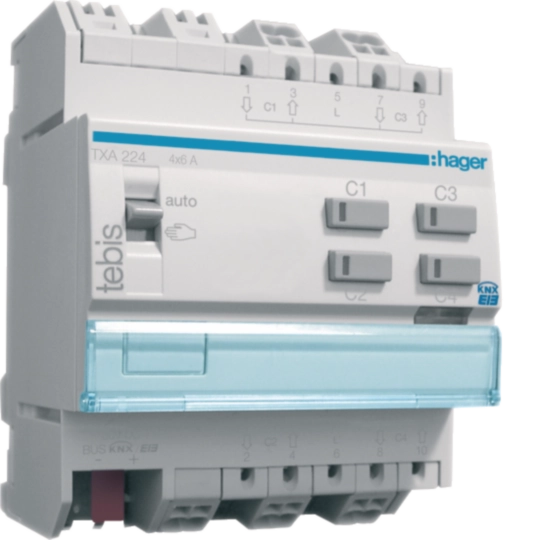

Output device for 4 shutters or blinds 230V~ TXA224
EAN
3250616049635
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemKNX
-
Number of blinds/shutters outputs4
Functions
-
Bus module detachableNo
Configuration
-
Number of modules4
Controls and indicators
-
Indicator lampyes
Main electrical features
-
Type of supply voltageDC
Voltage
-
System supply voltage30V DC via bus
Electric current
-
Number of entry circuits0
-
Maximum switching current6 A
Power
-
Contact rating with 230 V in AC11380 W
-
Total power loss under IN2 W
Connection
-
Connection cross-sect. flexible conductor0,75 / 2,5mm²
-
Connection cross-sect. rigid cable0,75 / 2.5mm²
-
Number of contacts4
-
Type of connectionquick connect
Scope of delivery
-
Bus connection includedYes
Equipment
-
Bidirectional radio frequencyNo
Use conditions
-
Operating temperature0…45 °C
-
Storage/transport temperature-20…70 °C
Identification
-
Device familyTXA
Downloads
-
Product image
-
Instruction manual
Module 4 sorties volets roulants TXA223 et/ou stores TXA224 4x6A 230V AC
PDF1 MB -
KNX product database
Logiciel d'application ETS du TXA224
VD2346 KB -
Function description
Description d'application TXA22x_TR221
PDF1 MB
More documentation
