Presence detector 360° monobloc KNX multi-channels TCC530E

EAN

3250617579261

Packaging

1 Piece

Technical properties
Documentations
Accessories

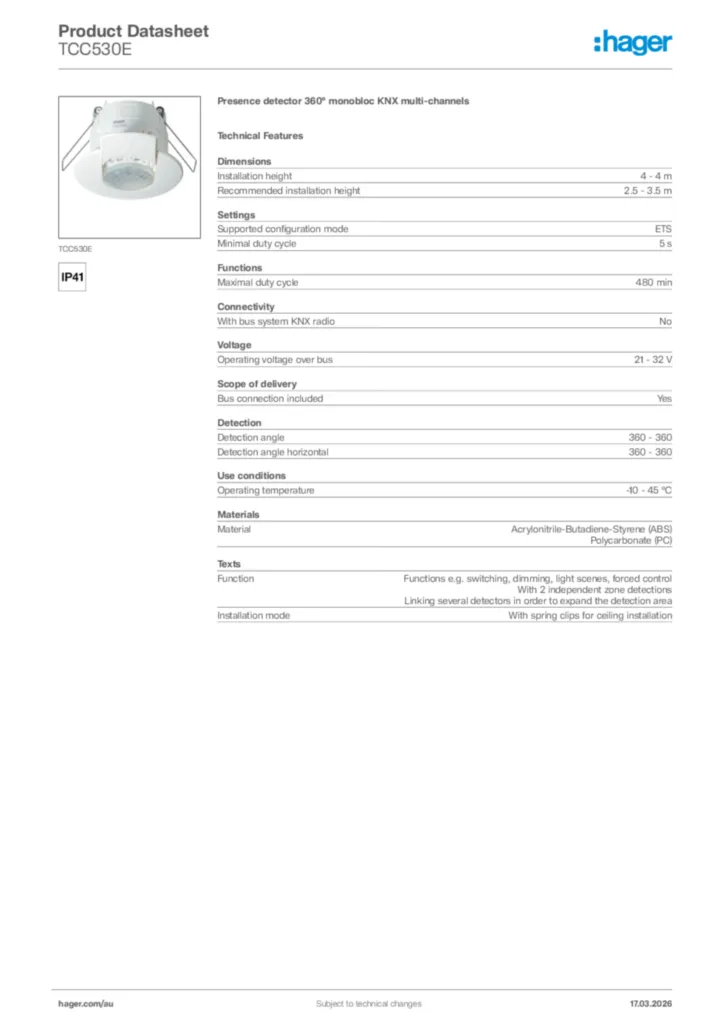

Download the data sheet

Technical properties

Bus system

KNX

Function

Linking several detectors in order to expand the detection area ; Functions e.g. switching, dimming, light scenes, forced control ; with 2 independent zone detections

Channels

two separate function channels for brightness-dependent and brightness-independent functions

Button / push-button

with programming button

Number of binary inputs

0

Operating voltage over bus

21…32 V DC

Dimensions (Ø x H)

78 x 70 mm
Installation opening Ø

60…63 mm
Recommended installation height

2.5…3.5 m
Installation wall thickness

10…28 mm

Detection Method

presence

Detection angle

360 °
Detection angle

360 °
Angle of vertical detection

55 °
Detection field Ø, on floor

≈ 7 m
Detection field Ø, at desk height

≈ 5 m
Frontal detecting distance

7 m
Side detecting distance

8 m

Colour

white
RAL colour

RAL 9010 - Pure white
Surface appearance

matt

Brightness measurement range

5 / 1000 Lux

Maximum Mounting Height

4 m
Installation mode

with spring clips for ceiling installation

Bus coupling unit

with integral bus coupling unit
Bus connection

bus connection via connecting terminal

Supported configuration modes

system
Delay time, adjustable

1 mn…1 h
Setting

with potentiometers for setting the response brightness and delay time without dismantling

Bus connection included

Yes

Number of channels

2
Angle of horizontal detection

360 °

Operating temperature

-10…45 °C
Storage/transport temperature

-20…60 °C
Energy-saving

energy saving by presence and brightness-controlled lighting control

Main design line

KNX

Downloads

Product image

Product Image TCC530E
Instruction manual

Instruction manuals for TCC530E

PDF

4 MB
Technical information

PDF

2 MB
KNX product database

Logiciel d'application ETS du TCC530E

KNXPROD

109 KB
Declaration of conformity

Declaration

PDF

106 KB

More documentation
