    • TCC510S
    EAN
    3250617579254
    Packaging
    1 Piece

    Presence detector 360° monobloc KNX, white TCC510S

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Presence detector 360° monobloc KNX, white

    TCC510S

    • Accessories
    • Technical properties
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for move­ment sensor 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for move­ment sensor
    • EE807

      Remote control for settings for presence detectors 360° monobloc
      EUR 0.00  / *
    • EE808

      Remote control for customer for presence detectors 360° monobloc
      EUR 0.00  / *

    Technical properties

    Dimen­sions
    • Install­a­tion height
      4 - 4 m
    • Recom­mended install­a­tion height
      2,5 - 3,5 m
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    • Minimal duty cycle
      5 s
    Func­tions
    • Maximal duty cycle
      480 min
    Connectivity
    • With bus system KNX radio
      No
    Voltage
    • Oper­ating voltage over bus
      21 - 32 V
    Scope of delivery
    • Bus connec­tion included
      Yes
    Elec­tric current
    • Bus current consump­tion data transfer
      10 mA
    Detec­tion
    • Detec­tion angle
      360 - 360
    • Detec­tion angle hori­zontal
      360 - 360
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 45 °C
    Mater­ials
    • Material
      Acryloni­trile-Butadiene-Styrene (ABS), Polycar­bonate (PC)
    Texts
    • Func­tion
      Linking several detectors in order to expand the detec­tion area
    • Install­a­tion mode
      With spring clips for ceiling install­a­tion

    Downloads

    • Product image

      Image TCC510S | Hager Australia

      Product Image TCC510S

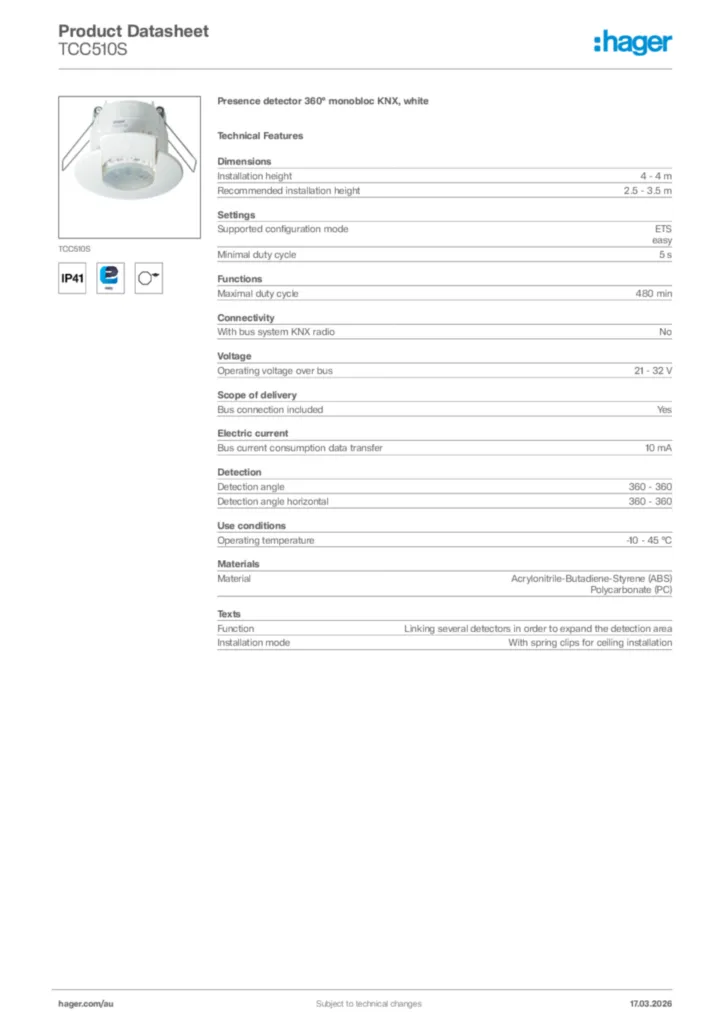

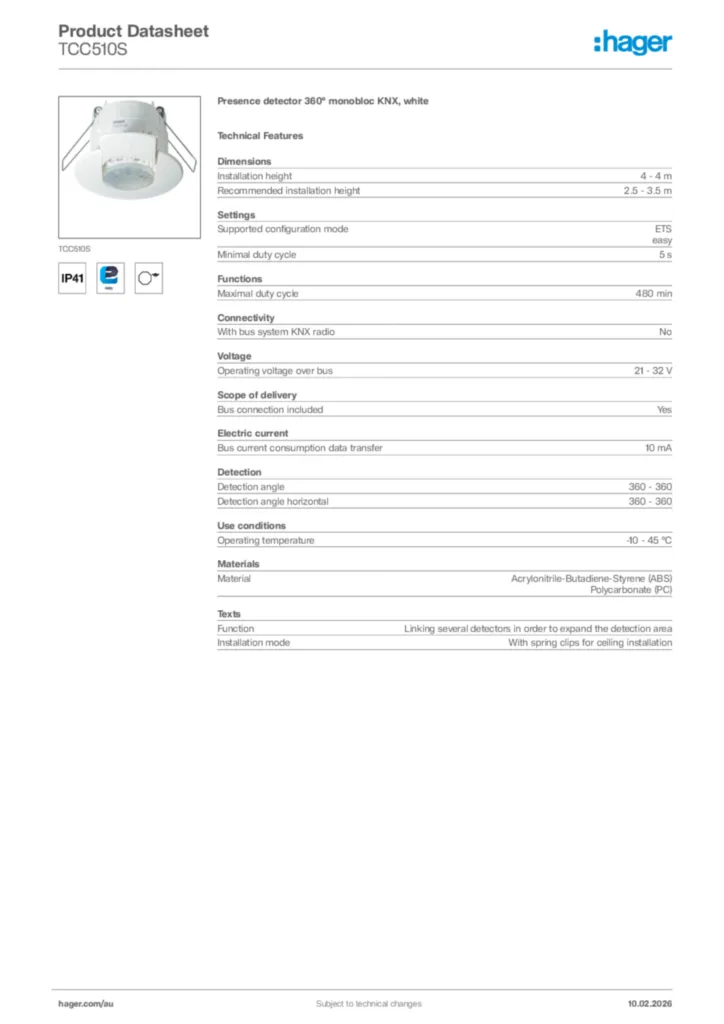

    • Product datasheet

      Image Hager Product data sheet TCC510S | Hager Australia

      Hager Product data sheet TCC510S

      Presence detector 360° monobloc KNX, white

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2011-04-29 | Hager Australia

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2011-04-29

      PDF
      1,93 MB
      Image Installation manual en-GB, fr-FR, pl-PL 2017-06-12 | Hager Australia

      Installation manual en-GB, fr-FR, pl-PL 2017-06-12

      PDF
      671,65 kB

    • KNX product database

      Image Logiciel d'application ETS du TCC510S | Hager Australia

      Logiciel d'application ETS du TCC510S

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      36,81 kB
      Image Logiciel d'application ETS du TCC510S | Hager Australia

      Logiciel d'application ETS du TCC510S

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      53,64 kB

    • Application Guide

      Image Description d'application ETS TCC510S | Hager Australia

      Description d'application ETS TCC510S

      Application Guide en-GB, pl-PL 2012-02-23

      PDF
      1,76 MB

    • Function description

      Image Description d'application TX100 TCC510S | Hager Australia

      Description d'application TX100 TCC510S

      Function description en-GB 2020-01-01

      PDF
      1,18 MB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2021-11-17

      PDF
      125,66 kB
