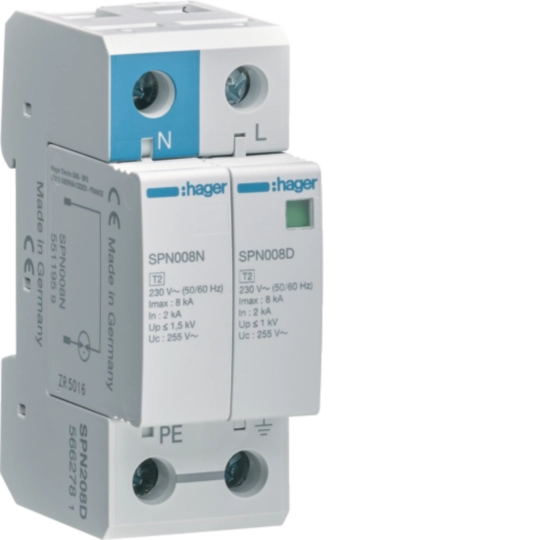

SPD 2P pluggable 8kA class 2 with indicator SPN208D
EAN
3250615662781
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable.
Technical properties
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Continuous operating voltage Uc according to IEC 61643-1255 V
-
Voltage protection level Up according to IEC 61643-11,50 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,50 kV
-
Voltage level Up L-N/PEN IEC 61643-111000 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 616432 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE8 kA
Dimensions
-
Height90 mm
-
Width35,5 mm
-
Depth64 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque5 - 5 Nm
Downloads
-
Product image
-
Product datasheet

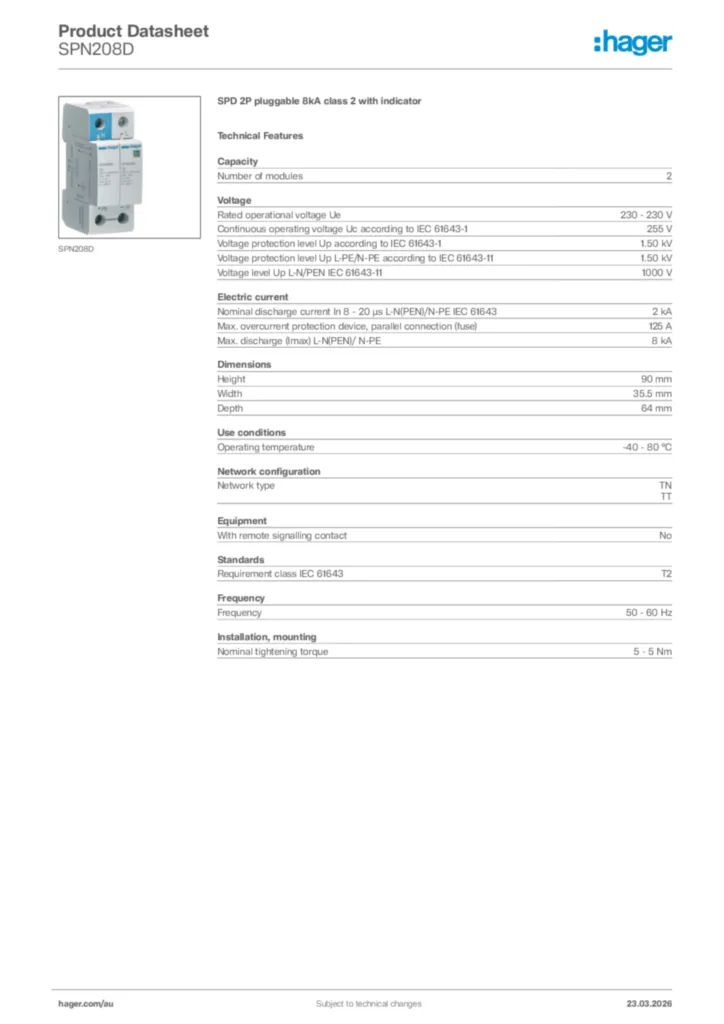

Hager Product data sheet SPN208D
