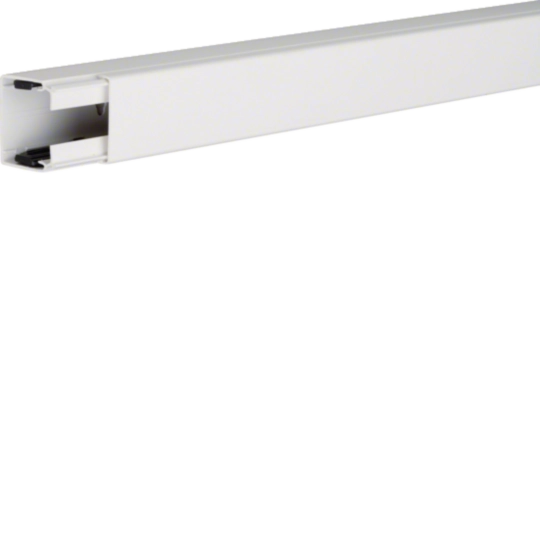

LF4004009001 - Trunking from PVC LF 40x40mm cream white
Image LF4004009001 of the product Hager Australia | Hager Australia
LF4004009001 - Trunking from PVC LF 40x40mm cream white
Image LF4004009001 of the product Hager Australia | Hager Australia

Trunking from PVC LF 40x40mm cream white LF4004009001

EAN
4012740138154
Packaging
32 MTRs

Technical properties

Connectivity
  • Trunking coupling
    Pre-equiped with couplers
Dimensions
  • Trunking height
    40 mm
  • Length
    2000 mm
  • Trunking width
    40 mm
  • Distance bottom-punch along trunking-direction
    125 mm
Capacity
  • Maximum number of cables (Ø 11 mm, 50% fill)
    6
  • Maximum number of cables (Ø 11 mm, 50% fill)
    6
Cover, door
  • Lid shape
    loose
Materials
  • Colour
    cream white
  • RAL colour
    RAL 9001 - Cream
  • Material
    PVC
  • Material group
    plastic
  • Type of surface treatment
    untreated
  • Transparent
    No
Cable
  • Internal/useful cross section
    900 mm²
Equipment
  • Number of fix dividers
    0
  • Number of plugable separators
    0
  • Compartment quantity
    1
  • Cable retainers per meter
    0
Standards
  • European directive RoHs
    voluntary compliance
temperatur
  • Ambient temperature
    -5…65 °C
