    • Home
    • Catalog
    • Main Switchgear
    • Circuit Protec­tion
    • MCCBs - Accessories
    • HXA003H
    EAN
    3250613346331
    Packaging
    1 Piece
    • MCCBs - Accessories

    Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630) HXA003H

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Available soon

    Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)

    HXA003H

    • Technical properties
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Power
    • Inrush power absorbed
      1,68 VA
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Voltage
    • Command voltage AC
      100 - 120 V
    • Command voltage DC
      0 - 0 V
    • Rated oper­a­tional voltage Ue
      100 - 120 V
    • Rated oper­a­tional voltage in DC
      0 - 0 V

    Downloads

    • Product image

      Image HXA003H | Hager Australia

      Product Image HXA003H

    • Product datasheet

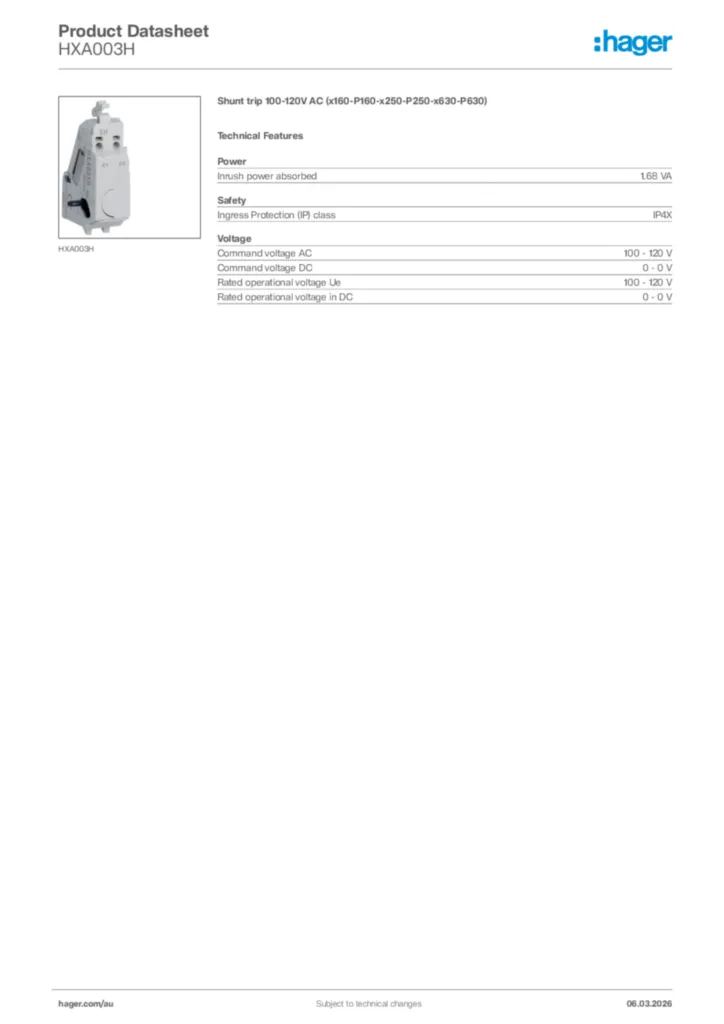

      Image Hager Product data sheet HXA003H | Hager Australia

      Hager Product data sheet HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)

      PDF

    • Installation manual

      Image Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06) | Hager Australia

      Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)

      Installation manual International 2017-06-20

      PDF
      6,65 MB

    • Handbook

      Image Technical catalogue | Hager Australia

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,86 MB
