Obsolete
Delay off Timer EZN002
EAN
3250612469987
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable
Technical properties
Frequency
-
Frequency50 - 60 Hz
Power
-
Power consumption during operation15 VA
-
Power loss at full load2 W
-
230 V incandescent and halogen lamp450 W
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 70 °C
Connection
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Number of contacts1
-
Type of contacts1x changeover
Capacity
-
Number of modules1
Texts
-
Switch modeChange-over contact, usable as NC or NO
-
FunctionFunctions: On delay, off delay, single shot leading edge/single shot trailing edge, pulse shaping, flashing symmetrically, contact open/closed
-
Type of connectionWith screw terminals
-
Installation modeFor mounting on DIN rail
Dimensions
-
Height85 mm
-
Width17,50 mm
-
Depth58 mm
Electric current
-
Acceptable current rating AC18 A
Equipment
-
Number of NC contacts0
-
Number of NO contacts0
-
Switch off delayNo
-
Switch on delayYes
Settings
-
Time delay0.1 S - 10 h
Voltage
-
Type voltage supplyAC/DC
Downloads
-
Product image
-
Installation manual
Relais temporisé EZN002
Installation manual en-GB, es-ES, fr-FR, de-DE, el-GR, it-IT, nl-NL, pt-PT 2010-03-24
PDF1,14 MB -

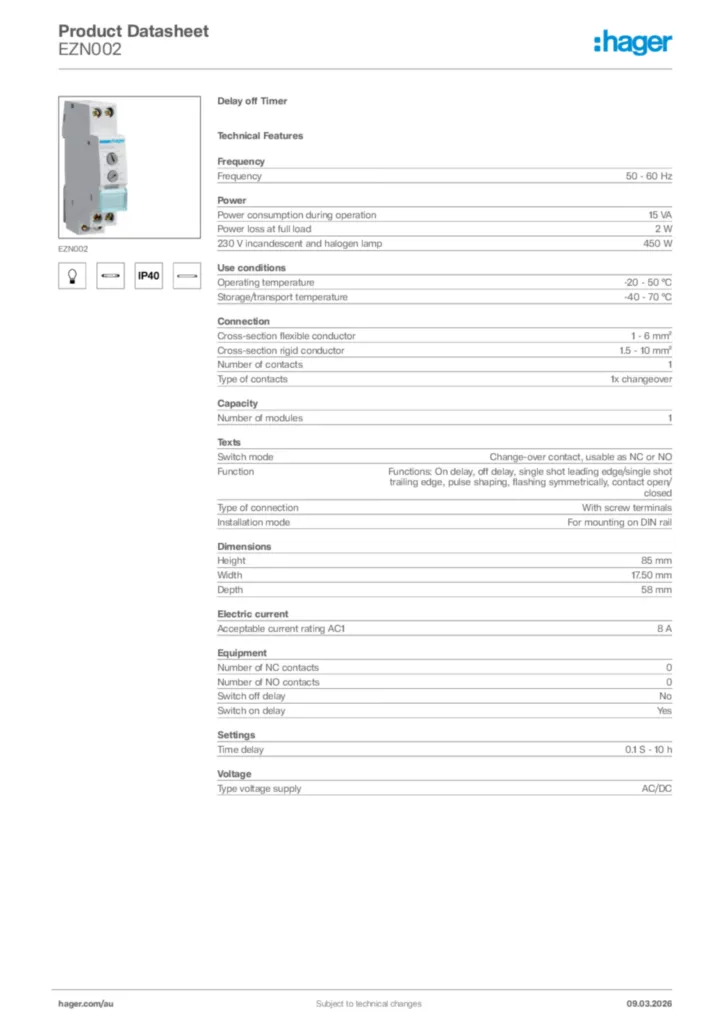

Product data sheet
UK_MD_TDS_DelayTimers.pdf
Product data sheet en-GB 2016-01-06
PDF49,75 kB
