Weekly time switch 1 channel, 1 module EG071
EAN
3250612270712
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable.
Technical properties
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 50 Hz
Power
-
230 V incandescent and halogen lamp1000 W
Functions
-
Power reserve in years3 y
-
With network synchronisationNo
-
With quartz synchronisationYes
-
Number of function channels1
Equipment
-
Accuracy per day60 s
-
With impulse programmeNo
-
Number of channels1
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 4 mm²
Settings
-
Daily programmeNo
-
Weekly programmeYes
-
Annual programmeNo
Use conditions
-
Operating temperature-10 - 50 °C
Texts
-
Type of connectionWith screw terminals
Dimensions
-
Height92 mm
-
Width18 mm
-
Depth64 mm
Capacity
-
Number of modules1
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Downloads
-
Product image
-
Product datasheet

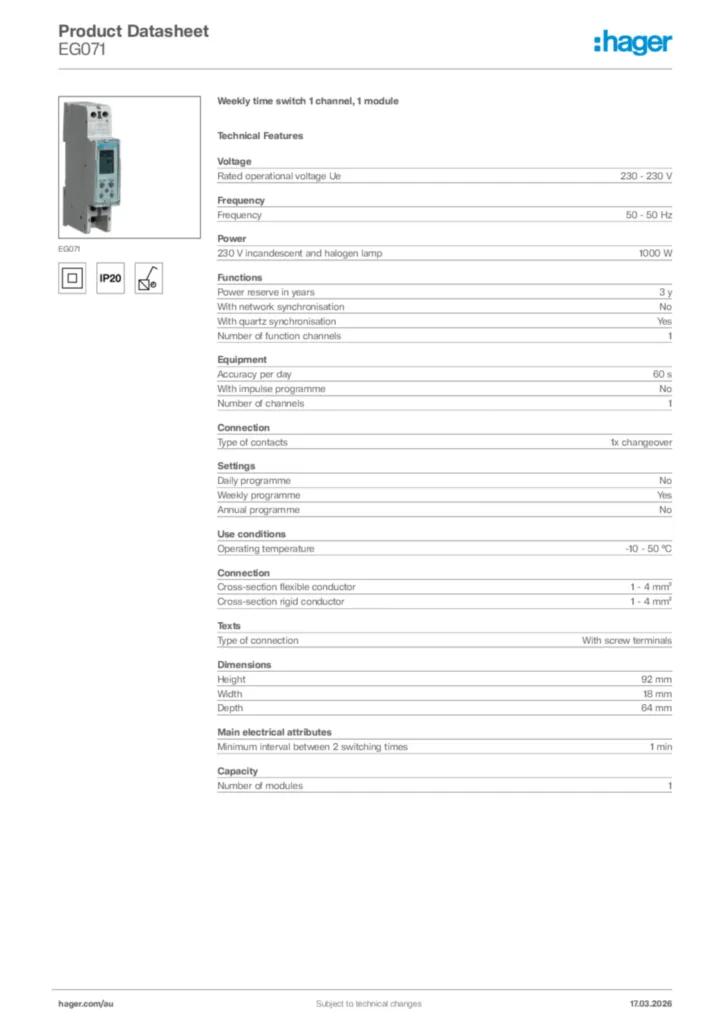

Hager Product data sheet EG071
