24 Hour Time Switches

Daily time switch 1 channel, 1 module EG010

EAN

3250612270101

Packaging

1 Piece

Technical properties
Documentations

Download the data sheet

Technical properties

Number of function channels

1

Switch mode

change-over contact
Number of modules

1

Indication / display

LC display

Rated operational voltage Ue

230 V
Frequency

50 Hz

Operating voltage

230 V~

Depth of installed product

64 mm
Height of installed product

92 mm
Width of installed product

18 mm
Width of rail mounted device (RMD)

1 modules

Power consumed

1 VA
Total power loss under IN

1 W
Loss power at full load

≈ 1 W
Power dissipation per coil

1 W

Running accuracy

± 1 s/day

Power reserve [years]

≈ 3 a
Battery / storage battery

with lithium coin cell battery type: CR1632
Charging time of the power reserve in hours

0

Max. power with incandescent lamps

1000 W
230 V incandescent lamps and halogen lamps

max. 1000 W

Mounting type

din-Rail
Installation mode

for mounting on DIN rail

Connection cross-sect. flexible conductor

1 / 4mm²
Connection cross-sect. rigid cable

1 / 4mm²
Conductor cross-section (flexible)

1…4 mm²
Conductor cross-section (rigid)

1…4 mm²
Number of contacts

1
Type of contacts

1 changeover
Type of connection

with screw terminals
Contact

with potential-free switching contact
Type of connection

with screw

Number of program steps

6
Summer / Winter time change

manual
Shortest switching time

1 mn
Type of programming

digital
Program cycles

Programme cycle: 24 hours
Programming cycle

24H

Number of channels

1
Number of switching times for on/off

6
Supply failure reserve

3 years
With holidays program

No

Cycle

daily

Operating temperature

-10…50 °C
Working accuracy

1
Storage/transport temperature

-10…60 °C

Downloads

Product image

Product Image EG010
Instruction manual

Instruction manuals for EG010

PDF

1 MB

Programmateur 1 voie EG 010

PDF

586 KB

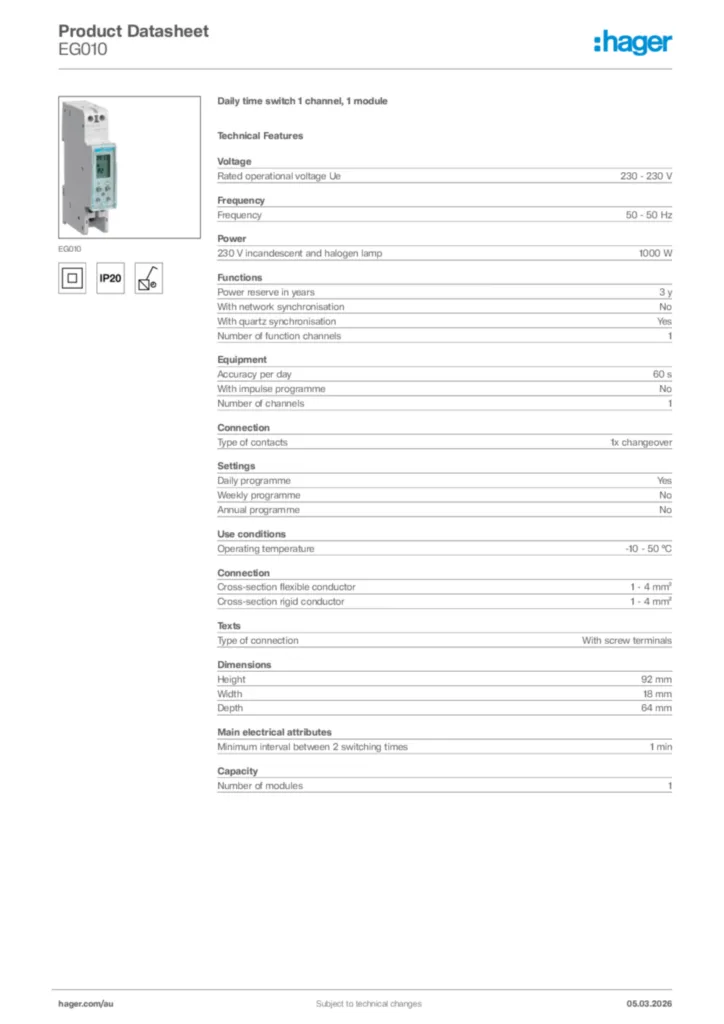

Product data sheet
