EE811 - Presence detector 360°, 2 channels, flush mounted, white
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
EE811 - Presence detector 360°, 2 channels, flush mounted, white
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia
Image EE811 of the product Hager Australia | Hager Australia

Presence detector 360°, 2 channels, flush mounted, white EE811

EAN
3250612258116
Packaging
1 Piece

Technical properties

Main electrical features
  • Rated operational voltage Ue
    230 V
  • Frequency
    50 Hz
Dimensions
  • Width of installed product
    100 mm
  • Recommended installation height
    2.5…3.5 m
Measurement
  • Detection Method
    Passive Infrared
Power supply
  • Supply voltage
    230 V
Detection
  • Detection angle
    360 °
  • Detection angle
    360 °
  • Detection field Ø, on floor
    ≈ 12 m
  • Detection field Ø, at desk height
    ≈ 5 m
  • Frontal detecting distance
    7 m
  • Side detecting distance
    13 m
Materials
  • Colour
    pure white
  • RAL colour
    RAL 9010 - Pure white
  • Material
    plastic
Lighting control
  • Response brightness, adjustable
    ≈ 5…1200 lx
  • Brightness measurement range
    5 / 1200 Lux
Installation, mounting
  • Maximum Mounting Height
    4 m
Settings
  • Response value sensitivity adjustable
    Yes
  • Delay time, adjustable
    ≈ 1…30 mn
Equipment
  • Angle of horizontal detection
    360 °
  • Slewing
    Detector head slewing by 90°
Safety
  • Protection index IP
    IP41
  • Protection class
    isol.class II
Use conditions
  • Operating temperature
    0…45 °C
  • Storage/transport temperature
    -10…60 °C
Identification
  • Application, usage
    Motion detector
  • Main design line
    Motion detectors

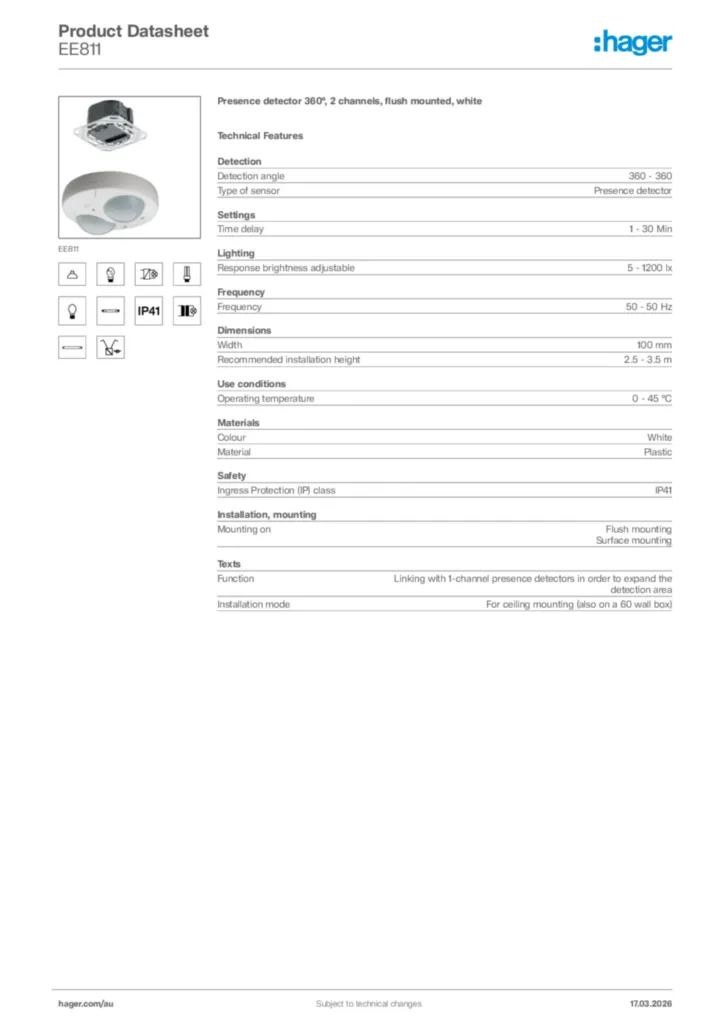

Downloads
