EAN

3250611069546

Packaging

1 Piece

RCBO Electronic 1P 6kA C-25A 30mA A Class 1M ADC325T

No longer available

Accessories
Technical properties
Documentations

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Technical properties

Type of pole

1P
Number of protected poles

1
Curve

C

Rated current IN

25 A
Rated residual operating current Idn

30 mA
Rated current at -25°C

33,43 A
Rated current at -20°C

32,66 A
Rated current at -15°C

31,9 A
Rated current at -10°C

31,13 A
Rated current at -5°C

30,36 A
Rated current at 0°C

29,6 A
Rated current at 5°C

28,83 A
Rated current at 10°C

28,07 A
Rated current at 15°C

27,3 A
Rated current at 20°C

26,53 A
Rated current at 25°C

25,77 A
Rated current at 30°C

25 A
Rated current at 35°C

24,23 A
Rated current at 40°C

23,47 A
Rated current at 50°C

21,94 A
Rated current at 55°C

21,17 A
Rated current at 60°C

20,4 A
Correction factor of rating current for 2 devices placed side by side

0,95
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3

Power dissipation at IN

5,91 W

Frequency

50 - 50 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

16000
Number of mechanical operations

20000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 16 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal

Number of modules

1

Height

92 mm
Width

17,70 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Downloads

Product image

Product Image ADC325T

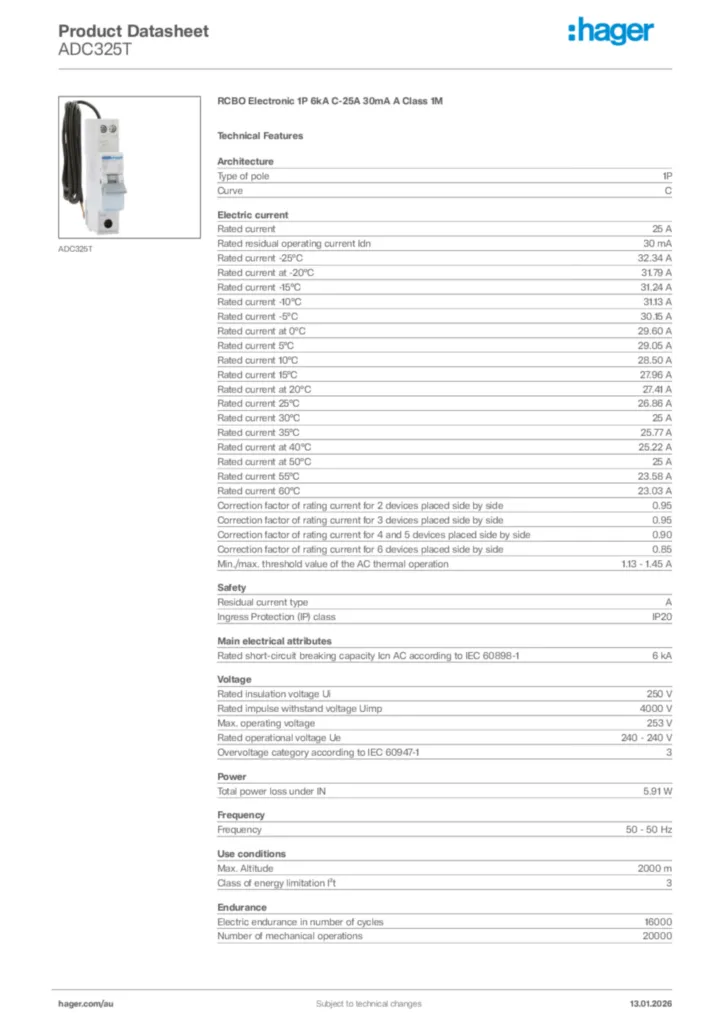

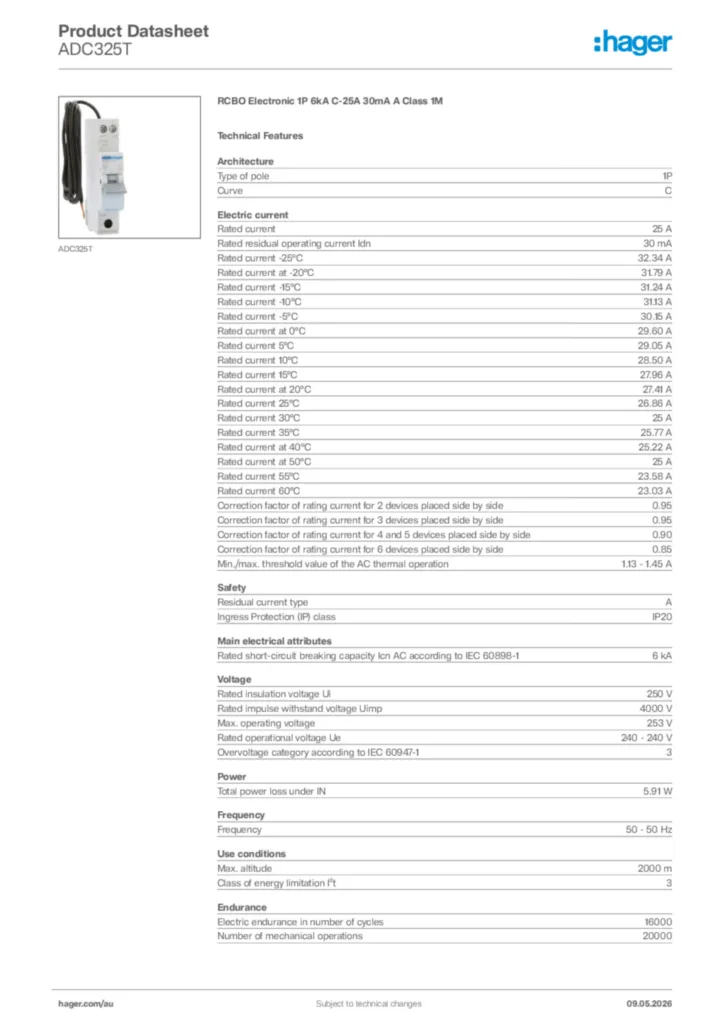

Product datasheet
