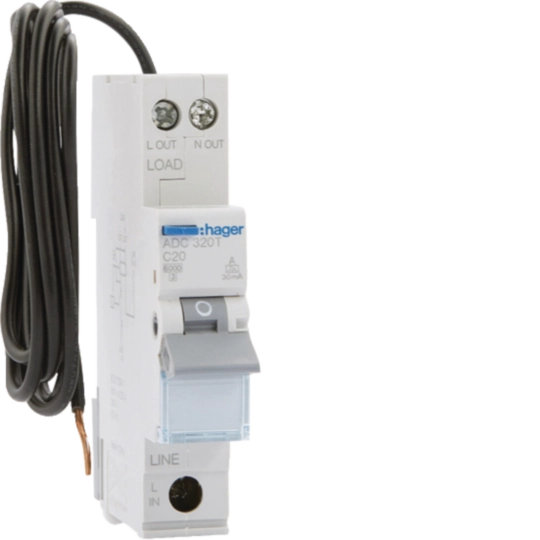

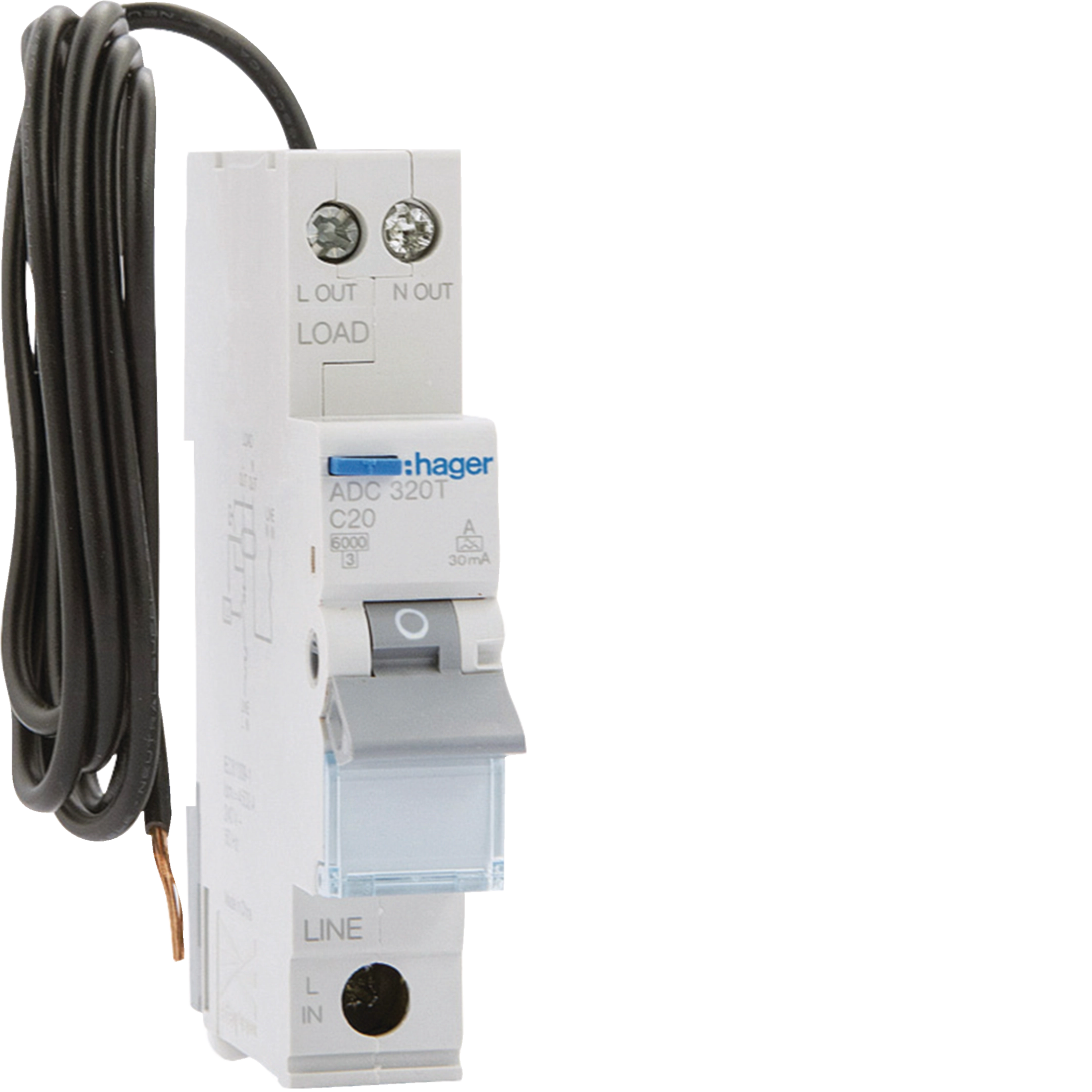

RCBO Electronic 1M 1P 6kA C-16A 30mA A Class ADC316T

EAN

3250611069522

Packaging

1 Piece

No longer available

Accessories
Technical properties
Documentations

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Technical properties

Type of pole

1P
Curve

C

Rated current

16 A
Rated residual operating current Idn

30 mA
Rated current -25°C

20,20 A
Rated current at -20°C

19,80 A
Rated current -15°C

19,50 A
Rated current -10°C

19,10 A
Rated current -5°C

18,80 A
Rated current at 0°C

18,40 A
Rated current 5°C

18 A
Rated current 10°C

17,60 A
Rated current 15°C

17,20 A
Rated current at 20°C

16,80 A
Rated current 25°C

16,40 A
Rated current 30°C

16 A
Rated current 35°C

15,70 A
Rated current at 40°C

15,40 A
Rated current at 50°C

14,80 A
Rated current 55°C

14,50 A
Rated current 60°C

14,20 A
Correction factor of rating current for 2 devices placed side by side

0,95
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

6,50 W

Frequency

50 - 50 Hz

Max. Altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 55 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

1000

Number of modules

1

Height

92 mm
Width

17,70 mm
Depth

70 mm

Downloads

Product image

Product Image ADC316T
Product datasheet

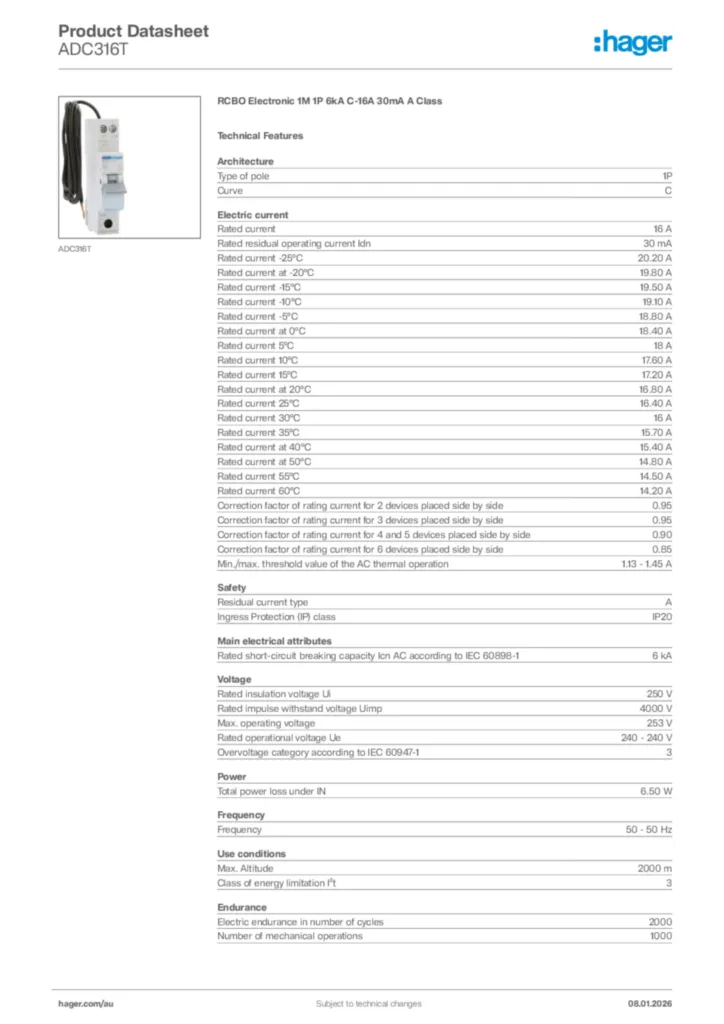

Hager Product data sheet ADC316T
