    • WXT505
    EAN-Nr.
    3250618500523
    Packaging
    1 piece

    Movement detector 180°, KNX, module, 2,20m WXT505

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Movement detector 180°, KNX, module, 2,20m

    WXT505

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Dimen­sions
    • Recom­mended install­a­tion height
      2,20 - 2,20 m
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    • Minimal duty cycle
      10 s
    Func­tions
    • Maximal duty cycle
      30 min
    Connectivity
    • With bus system KNX radio
      No
    Voltage
    • Oper­ating voltage over bus
      21 - 32 V
    Scope of delivery
    • Bus connec­tion included
      Yes
    Elec­tric current
    • Bus current consump­tion data transfer
      10 mA
    Lighting
    • Response bright­ness adjustable
      5 - 1000 lx
    Detec­tion
    • Detec­tion angle adjustable
      45 - 90 °
    • Detec­tion angle hori­zontal
      90 - 180
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Mater­ials
    • Material
      Ther­mo­plastic
    Texts
    • Push button
      With button for auto­mat­ic/per­manent ON/per­manent OFF
    • Oper­ating mode
      With 3 oper­ating modes: auto­mat­ic/per­manent ON/per­manent OFF
    • Func­tion
      Pres­ence simu­la­tion, With party func­tion
    • Install­a­tion mode
      With spreader claws, With dismant­ling protec­tion

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    Hager REACH declaration WXT505
    PDF

    Downloads

    • Image WXT505 | Hager

      Product Image WXT505

    • Product datasheet

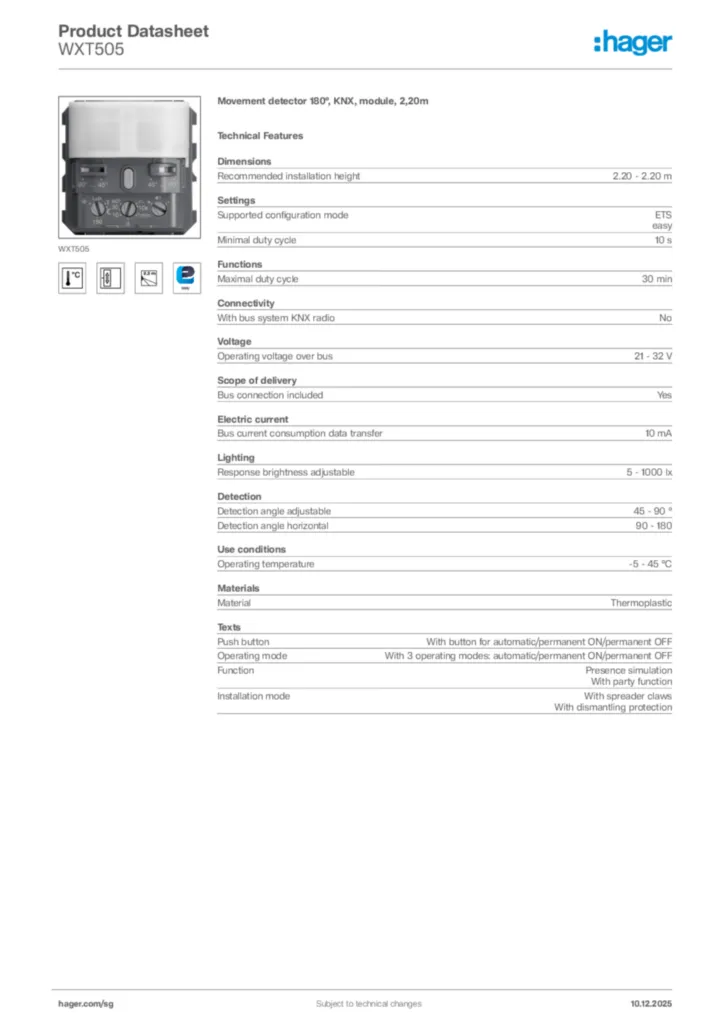

      Image Hager Product data sheet WXT505 | Hager

      Hager Product data sheet WXT505

      Movement detector 180°, KNX, module, 2,20m

      PDF

    • Installation manual

      Image Manual for WXT501-WXT505 -KNX Motion detector modul 1,10 m/2,20 m(FR-EN, 2018-12) | Hager

      Manual for WXT501-WXT505 -KNX Motion detector modul 1,10 m/2,20 m(FR-EN, 2018-12)

      Installation manual en-GB, fr-FR 2018-12-05

      PDF
      1,54 MB

    • KNX product database

      Image ETS Database for WXT50x | Hager

      ETS Database for WXT50x

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01

      KNXPROD
      276,46 kB

    • Application Guide

      Image Application description ETS for KNX motion detecter modul V1.0 (EN, 2019-02) | Hager

      Application description ETS for KNX motion detecter modul V1.0 (EN, 2019-02)

      Application Guide en-GB 2019-02-22

      PDF
      5,69 MB

    • Declaration of conformity

      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-05-04

      PDF
      255,39 kB
