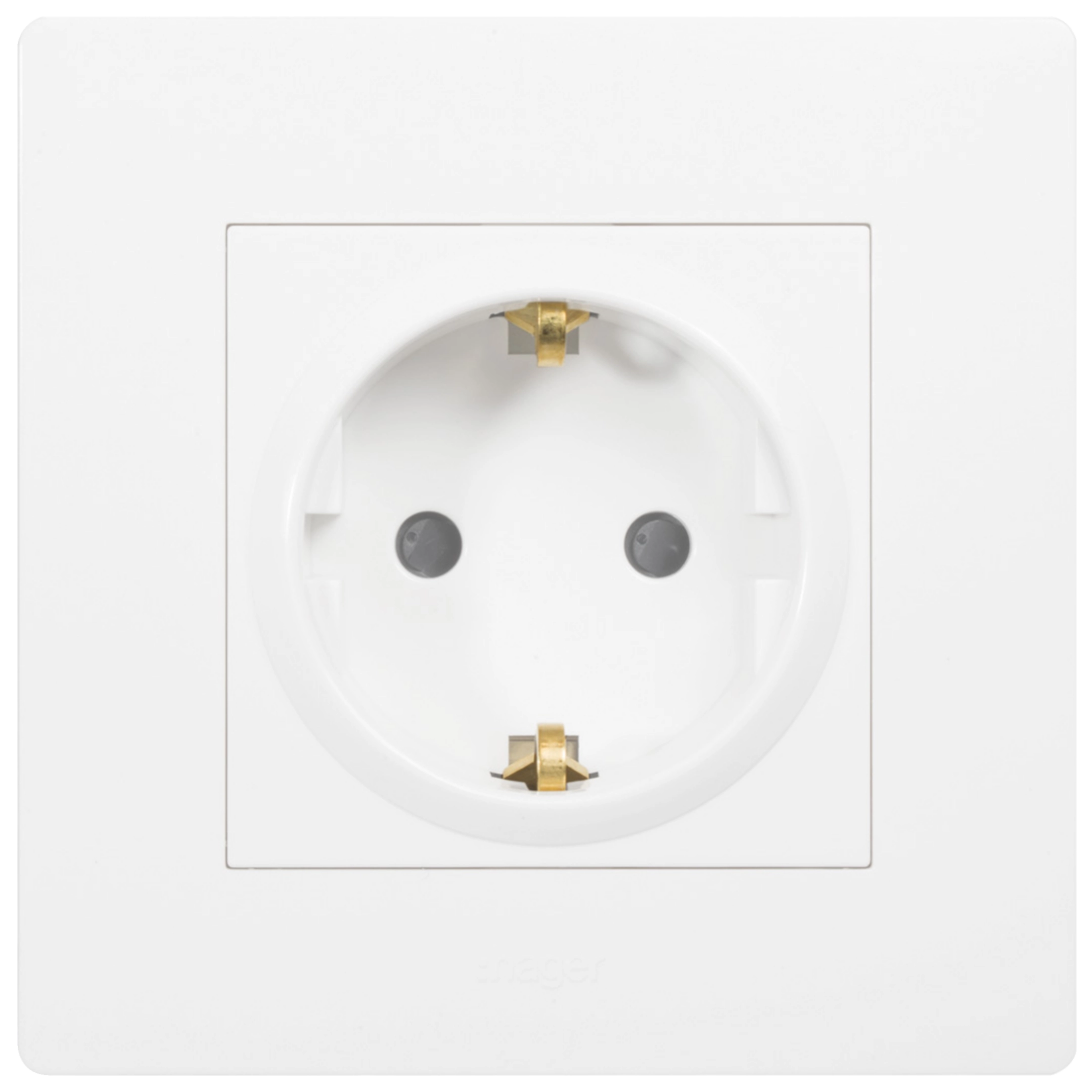

16A GERMAN SOCKET W/SHUTTER WGMS116S

EAN-Nr.
3250617507943
Packaging
8 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

16A GERMAN SOCKET W/SHUTTER

WGMS116S

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Complete your system

Compatible products

  • Referenced by 1 products available

Referenced by

  • WGMCV1

    1 GANG FRAME
    0.00 €  / *

Technical characteristics

Elec­tric current
  • Rated current
    16 A
  • Output current
    0
Voltage
  • Rated voltage
    250 V
  • Nominal voltage
    220-250 V
  • Output voltage
    0-0 V
Frequency
  • Frequency
    50 - 60 Hz
Power
  • Output power
    0
  • Power consump­tion standby
    0
Mater­ials
  • Colour
    White
  • Surface finish
    Glossy
  • Material
    Polycar­bonate (PC)
  • Treat­ment
    Untreated
  • Contains recycled material (% of total plastic weight)
    0
Dimen­sions
  • Height
    40 mm
  • Width
    86 mm
  • Depth
    30 mm
  • Built-in depth flush-­mounted boxes
    35 mm
  • Built-in depth
    30 mm
Connec­tion
  • Connect­or/plug type
    British Standard
  • Cross-sec­tion flex­ible conductor without wire end sleeve
    0,08 - 4 mm²
Install­a­tion, mounting
  • Mounting on
    Flush mounting
  • Mount­ing-/­Con­nec­tion Posi­tion
    Back
Connectivity
  • Type of connec­tion
    Screw terminal
  • With claw mounting
    No
  • Mounting type
    Screw mounting
  • Connect­or/plug type USB
    British Standard
Equip­ment
  • Connect­or/plug type socket outlet
    British Standard
  • Rotated central insert
    No
  • With hinged lid
    No
  • With round protective earth pin
    No
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    No
  • Pre-equipped with
    None
Capa­city
  • Number of modules
    0
Safety
  • With enhanced contact protec­tion
    No
  • Impact resist­ance IK
    IK02
  • Ingress Protec­tion (IP) class
    IP20
Func­tions
  • With orient­a­tion lighting
    No
  • With func­tion lighting
    No
Iden­ti­fic­a­tion
  • With imprint
    No
  • Related Systems
    shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes
Halogen free Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration WGMS116S
PDF
Hager RoHS report WGMS116S
PDF

Downloads

  • Image WGMS116S | Hager

    Product Image WGMS116S

  • Installation manual

    Image Manual for WGMS116SXX-WGCXS116SXX - German socket (EN, 2019-04) | Hager

    Manual for WGMS116SXX-WGCXS116SXX - German socket (EN, 2019-04)

    Installation manual en-GB 2020-01-01

    PDF
    988,65 kB

  • Flyer

    Image Muse selection chart | Hager

    Muse selection chart

    Flyer en-GB 2025-05-21

    PDF
    2,17 MB

  • Catalogue

    Image Muse catalogue | Hager

    Muse catalogue

    Catalogue en-GB 2025-10-28

    PDF
    4,14 MB

  • Declaration of conformity

    Image BOC_CE_CERT_Mounting_rail_IT_EN_04112022 | Hager

    BOC_CE_CERT_Mounting_rail_IT_EN_04112022

    Declaration of conformity en-GB 2022-12-29

    PDF
    92,51 kB
