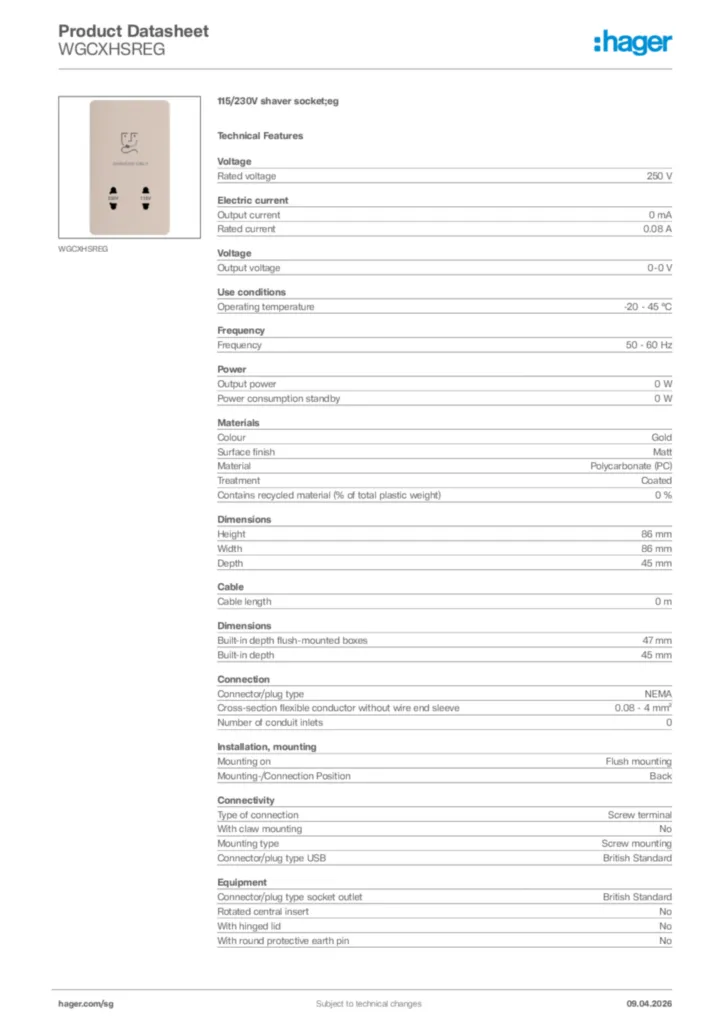

115/230V shaver socket;eg WGCXHSREG

Name: WGCXHSREG
Brand: Hager
SKU: WGCXHSREG

EAN-Nr.

3250617287166

Packaging

1 piece

Stop delivery wo sub This product is now obsolete. However, you can view the following products as replacements or extensions. As the functions of the replacement product are not absolutely identical, please consult your nearest Hager partner if you have any questions.

Technical characteristics
Environmental value
Documentations

Technical characteristics

Rated current

0,08 A
Output current

0

Rated voltage

250 V
Nominal voltage

220-250 V
Output voltage

0-0 V

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

Gold
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

86 mm
Width

86 mm
Depth

45 mm
Built-in depth flush-mounted boxes

47 mm
Built-in depth

45 mm

Connector/plug type

NEMA
Cross-section flexible conductor without wire end sleeve

0,08 - 4 mm²

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
