    • Home
    • Catalogue
    • WGCHRCASV
    EAN-Nr.
    3250617285087
    Packaging
    10 Pieces

    RCA+S-VIDEO socket WGCHRCASV

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    No longer available

    RCA+S-VIDEO socket

    WGCHRCASV

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Complete your system

    Optional accessories

    • Cover frame for domestic switching devices 5 products available

    Complete your system

    • Cover frame for domestic switching devices
    • WGCCH2

      2G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH3

      3G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH4

      4G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH5

      5G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCC1S

      1G frame (square)
      0.00 €  / *

    Technical characteristics

    Connec­tion
    • Connect­or/plug type
      Cinch, S-video
    Frequency
    • Frequency video
      160 MHz
    • Audio frequency
      20 - 20000 Hz
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC)
    Dimen­sions
    • Height
      86 mm
    • Width
      86 mm
    • Depth
      46 mm
    • Built-in depth flush-­mounted boxes
      47 mm
    Connectivity
    • Direc­tion of outlet of data socket
      Back
    • Mounting type
      Screw mounting
    Equip­ment
    • With dust cover
      No
    Safety
    • Ingress Protec­tion (IP) class
      IP20

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager RoHS report WGCHRCASV
    PDF

    Downloads

    • Image WGCHRCASV | Hager

      Product Image WGCHRCASV

    • Product datasheet

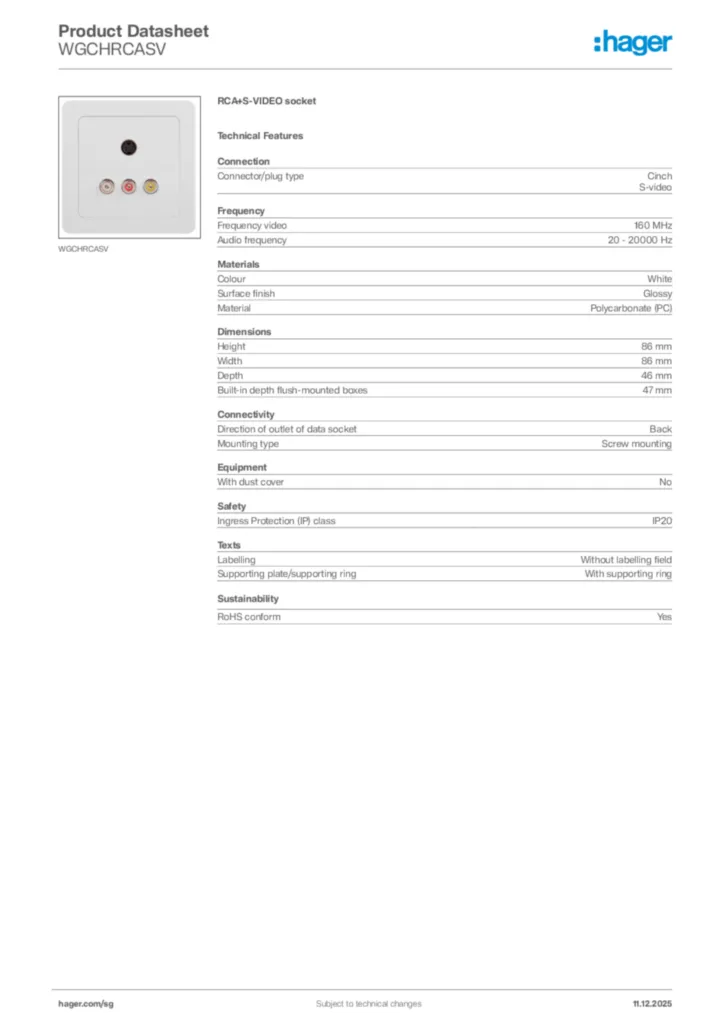

      Image Hager Product data sheet WGCHRCASV | Hager

      Hager Product data sheet WGCHRCASV

      RCA+S-VIDEO socket

      PDF

    • Installation manual

      Image Manual for WGCXHHIXX-RCAXX-USBXX - Multimedia sockets (EN, 2019-04) | Hager

      Manual for WGCXHHIXX-RCAXX-USBXX - Multimedia sockets (EN, 2019-04)

      Installation manual en-GB 2020-01-01

      PDF
      830,85 kB

    • Declaration of conformity

      Image dc22-1050 | Hager

      dc22-1050

      Declaration of conformity en-GB 2022-12-30

      PDF
      164,10 kB
