    • Home
    • Catalogue
    • Energy distri­bu­tion
    • Small distri­bu­tion boards up to 63 A
    • volta enclos­ures
    • VU24NCT
    EAN-Nr.
    3250616614321
    Packaging
    1 piece
    • volta enclos­ures

    Encl.,Volta,flush,2x12MOD,IP30,Version Spain VU24NCT

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Encl.,Volta,flush,2x12MOD,IP30,Version Spain

    VU24NCT

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Lock system 1 products available
    • Cover strip 2 products available
    • Accessor­ies/s­pare parts for terminals 2 products available

    Complete your system

    • Lock system
    • Cover strip
    • Accessor­ies/s­pare parts for terminals
    • VZ302N

      Key lock, Volta, standard, for installation in door handle
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • VZ523

      PE/N-Terminal support, Volta, with brass Terminals 22 connections
      0.00 €  / *
    • VZ524

      PE/N-Terminal support, Volta, with brass Terminals 25 connections
      0.00 €  / *

    Technical characteristics

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      63 A
    Power
    • Maximum power loss per cabinet at ΔT=20K
      17,50 W
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      24
    • Number of half modules terminals per rail
      48
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      505,50 mm
    • Width
      348 mm
    • Depth
      94,50 mm
    • Built-in height
      490 mm
    • Built-in width
      335 mm
    • Built-in depth
      90 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      Yes
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration VU24NCT
    PDF
    Hager RoHS report VU24NCT
    PDF

    Downloads

    • Image VU24NCT | Hager

      Product Image VU24NCT

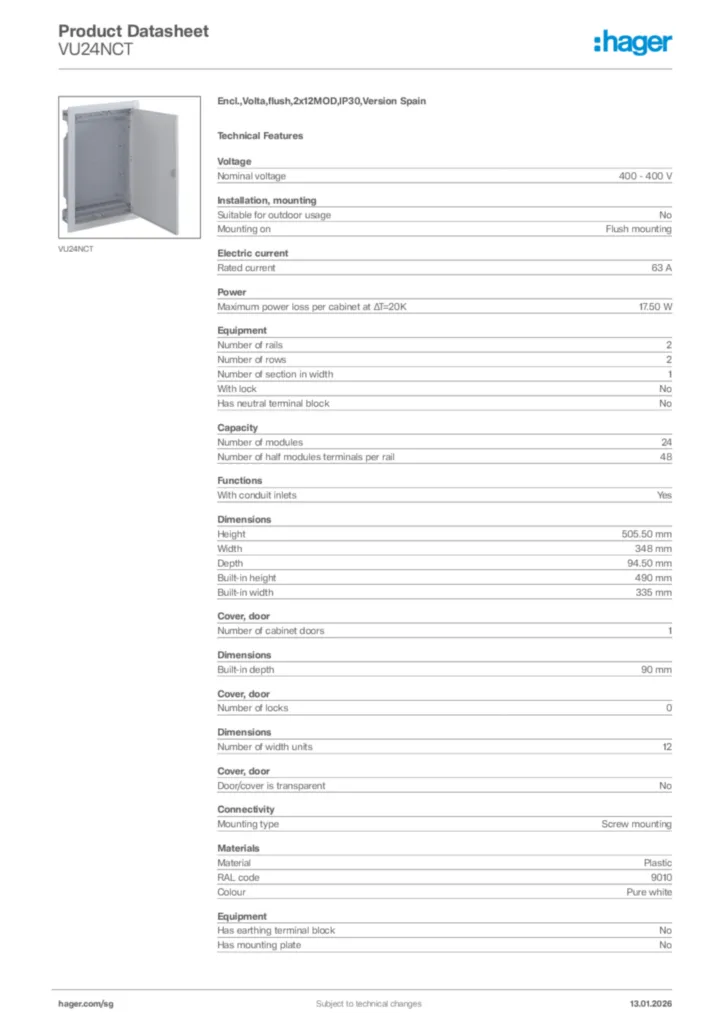

    • Product datasheet

      Image Hager Product data sheet VU24NCT | Hager

      Hager Product data sheet VU24NCT

      Encl.,Volta,flush,2x12MOD,IP30,Version Spain

      PDF

    • Instruction manual

      Image Instruction manual International 2024-11-21 | Hager

      Instruction manual International 2024-11-21

      PDF
      9,98 MB
