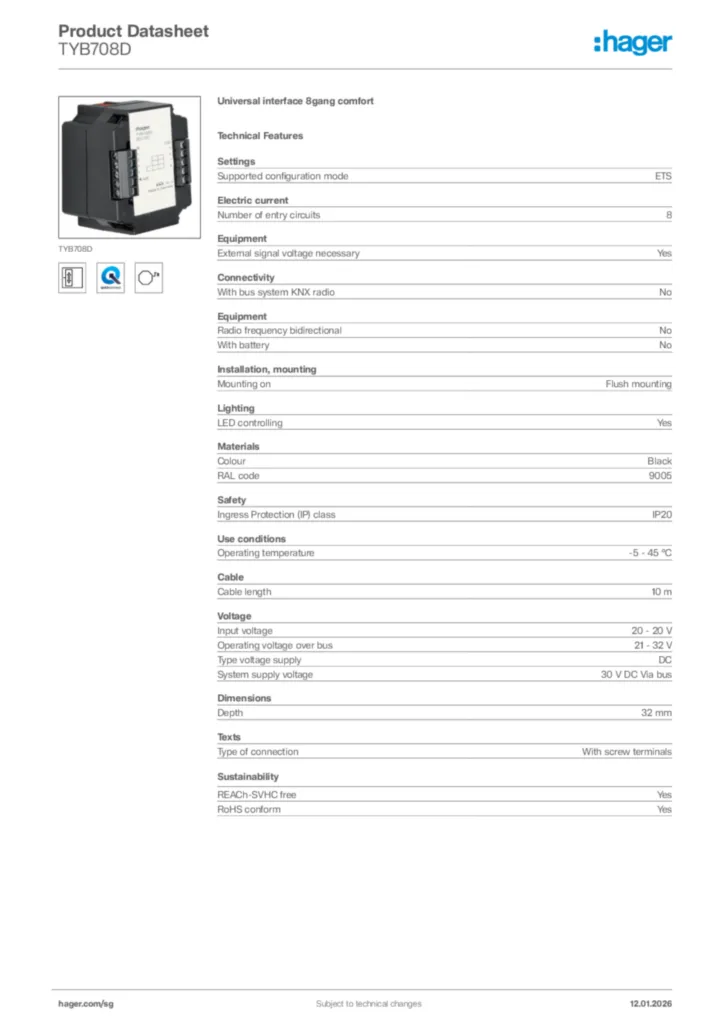

Universal interface 8gang comfort TYB708D
EAN-Nr.
3250616059450
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Settings
-
Supported configuration modeETS
Electric current
-
Number of entry circuits8
Connectivity
-
With bus system KNX radioNo
Equipment
-
External signal voltage necessaryYes
-
Radio frequency bidirectionalNo
-
With batteryNo
Installation, mounting
-
Mounting onFlush mounting
Internal use only
-
Number of half modules of 17,5 mm0
Lighting
-
LED controllingYes
Materials
-
ColourBlack
-
RAL code9005
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Cable
-
Cable length10 m
Voltage
-
Input voltage20 - 20 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyDC
-
System supply voltage30 V DC Via bus
Dimensions
-
Depth32 mm
Texts
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Installation manual
Installation manual en-GB, fr-FR, de-DE, nl-NL, pl-PL 2015-10-26
PDF918,01 kB -
KNX product database
ETS Database for TYB708D
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2023-08-25
VD4111,40 kB -
Application Guide
Application description TYB708D
Application Guide en-GB, pl-PL 2020-01-01
PDF1012,16 kB
